Corvette C5 C6 Super Angle Kit

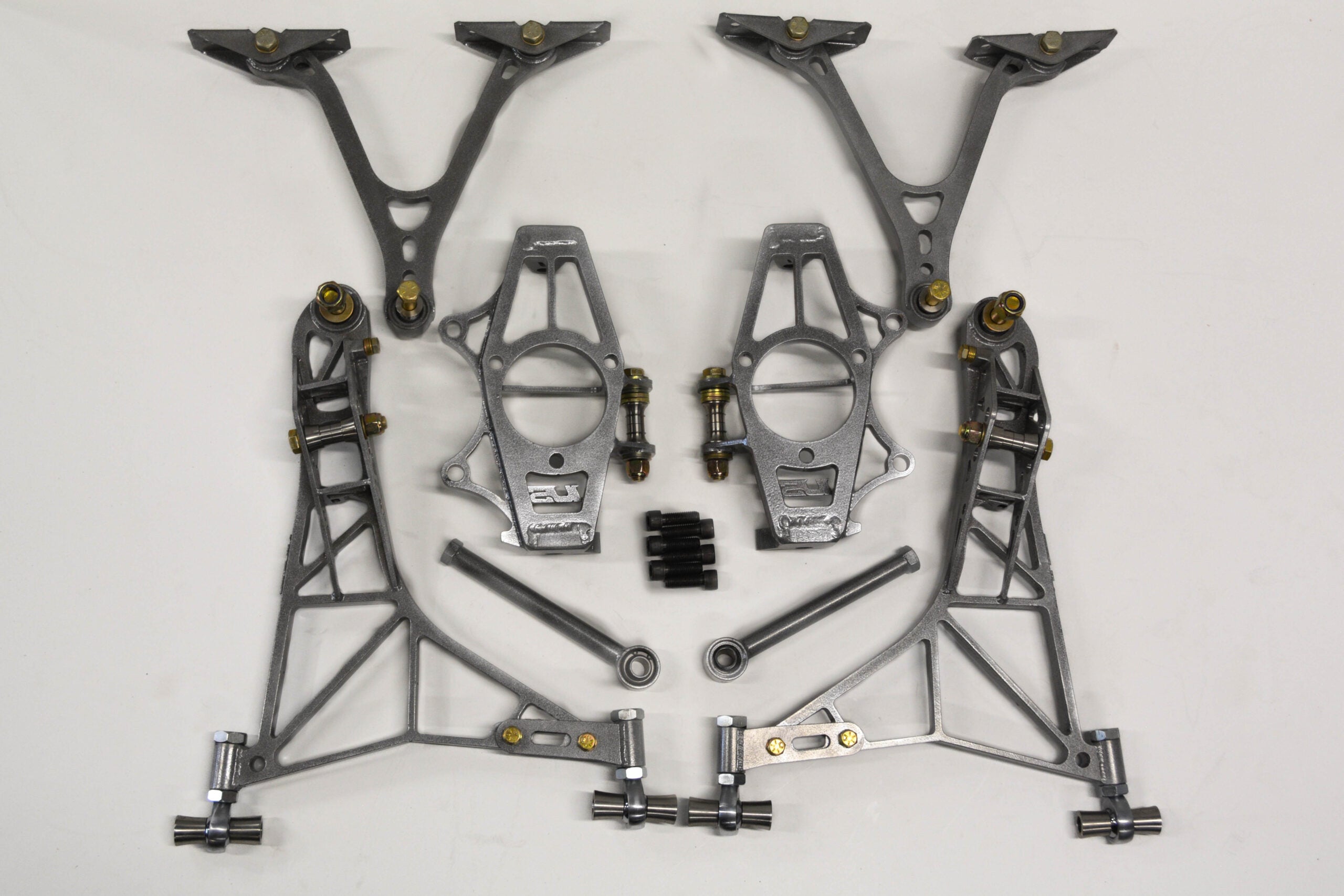

Just Engineering Corvette C5 C6 Super Angle Kit

The Corvette C5 and C6 platforms are widely regarded as some of the best drift chassis ever built. Just Engineering has taken that potential to the next level with their Super Angle Kit, meticulously designed to offer the most reliable and high-performing steering solution on the market. Every component is professionally TIG welded and backed by a lifetime warranty on craftsmanship, ensuring you never have to worry about weld failure during competition or track days.

By focusing on structural integrity and ease of use, Just Engineering has minimized unnecessary hardware and adjustments to keep the system sturdy and efficient. This kit is engineered to provide up to 70 degrees of steering angle while maintaining stability and confidence through a zero-caster trail knuckle design. Whether you are a pro drifter or a weekend warrior, this kit simplifies your setup while maximizing your car's performance.

Key Features

• Maximum Steering Angle: Achieve up to 70 degrees of steering angle with a design optimized for clearance and performance.

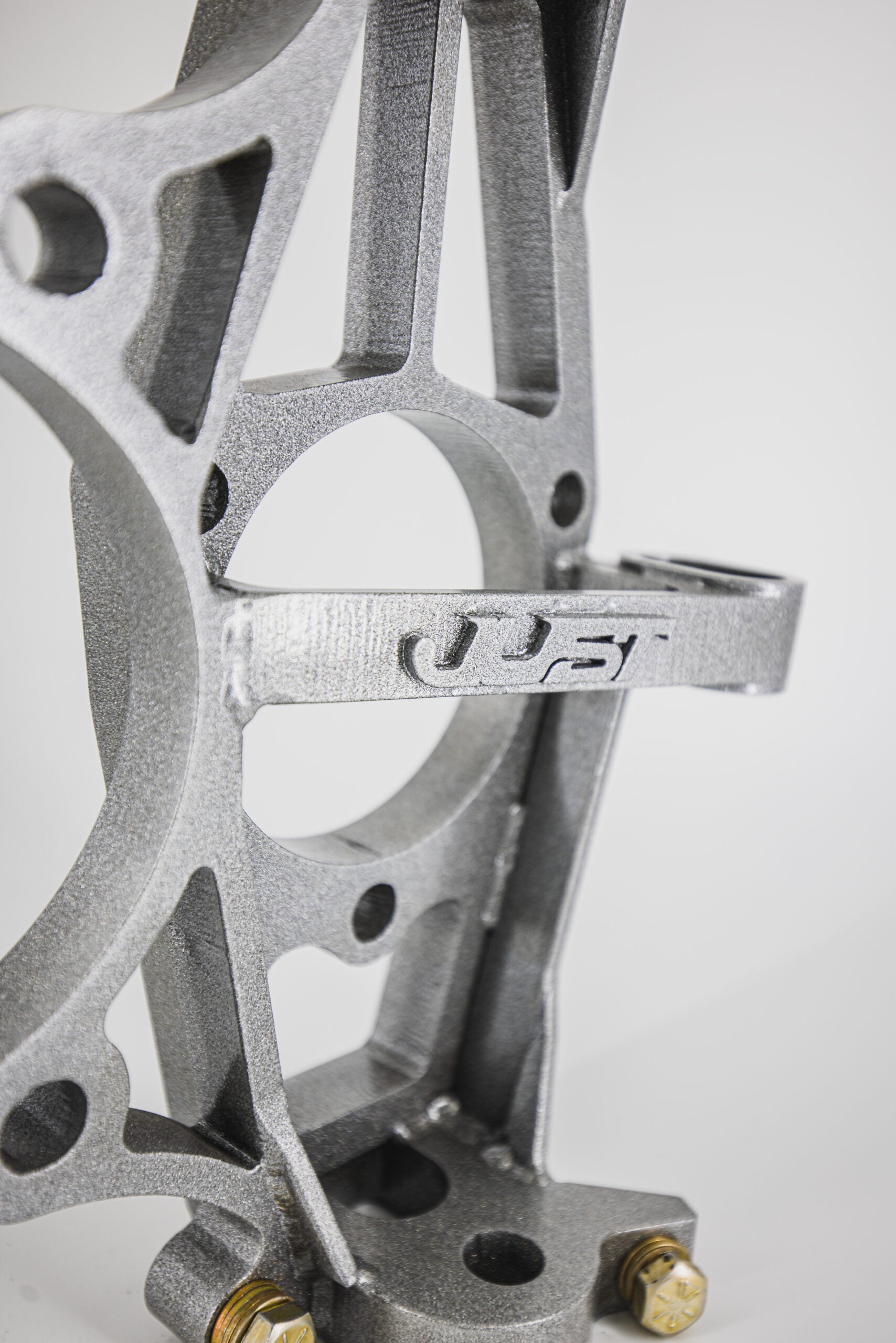

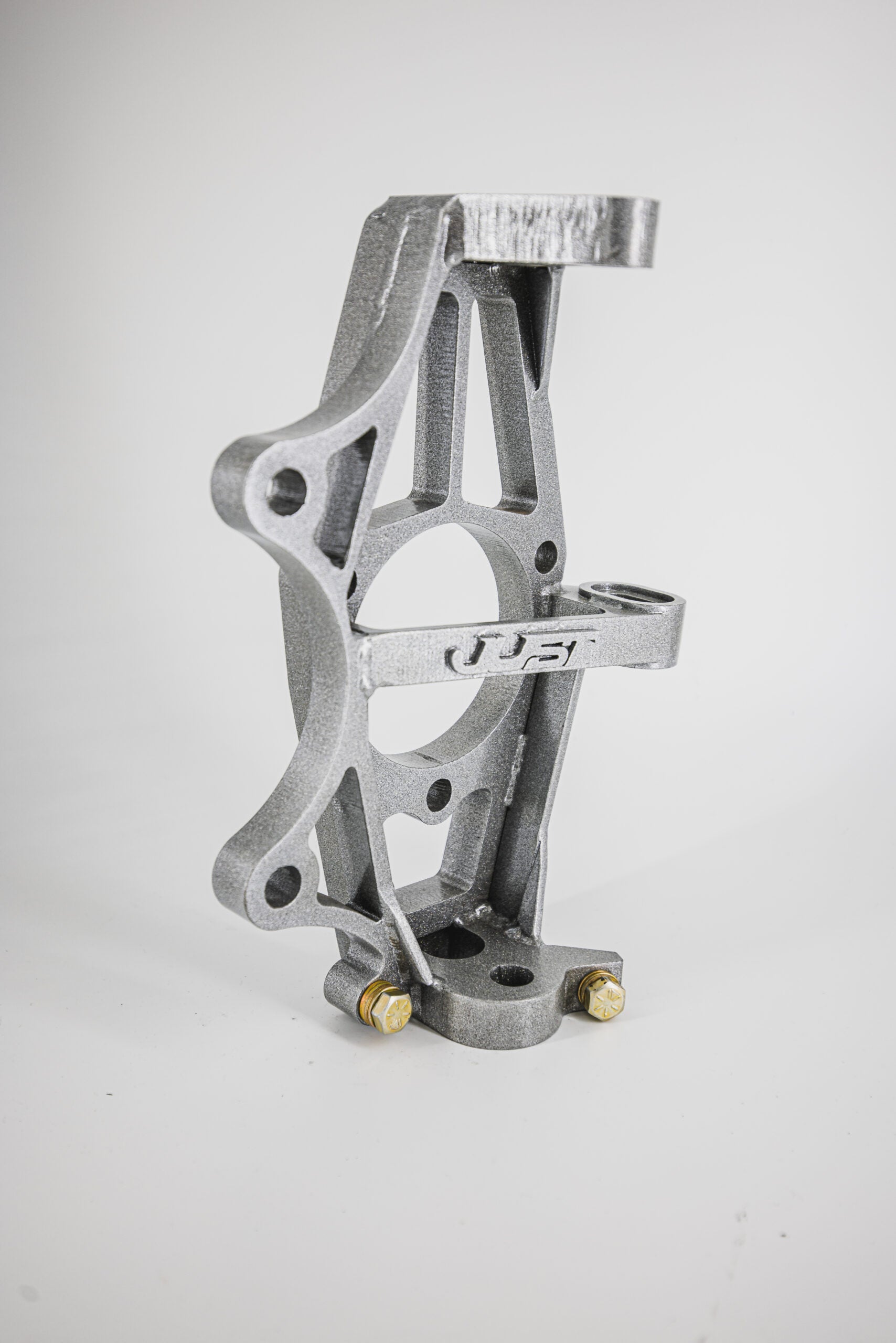

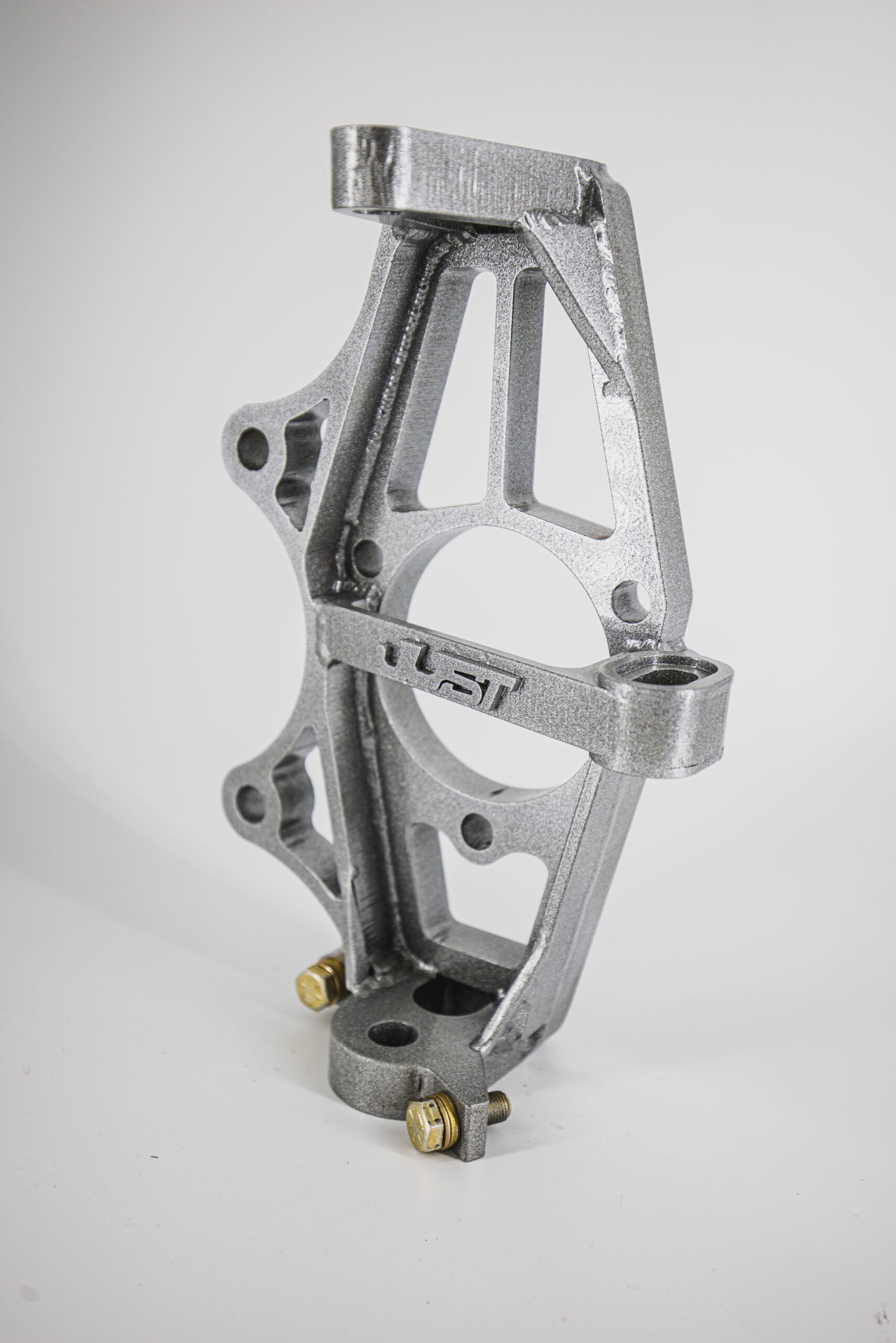

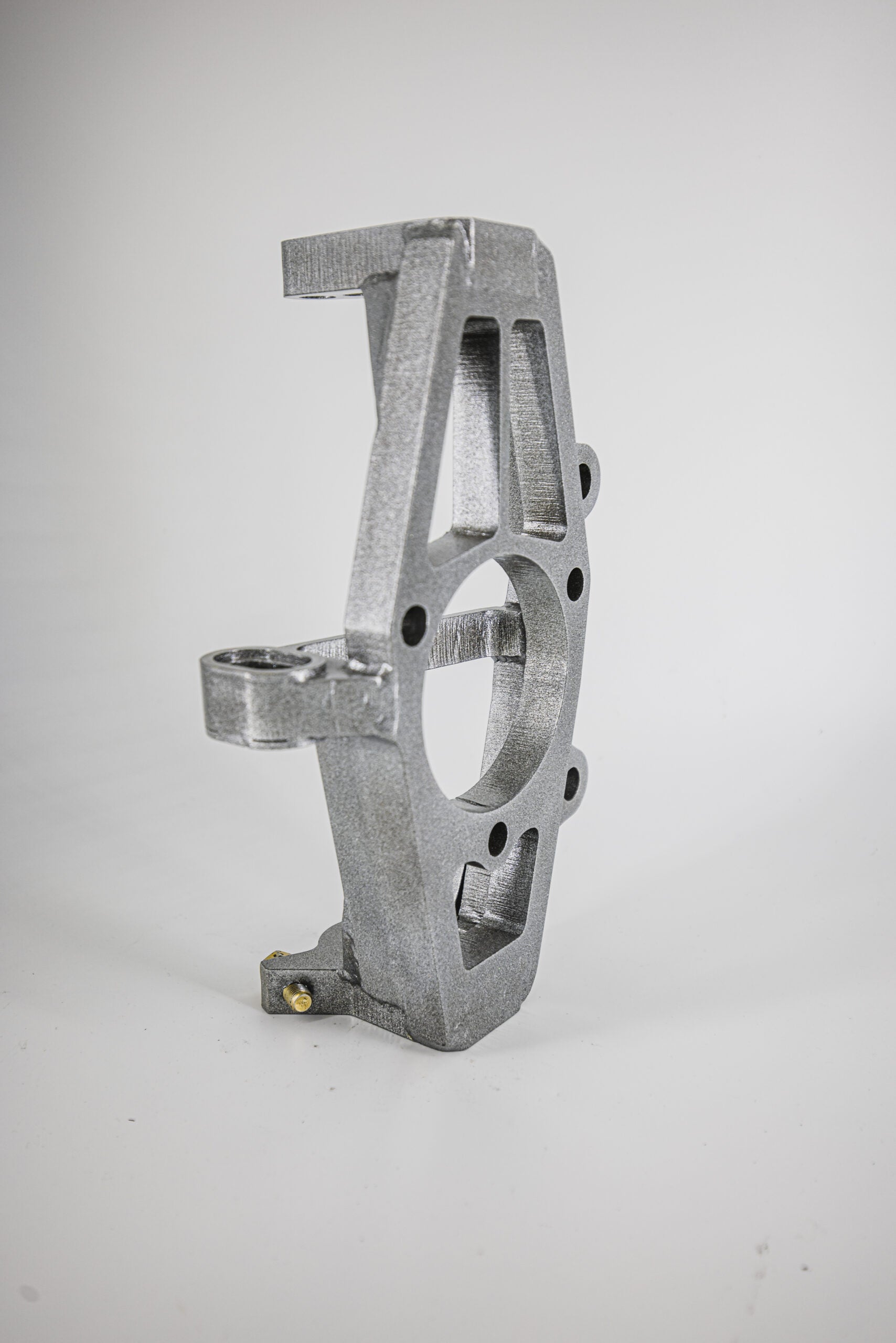

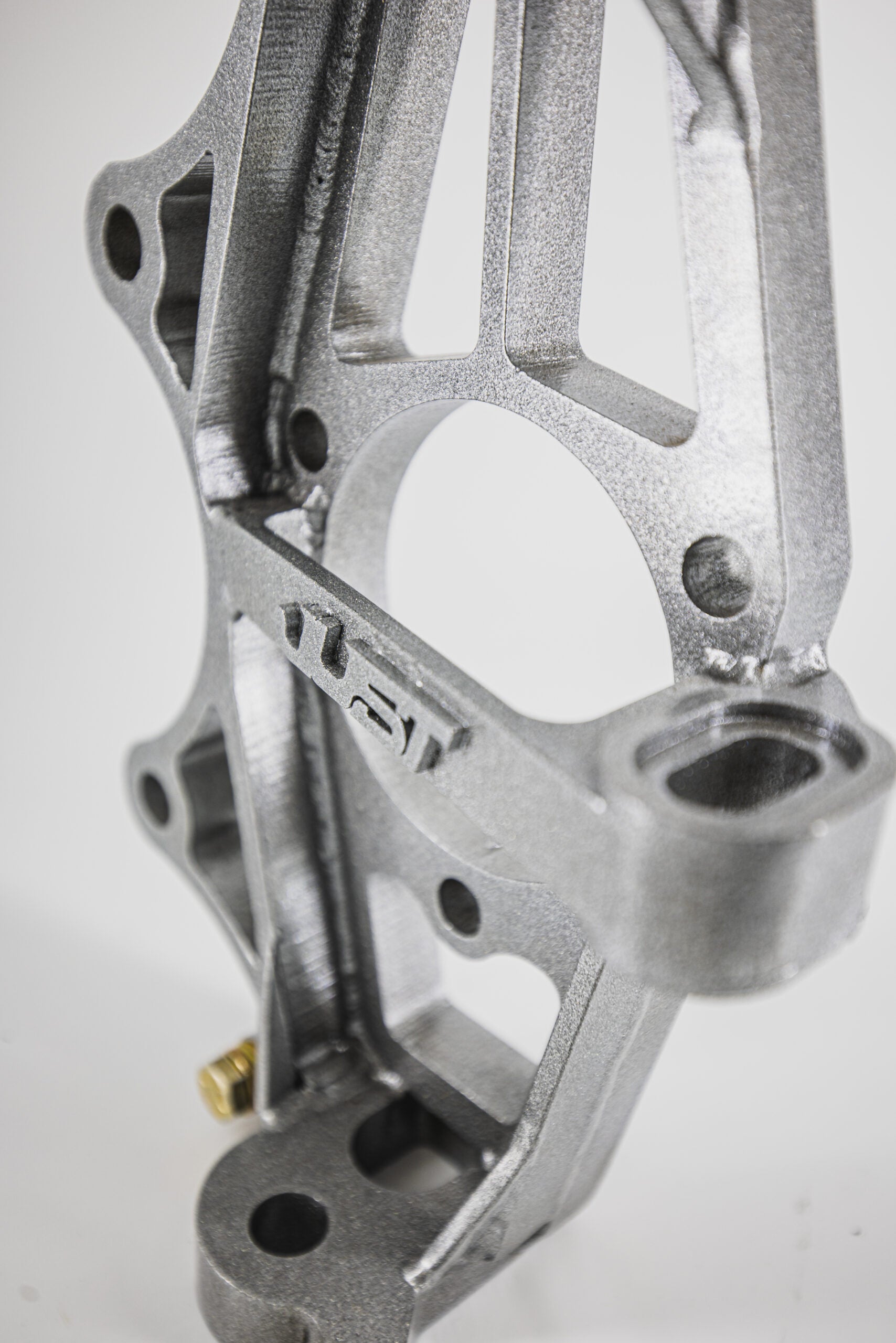

• Zero Caster Trail Knuckles: Designed with a 1” spindle drop to improve lateral roll center and provide a better tire contact patch at high angles.

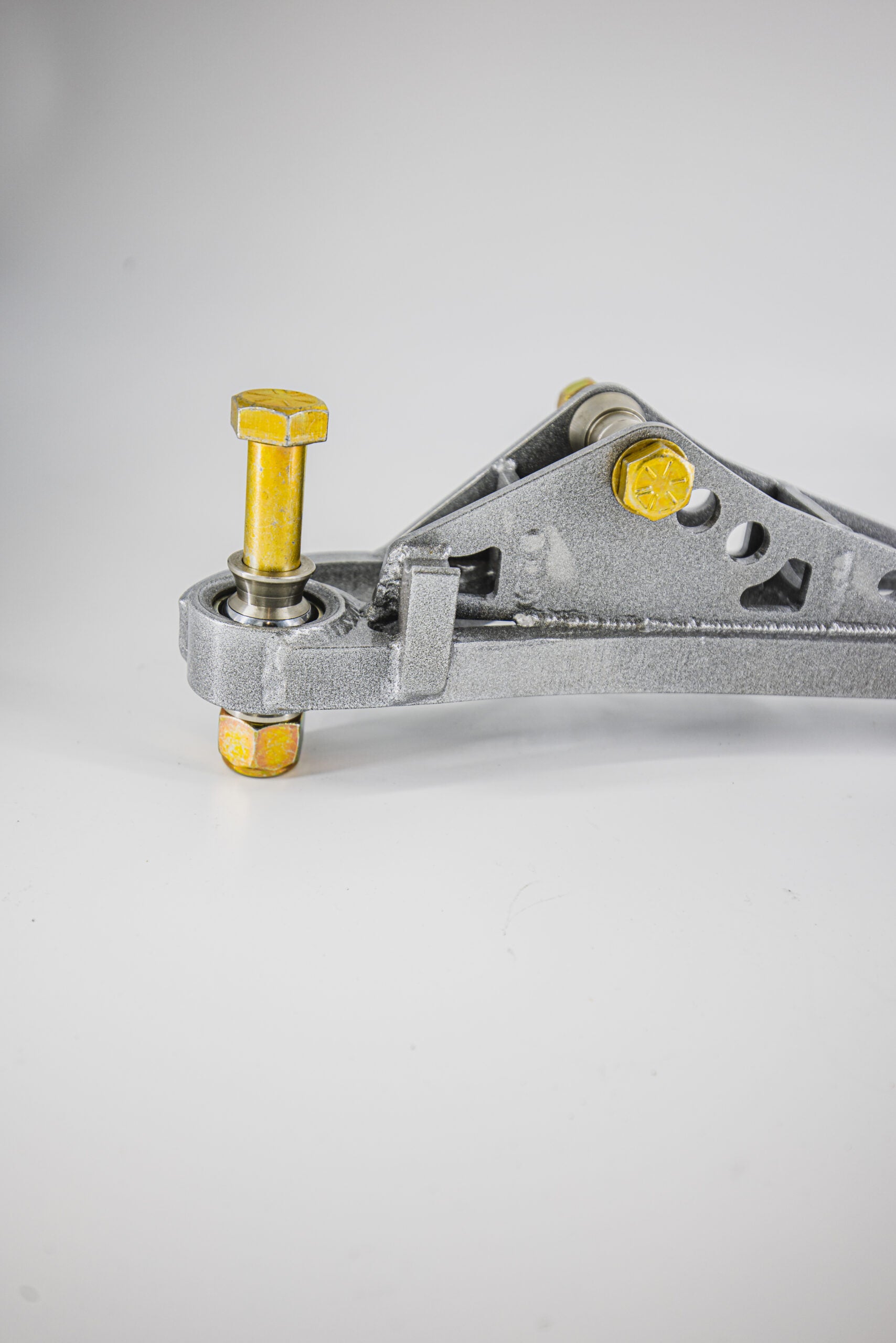

• On-Car Adjustment: Just Engineering’s signature design allows for simultaneous or independent camber and caster adjustments via the LCA without removing it from the mounting points.

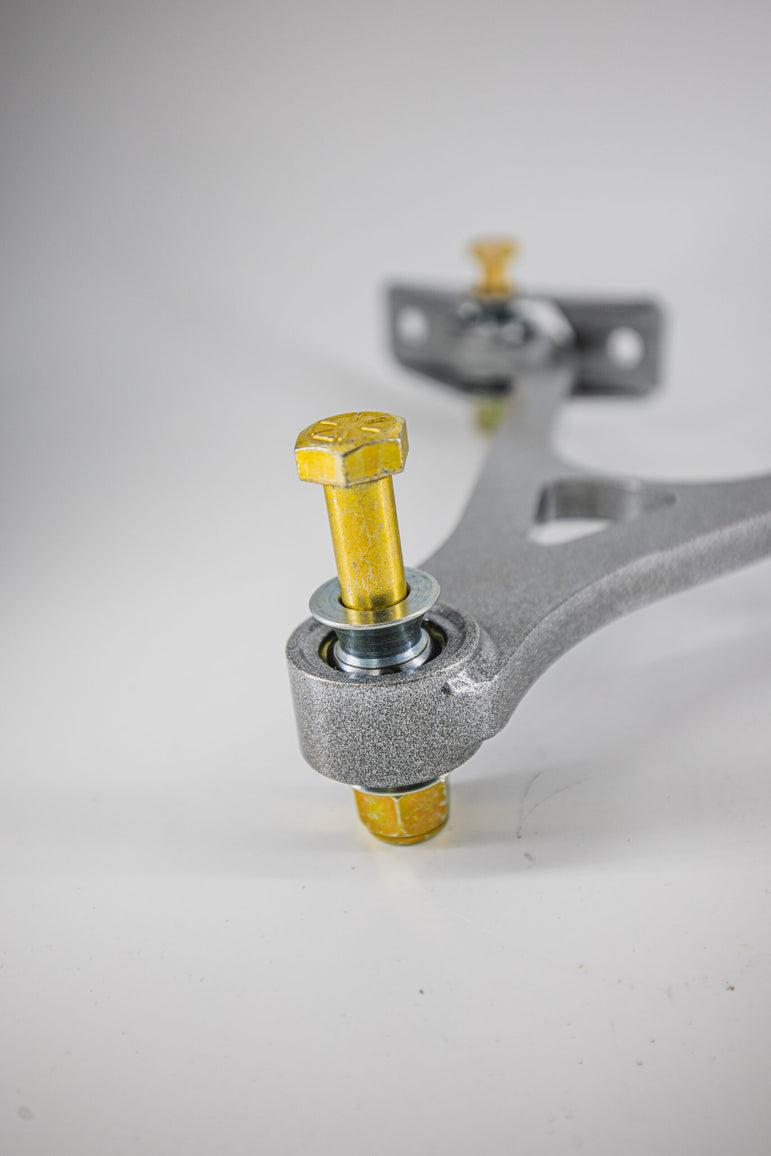

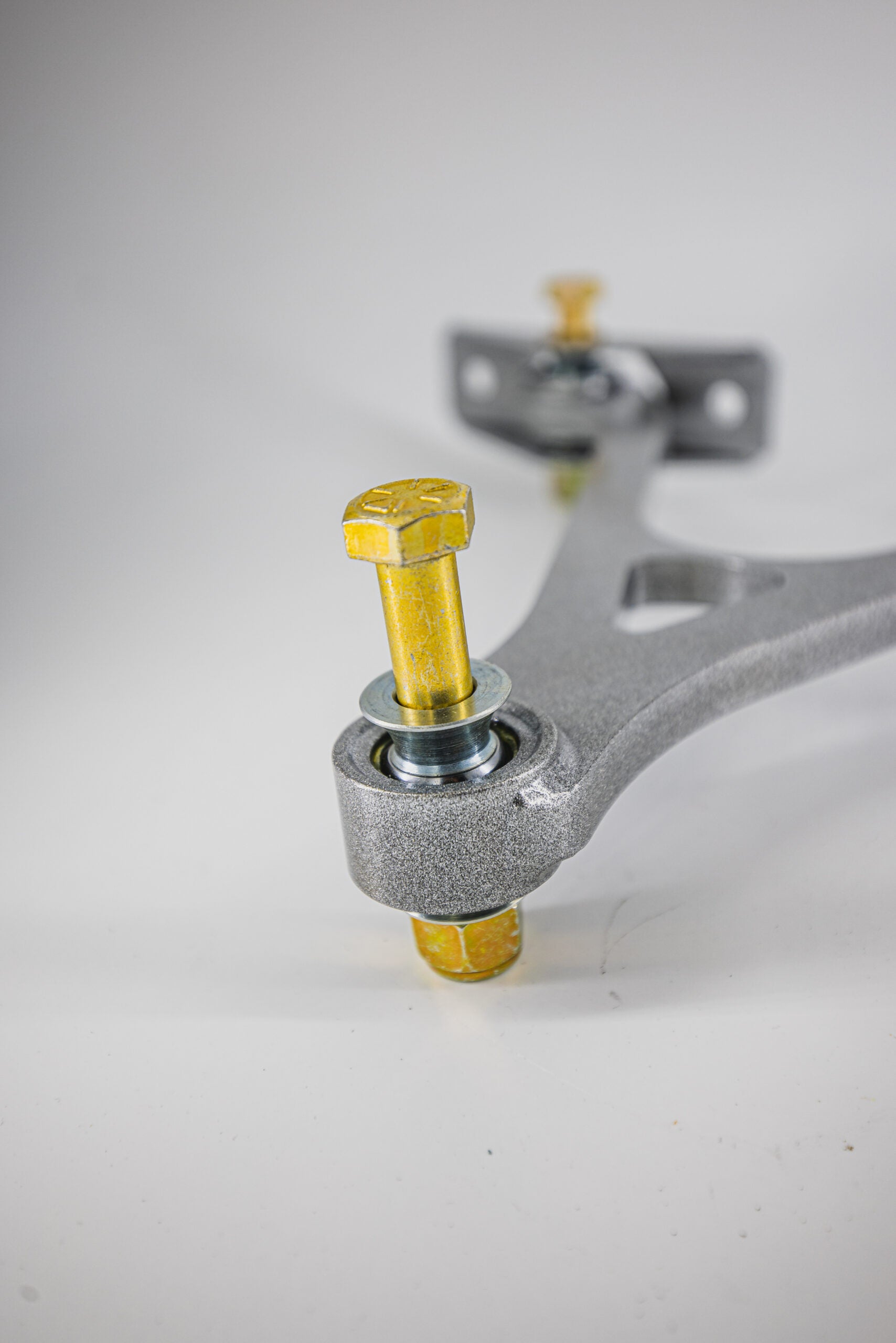

• High-End Hardware: Features COM10T and COM12T spherical bearings and PTFE-lined rod ends for superior strength, longevity, and rigidity compared to standard rod ends.
• Fine-Tuneable Geometry: Includes 11 different Ackermann settings and 1” (25mm) of bump steer adjustment to perfectly dial in your steering feel.
• Optimized Construction: Parts have undergone finite element analysis (FEA) to ensure low weight and high rigidity, utilizing 4130 seamless tubing for tie rods.

Fitment / Applications

• Chevrolet Corvette C5 (1997-2004)
• Chevrolet Corvette C6 (2005-2013)

Notes

• Coilover Requirements: Must be used with coilovers featuring spherical bearings on both upper and lower attachment points. Spacers are included for the lower shock mount.
• Recommended Wheel Setup: 18x8.5 with +12mm offset and 245/40R18 tires. Higher offsets may require bump stop adjustments to prevent arm contact.
• Recommended Spring Rate: 18kg/mm.
• Compatibility: Retains stock inner tie rods and is sway bar compatible.
• Warranty: Includes a lifetime warranty on craftsmanship and TIG welding.
