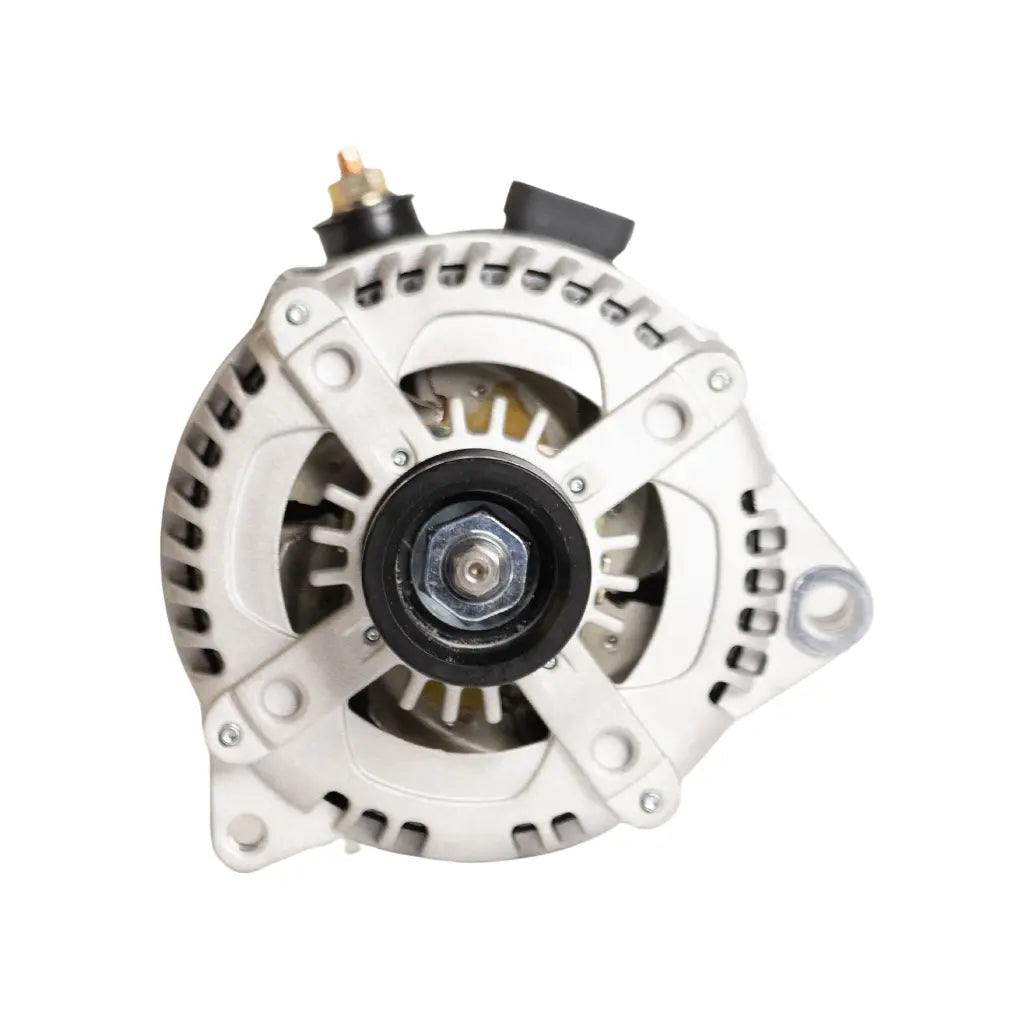

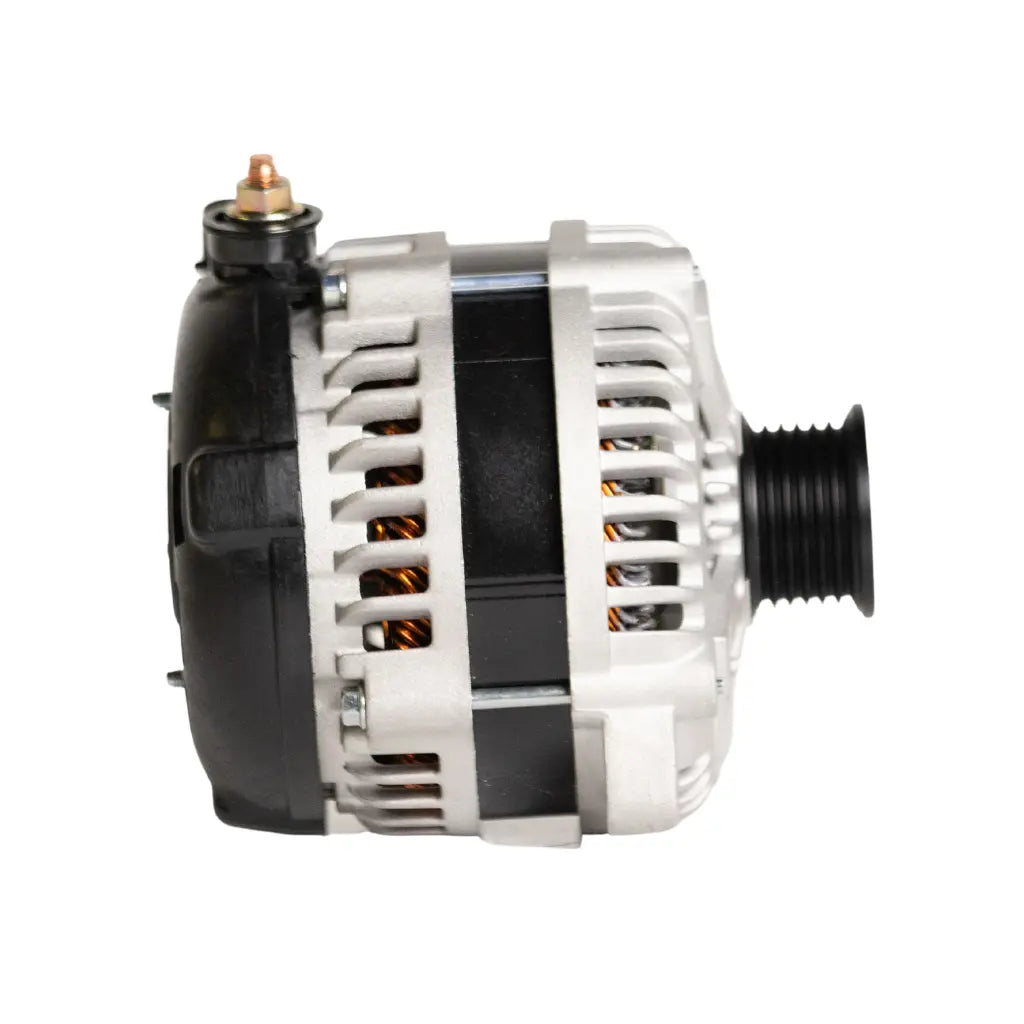

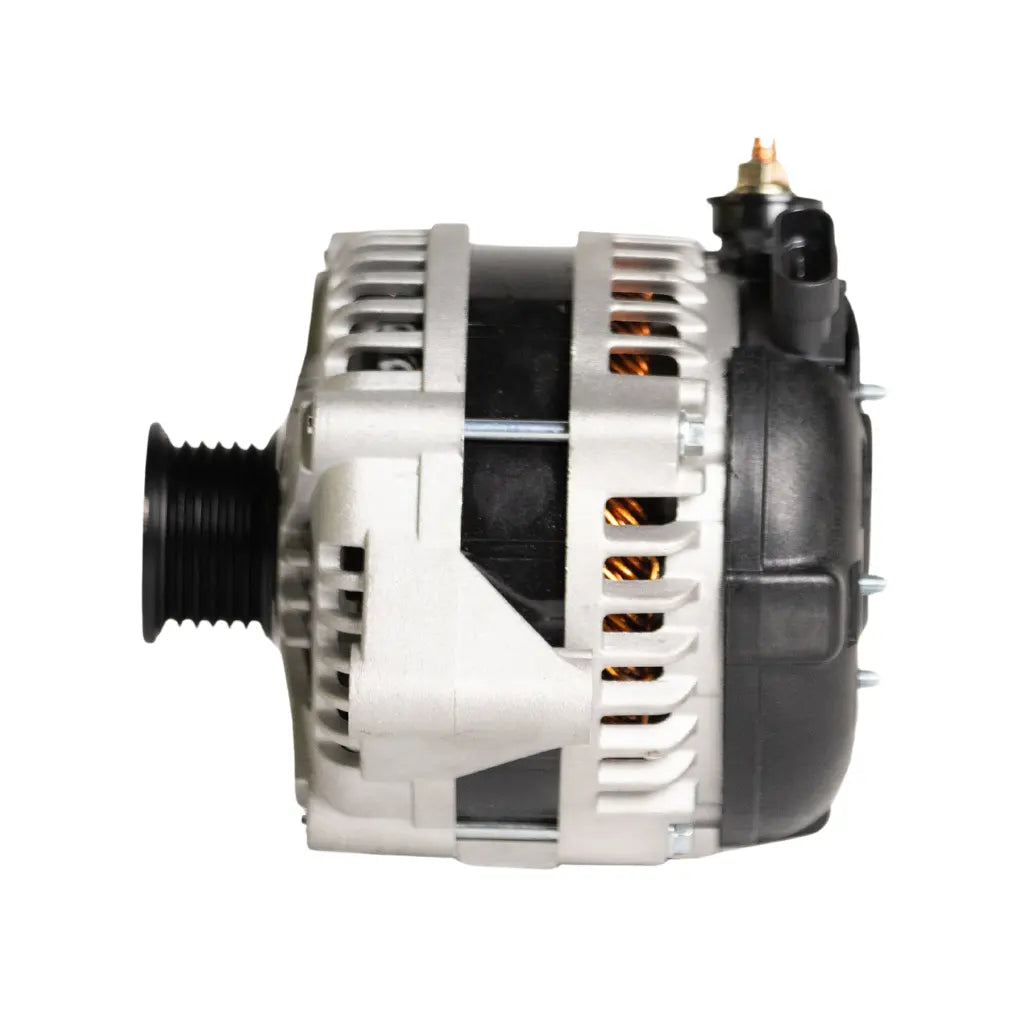

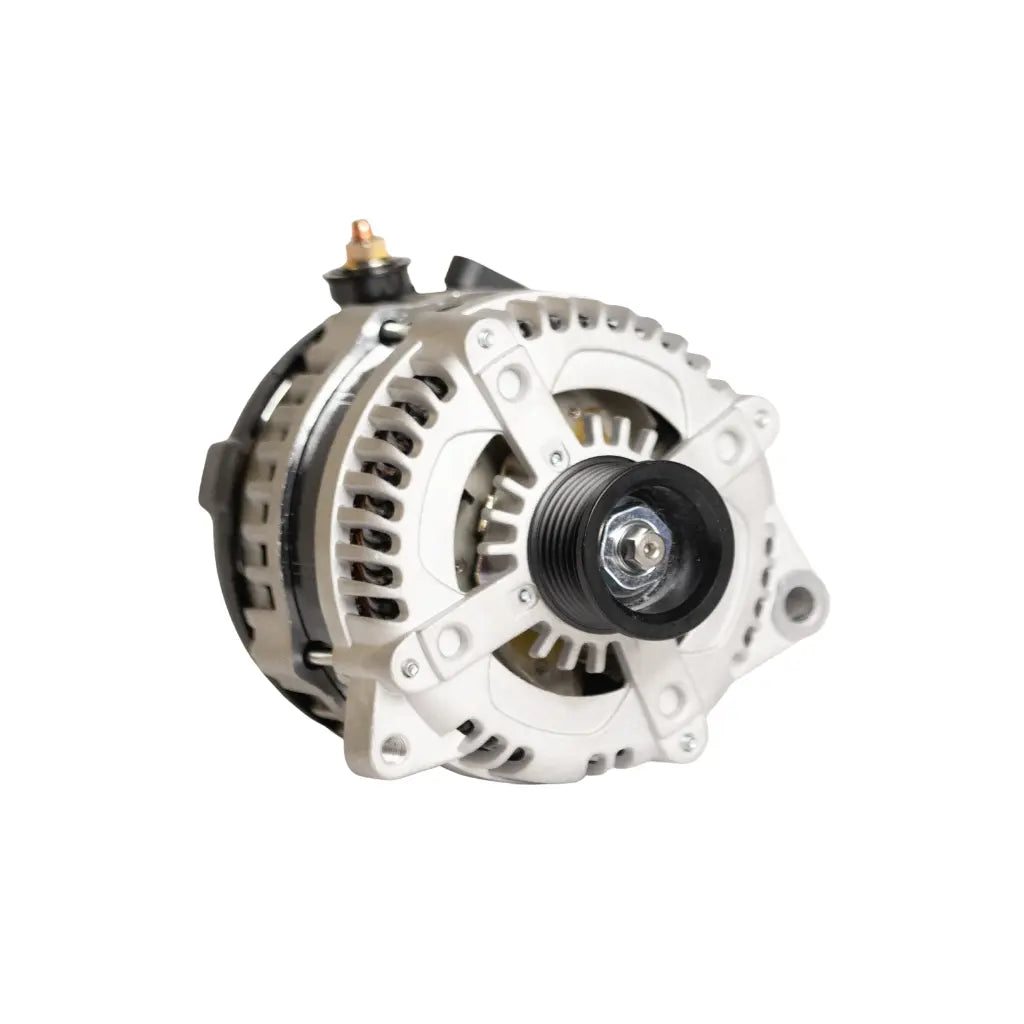

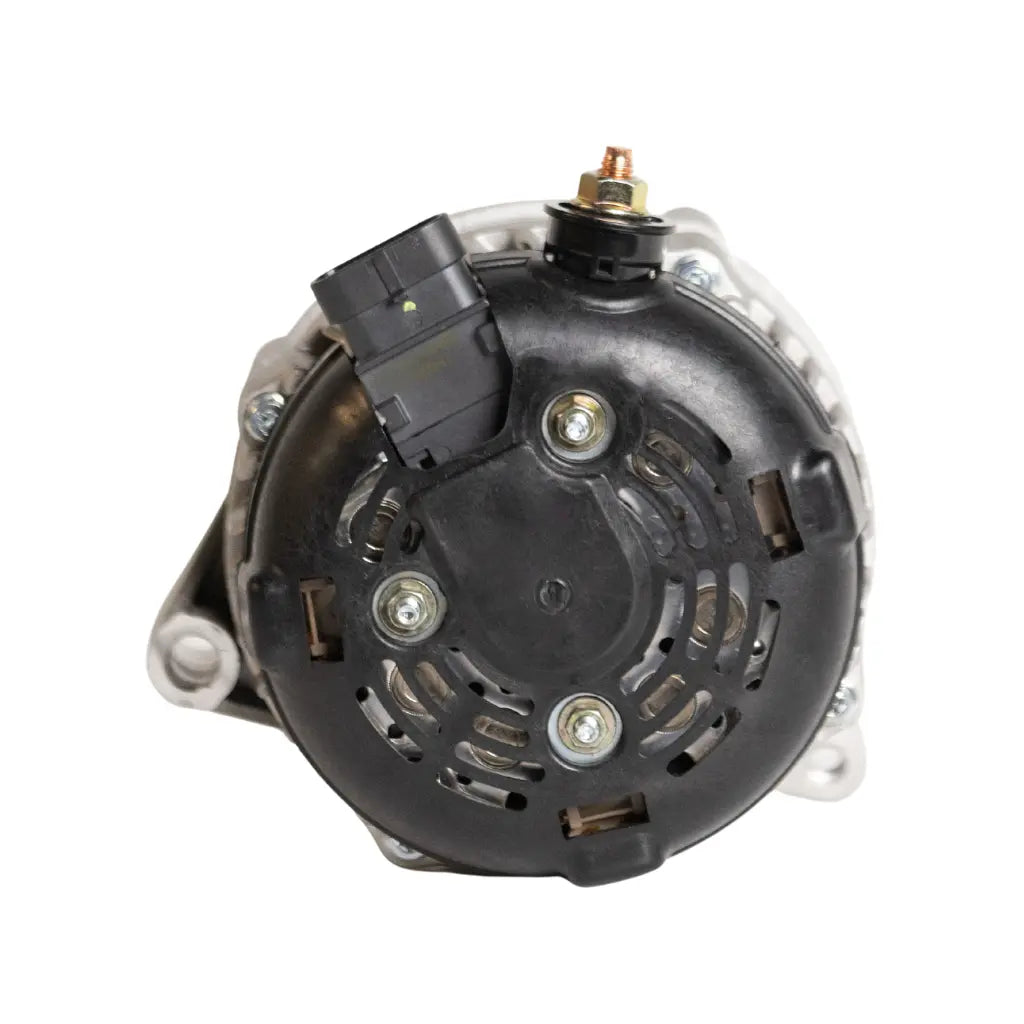

CS130 High Output Alternator - One Wire Turn On

Hairpin units are commonly called 6 phase. They produce more output at idle and are more efficient than a conventional alternator. JS Alternators hairpin units feature premium bearings to withstand high engine rpm and utilize dual plate rectifier with 12 heavy duty diodes for improved cooling. Hairpin Units are a more reliable alternator to withstand high heat, high demand for car audio, marine, and racing applications.

This CS130 style alternator is commonly used on 1987-1995 Chevy C1500 Pickups and some aftermarket accessory drives. This unit makes for a super easy installation! To activate the alternator, you only need to connect a single wire from the provided pigtail to any ignition switched 12V+ source. This allows the alternator to turn on and off with the ignition switch. These units come with a smaller pulley which requires installing a half inch to an inch shorter belt.

All Motor Swap Applications will come with a 45 mm. pulley and will require installing a 1/2 inch - 1 inch shorter belt.

FITMENT GUIDE:
