Finishing Lines EG Civic Full Tuck Brake Line Kit – Inline Staging Brake Provision

Finishing Lines EG Civic Full Tuck Brake Line Kit – Inline Staging Brake Provision

Transform your engine bay with the Finishing Lines EG Civic Full Tuck Brake Line Kit, specifically engineered for 1992–1995 Honda Civics. This comprehensive kit is the ultimate solution for builders seeking a clean, tucked aesthetic while integrating an inline staging brake for drag racing or performance applications. By relocating the proportioning valve and hiding the majority of the plumbing behind the dash, you achieve a show-quality look without sacrificing braking performance.

Constructed with a high-performance PTFE core and stainless steel braiding, these lines provide a firm, consistent pedal feel and superior durability. The kit replaces all factory chassis hard lines, offering a complete plumbing overhaul that is both functional and visually striking. Whether you are running an OEM 2-port master cylinder or a single-port booster delete, this kit provides the necessary components for a professional-grade installation.

Key Features

• **Ultimate Bay Tuck:** Hides all brake lines behind the dash, leaving only the master cylinder to firewall bulkheads visible in the engine bay.

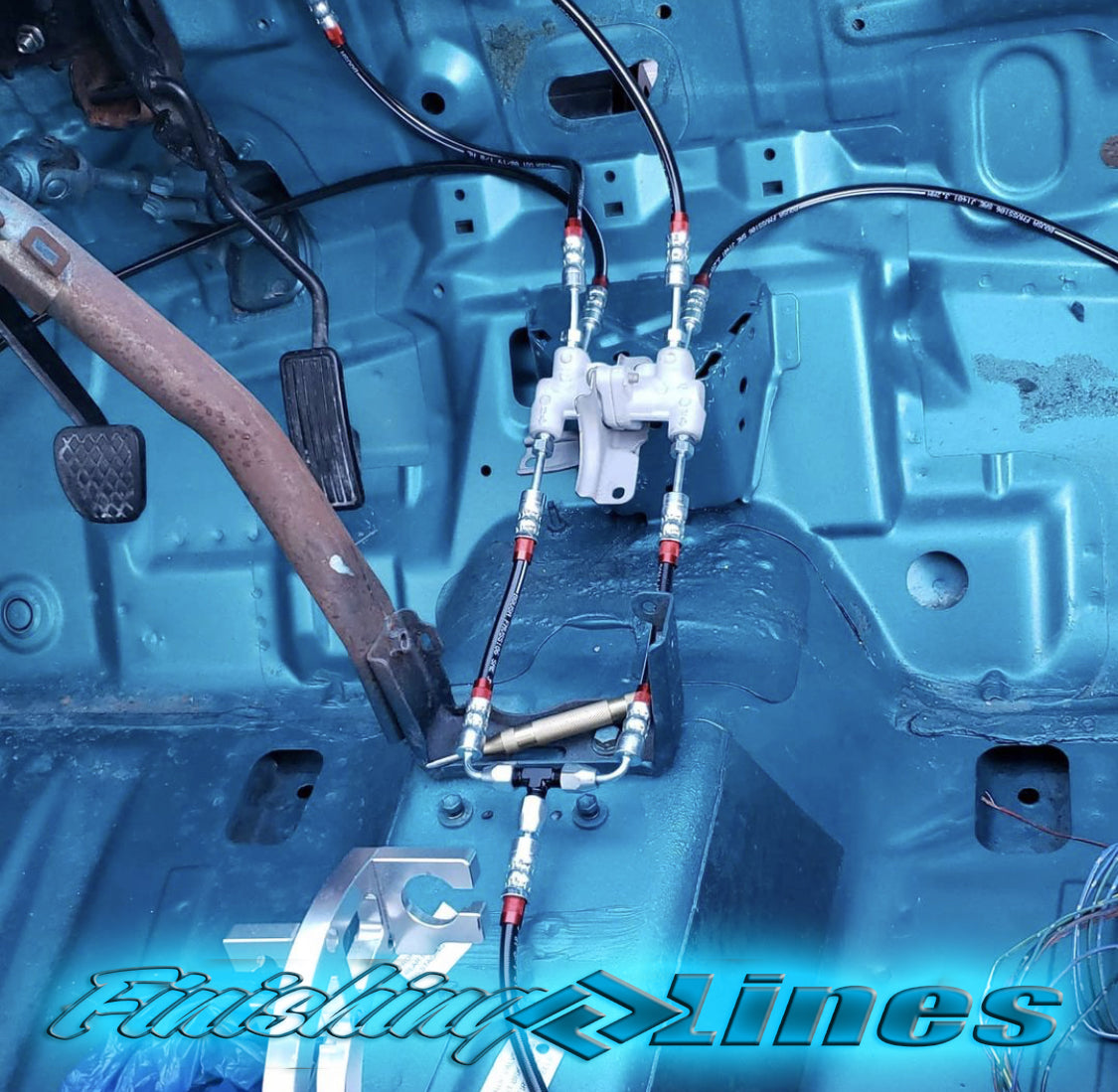

• **Prop Valve Relocation:** Relocates the OEM proportioning valve behind the dash near the SRS module pedestal for a professional finish.

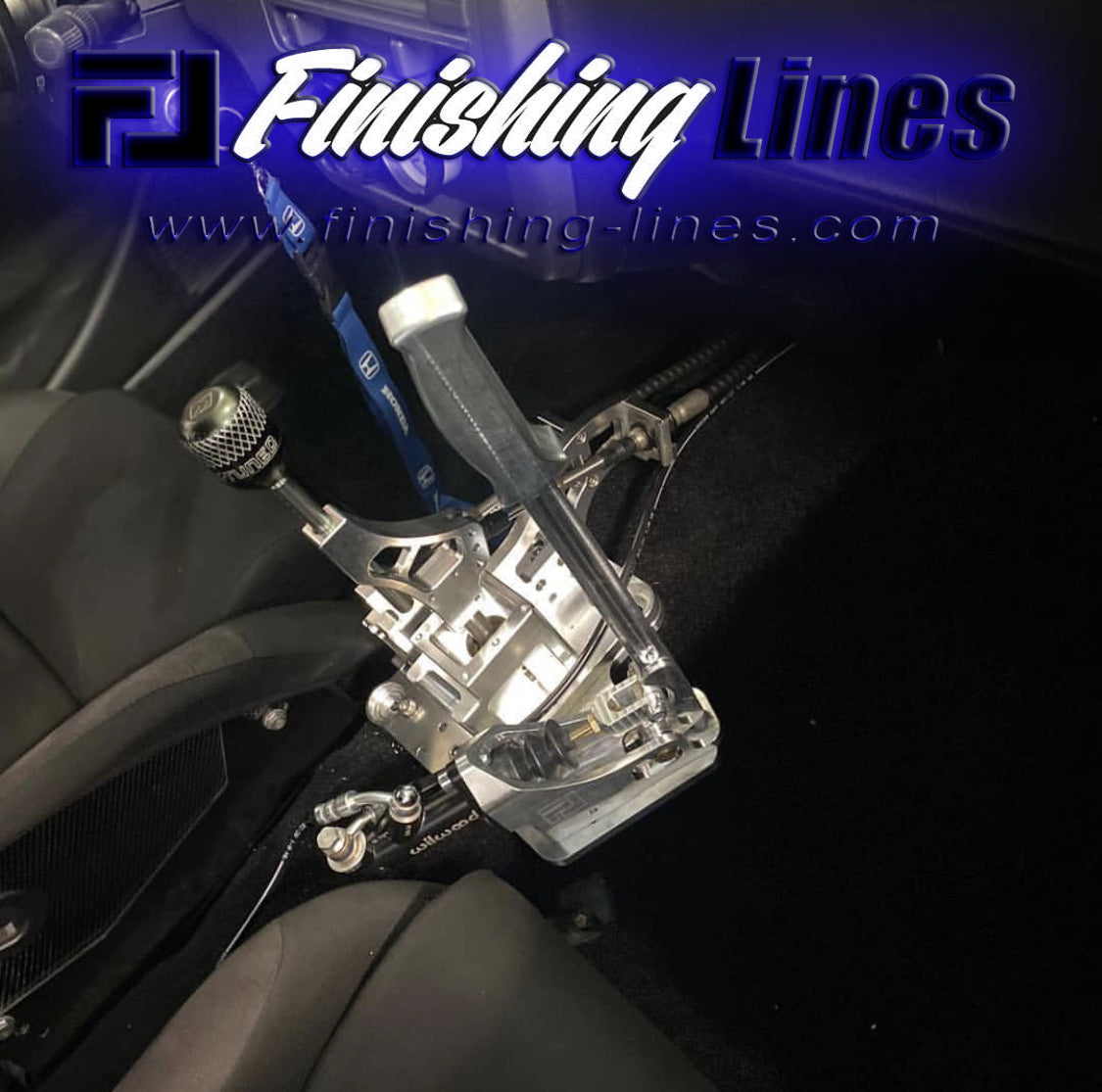

• **Staging Brake Provision:** Includes a built-in provision for connecting a Finishing Lines or Wilwood inline hand brake.

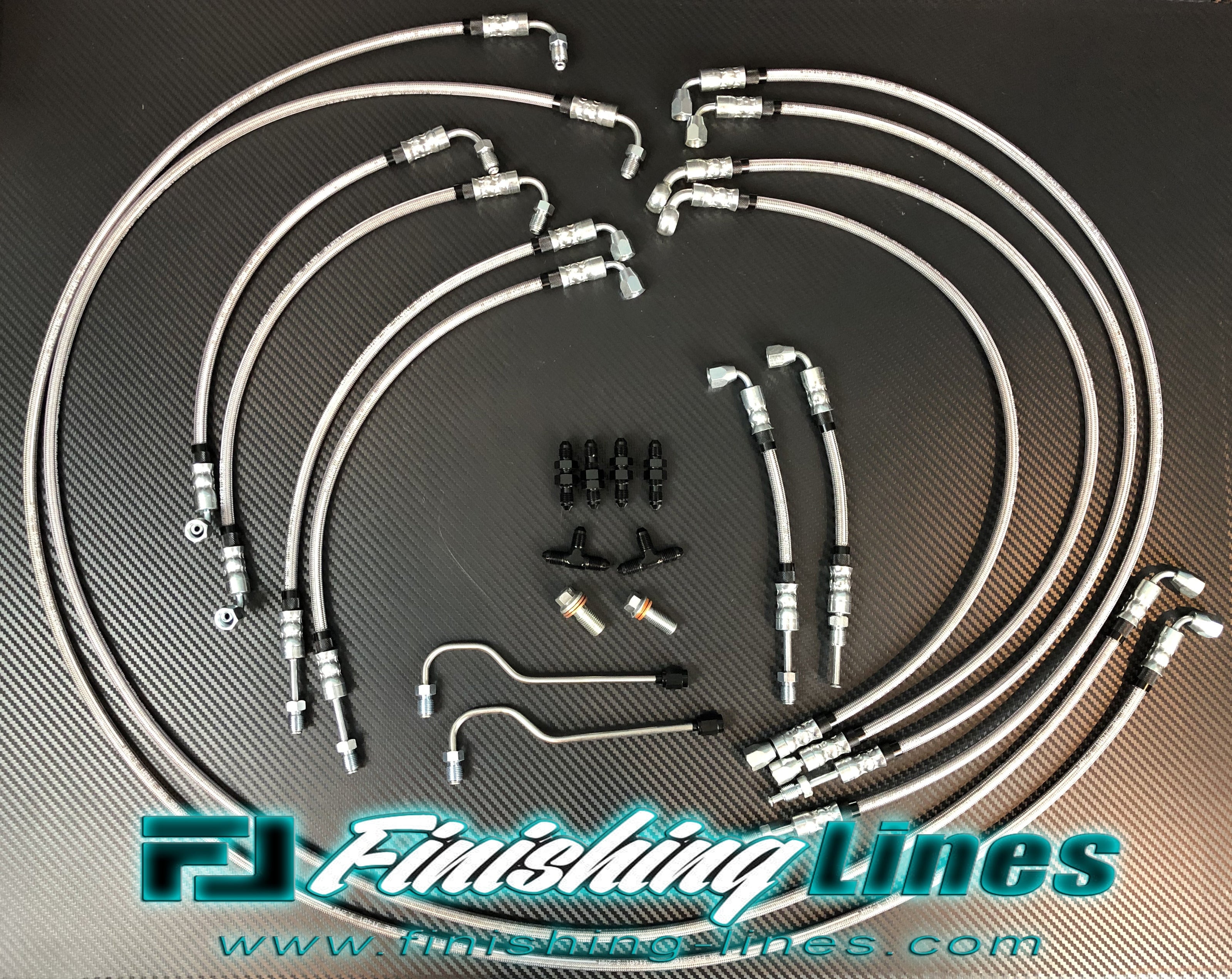

• **Complete Hard Line Replacement:** Replaces all OEM chassis hard lines with high-quality hoses, bulkheads, banjo bolts, and adapter fittings.
• **Independent Rear Brake Hold:** Retains full 4-wheel braking from the pedal while allowing independent rear brake hold for staging.
• **Performance Construction:** Features a PTFE core for consistent pedal feel, stainless steel braiding for strength, and a poly outer coating for abrasion resistance.
• **Customizable Style:** Made to order in your choice of color combinations to match your build's aesthetic.

Specifications

• PTFE Core Construction
• Stainless Steel Braided Reinforcement
• Poly Outer Coating
• Ships in 1-3 Business Days

Fitment / Applications

• 1992-1995 Honda Civic (EG)

Notes

• Caliper hoses are not included and must be purchased separately.
• Staging brake provision supports hand brakes with 7/16"-20 inlet and 3/8"-24 outlet ports (Finishing Lines, Wilwood, etc.).
• For CNC412 inline brakes (1/8"-27 NPT), please contact us before ordering.

Pro Tip: Pair this full tuck kit with Finishing Lines caliper hoses and billet hardware for a fully coordinated, show-ready brake system.
