Finishing Lines EK Civic Full Tuck Brake Line Kit – Inline Staging Brake Provision

Finishing Lines EK Civic Full Tuck Brake Line Kit – Inline Staging Brake Provision

Transform your engine bay with the Finishing Lines EK Civic Full Tuck Brake Line Kit, the ultimate solution for 1996–2000 Honda Civic owners seeking a clean, professional aesthetic. This kit is specifically engineered to hide all brake lines behind the dash, leaving only the master cylinder bulkheads visible at the firewall. By relocating the proportioning valve and replacing all factory hard lines, you achieve a show-ready look without sacrificing performance.

Designed for serious builders, this kit includes a dedicated provision for an inline staging brake, allowing for independent rear brake hold while maintaining standard four-wheel braking from the pedal. Constructed with a PTFE core and stainless steel braiding, these lines provide a firm, consistent pedal feel and superior durability against abrasion.

Key Features

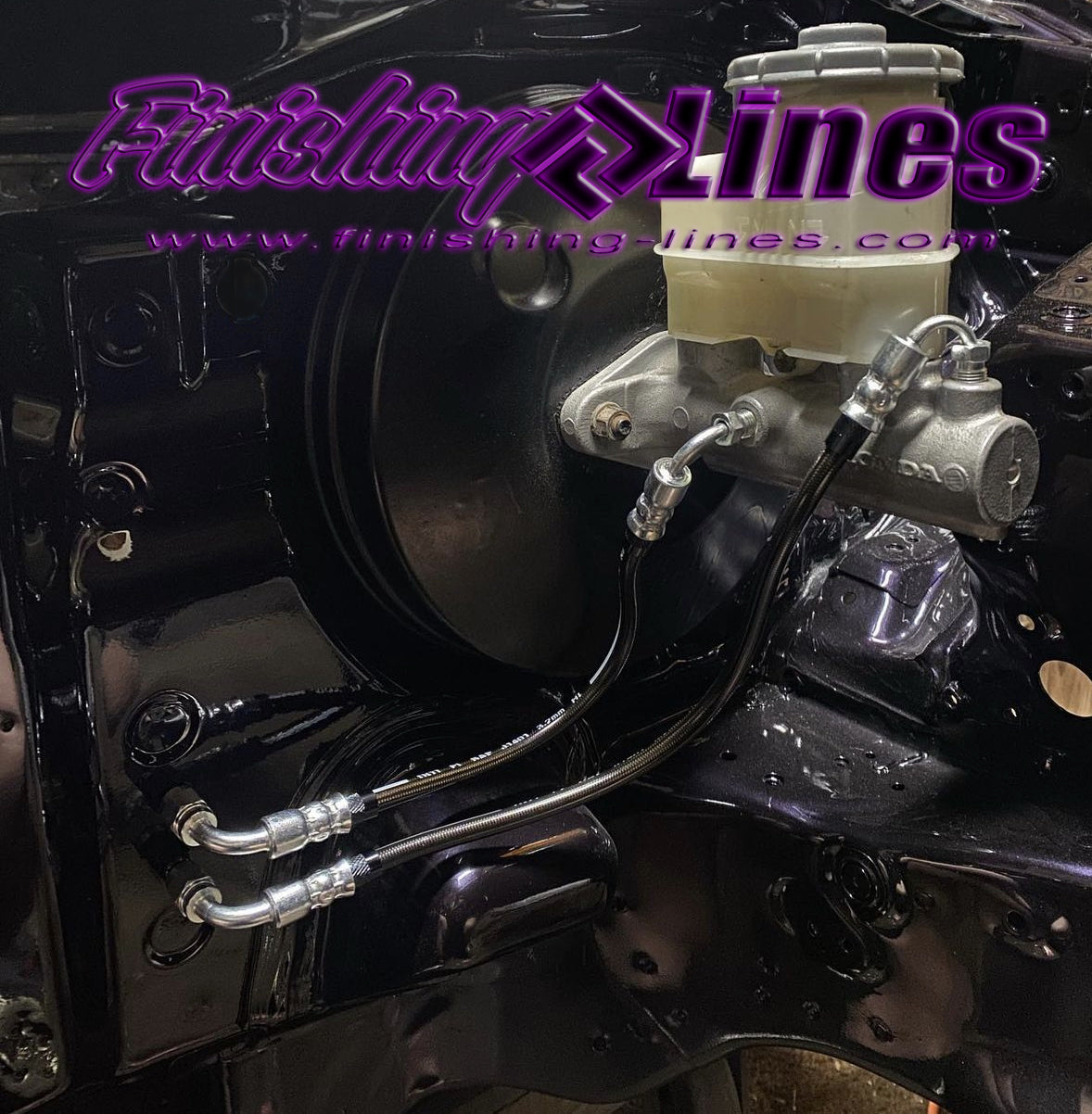

• **Ultimate Engine Bay Tuck:** Hides all brake lines behind the dash, leaving only the master cylinder to firewall bulkheads visible for a show-quality finish.

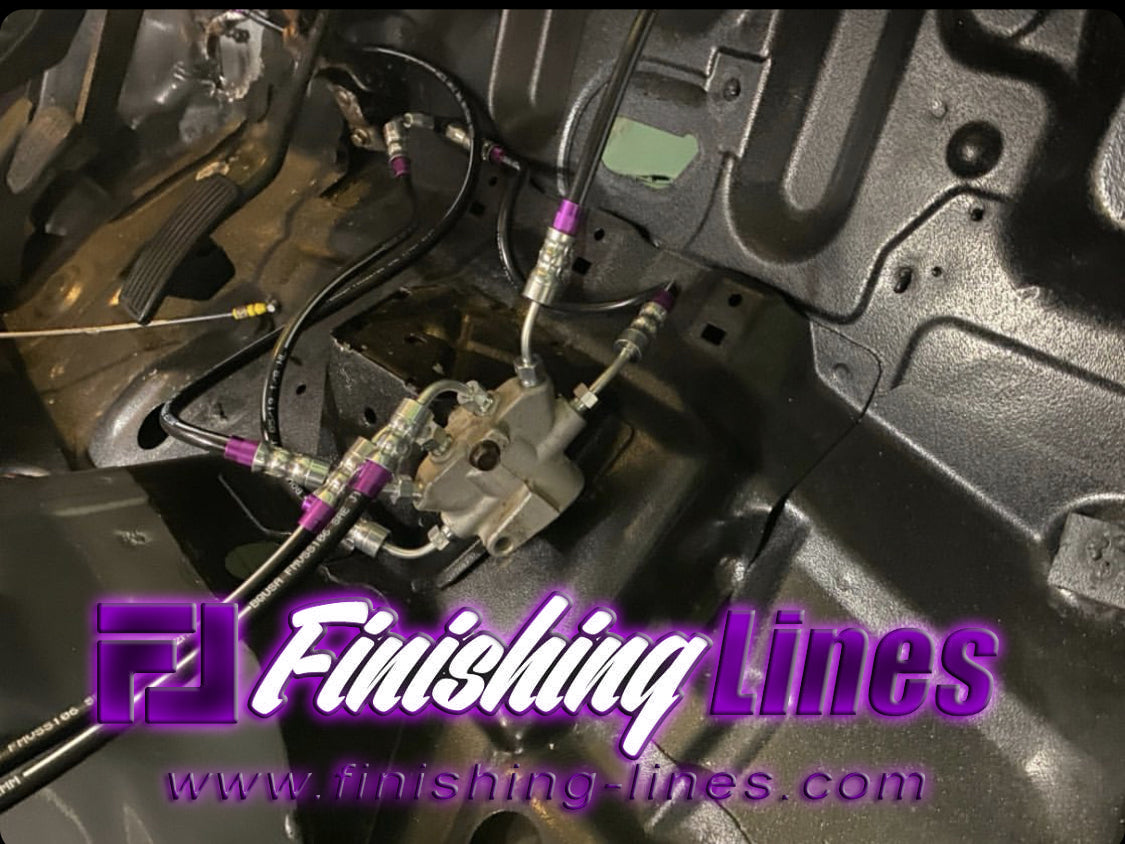

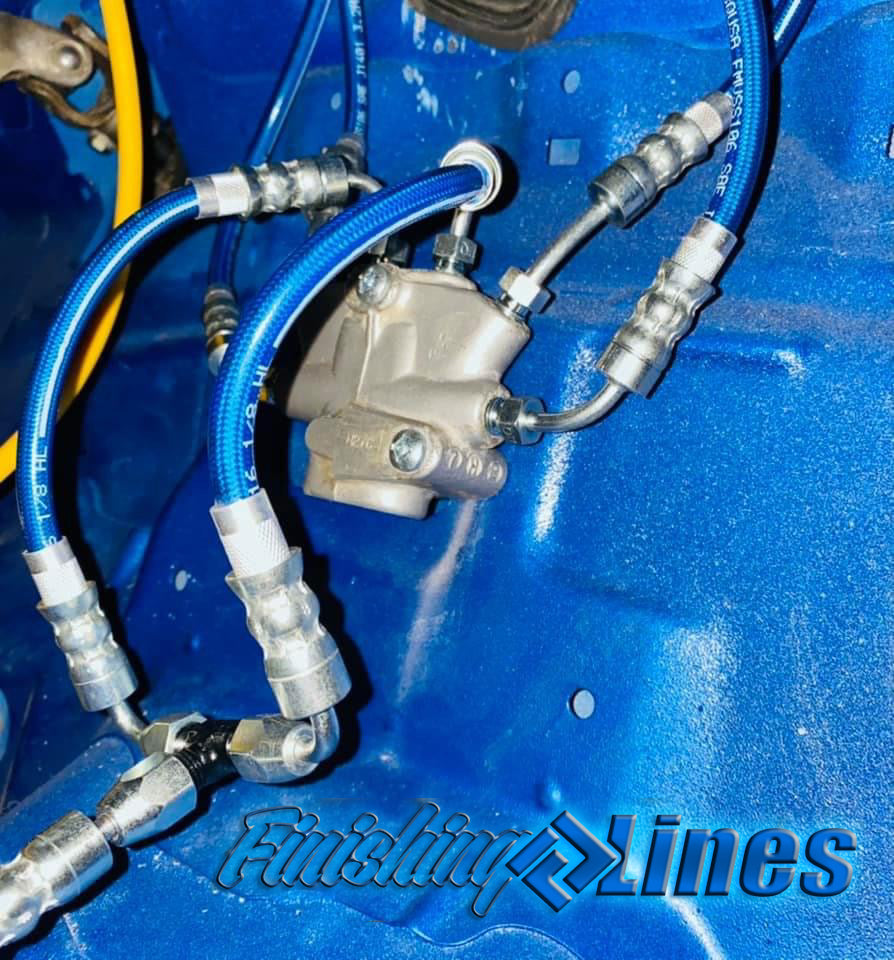

• **Proportioning Valve Relocation:** Moves the OEM proportioning valve behind the dash near the SRS module pedestal to eliminate engine bay clutter.

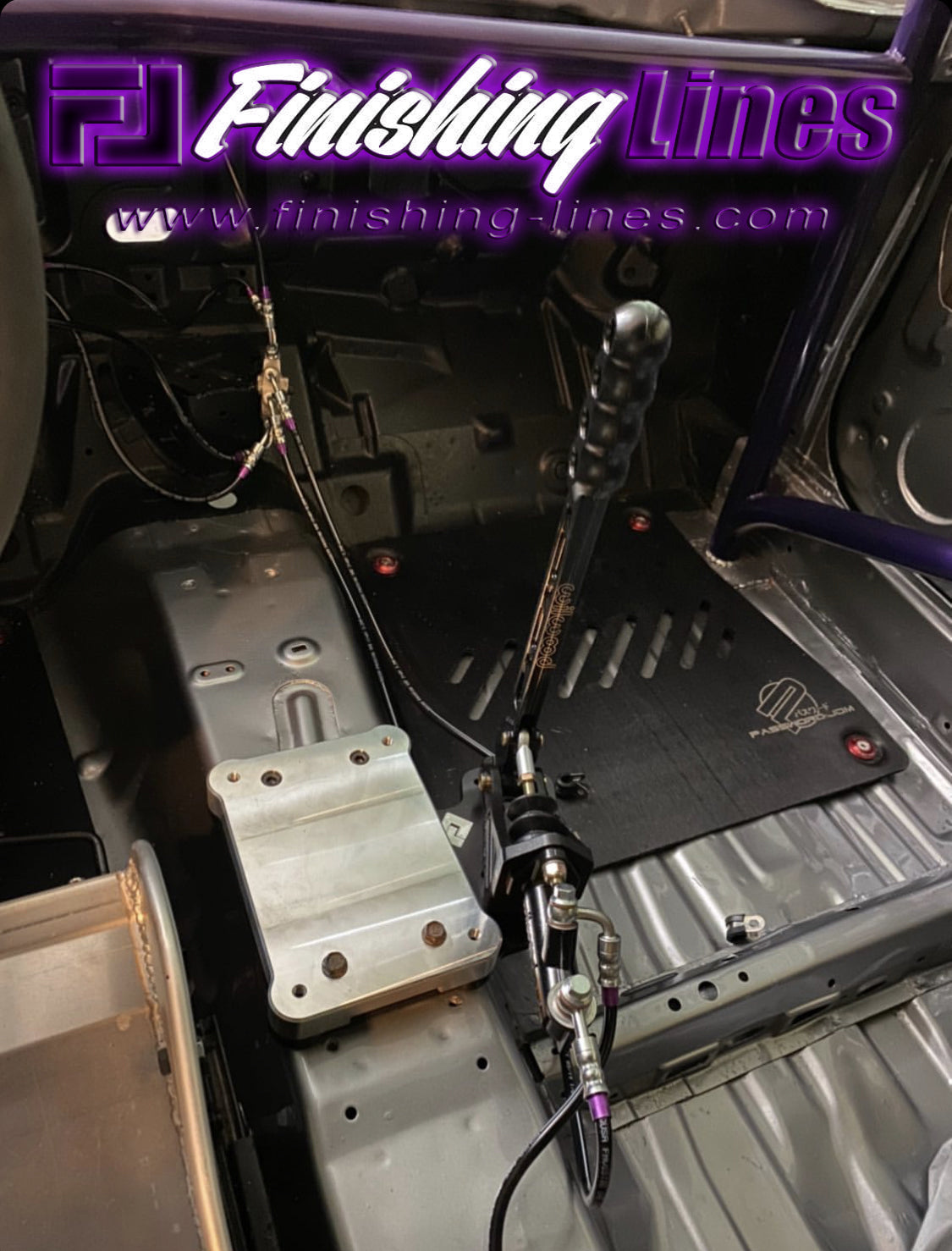

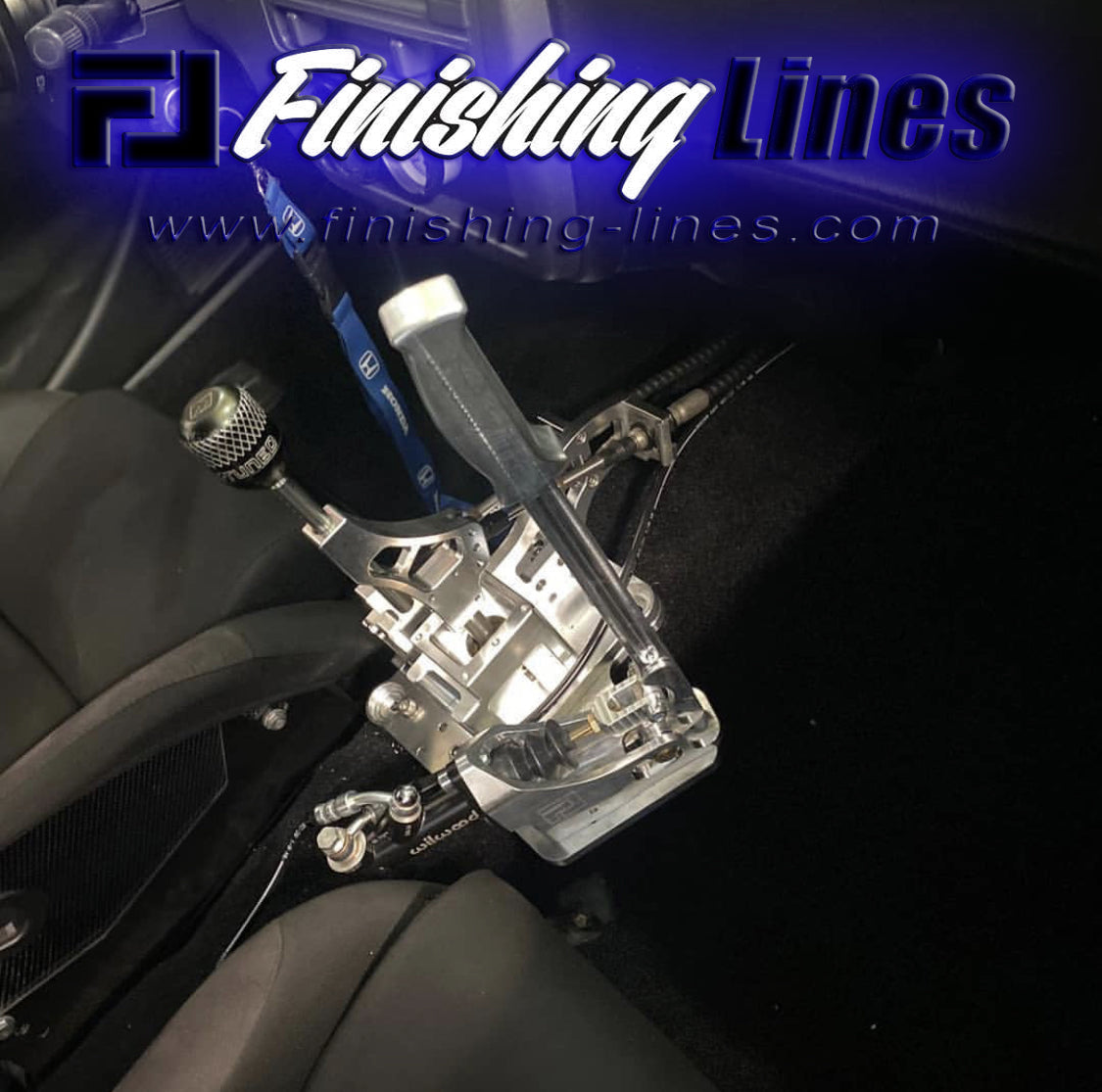

• **Staging Brake Provision:** Includes a built-in provision designed to connect a Finishing Lines or Wilwood inline hand brake (hand brake sold separately).

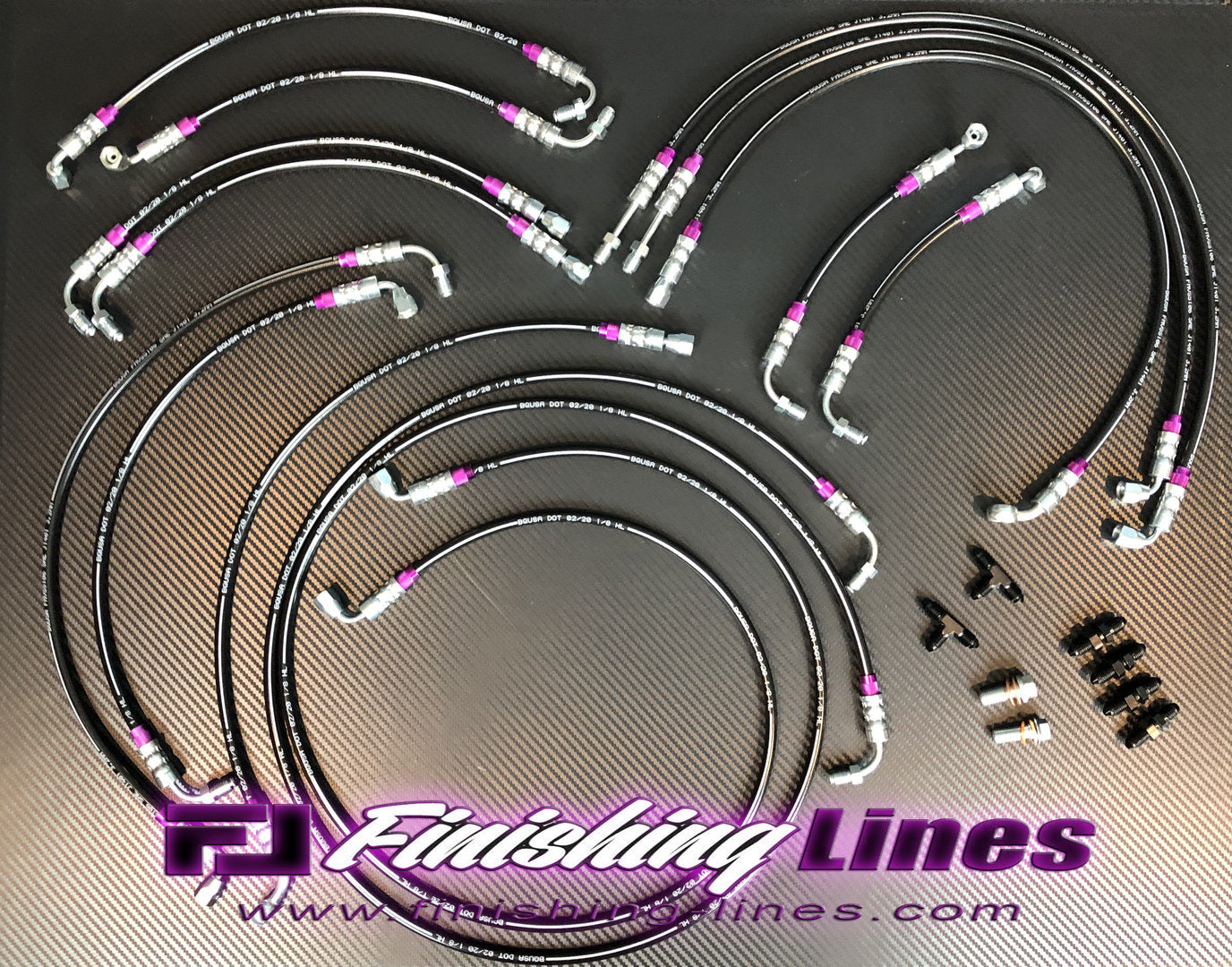

• **Complete Hard Line Replacement:** Replaces all factory chassis hard lines with high-quality hoses, bulkheads, banjo bolts, and adapter fittings.
• **Independent Rear Brake Hold:** Maintains full 4-wheel braking from the pedal while allowing for independent rear brake hold during staging.
• **Performance Construction:** Features a PTFE core for consistent pedal feel, stainless steel braiding for strength, and a poly outer coating for abrasion resistance.
• **Customizable Finish:** Made to order in your choice of color combinations to match your specific build style.

Specifications

• PTFE Core Construction
• Stainless Steel Braided Reinforcement
• Poly Outer Coating
• 7/16"-20 Inlet / 3/8"-24 Outlet Staging Provision

Fitment / Applications

• 1996-2000 Honda Civic (EK Chassis)
• Compatible with OEM 2-port or single-port booster delete master cylinders

Notes

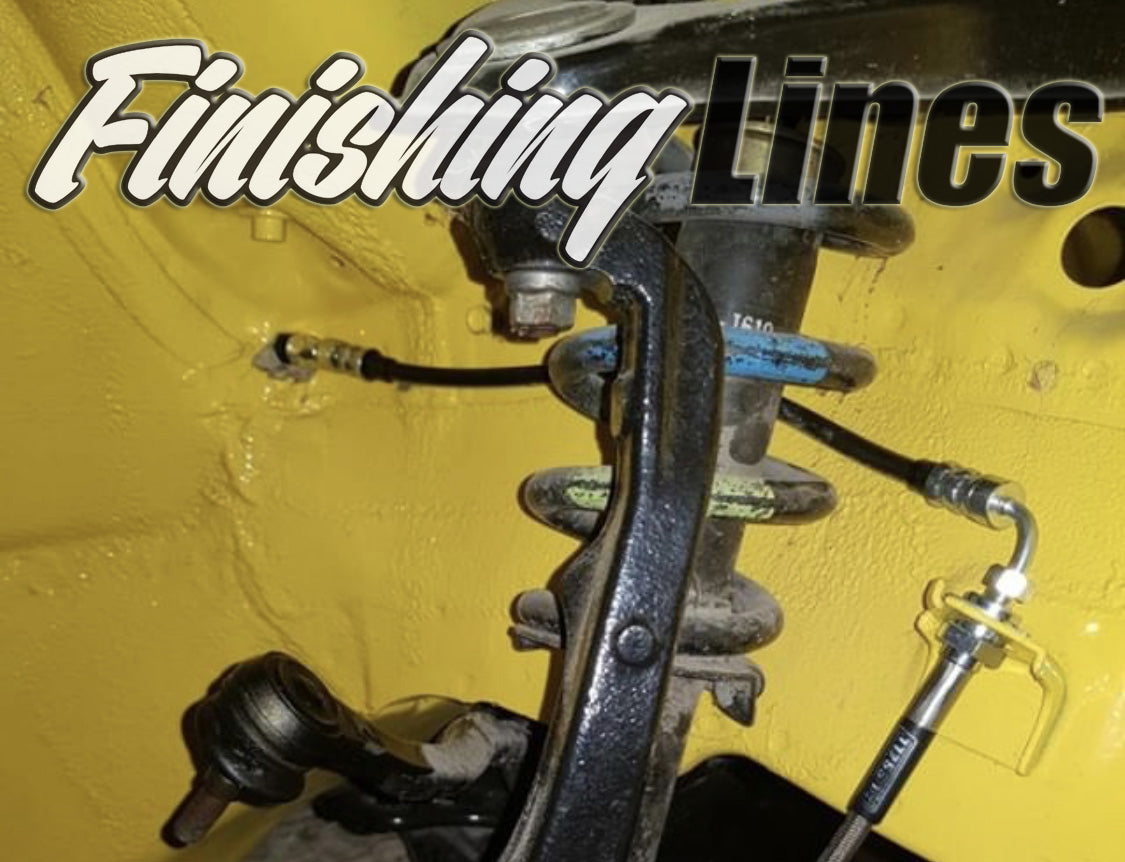

• Caliper hoses are not included and must be purchased separately.
• Staging brake provision supports 7/16"-20 inlet and 3/8"-24 outlet ports (Finishing Lines, Wilwood, etc.).
• For CNC412 inline brakes (1/8"-27 NPT), please contact us before ordering.

Pro Tip: Pair this full tuck kit with Finishing Lines caliper hoses and billet hardware for a fully coordinated, show-ready brake system.
