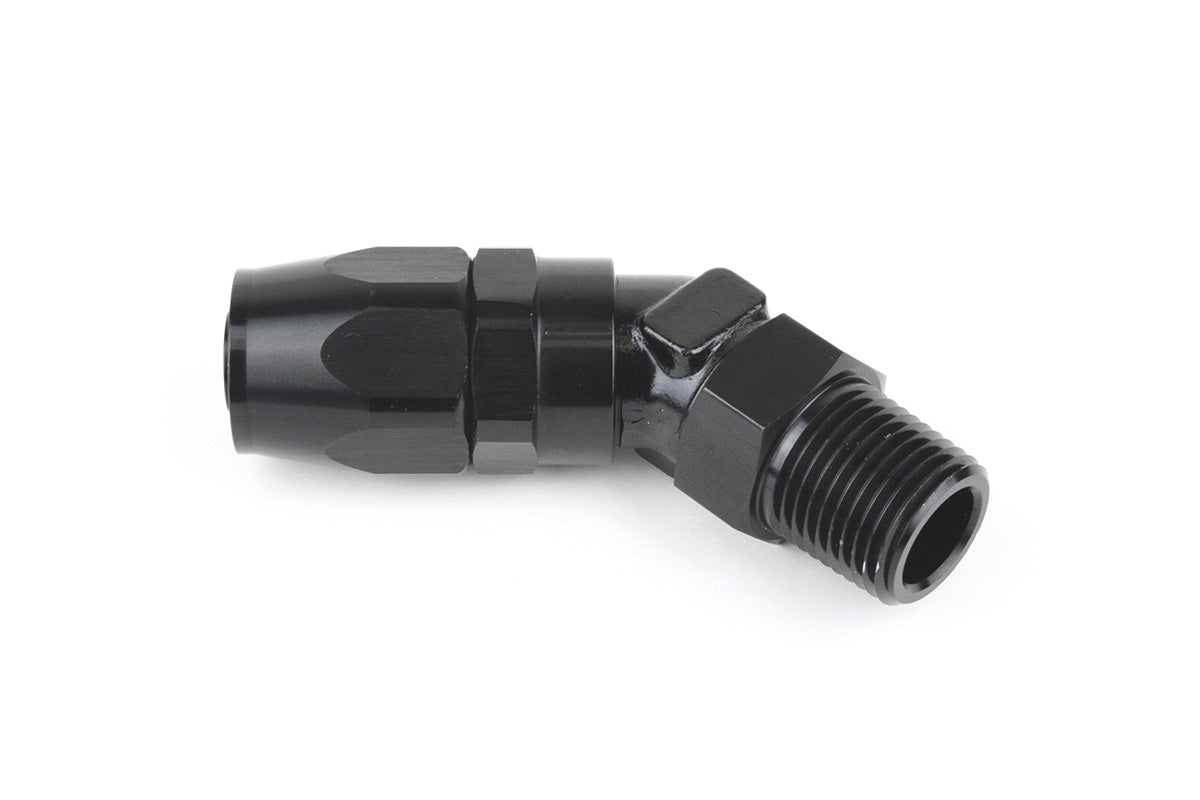

RaceFlux 45-Degree AN Hose End to Male NPT Fitting

Braided hose into a pipe-thread port at a 45-degree sweep: this hose end terminates directly in a male NPT thread while turning the line, so hose approaches blocks, pumps, and accessories at a natural angle without an adapter stack or a strained bend.

Like all RaceFlux D-series hose ends, it swivels for easy installation and clocking, uses a left-hand threaded socket that keeps the hose from backing out during assembly, and is machined from a single piece of 6061-T6 aluminum with zero welds or brazes.

Key Features

• 45-degree hose end with integrated male NPT output — no separate adapter needed
• Swivel design for easy installation and re-clocking of finished lines
• Left-hand threaded socket retains the hose while tightening
• One-piece machined 6061-T6 aluminum — no welds or brazes
• MilSpec Type II black anodized; FKM (Viton) seals; reusable
• Lifetime manufacturer's warranty

Specifications

Fitment & Compatibility

• For use with any standard braided AN rubber hose, including RaceFlux RH1 and RH2 lightweight braided racing hose
• Compatible with gasoline, E85 and ethanol blends, diesel and biodiesel, methanol, racing fuels, engine oil, gear oil, transmission fluid, coolant, water, air, and vacuum
• Common uses: angled oil feed and drain lines, gauge lines, and coolant plumbing into NPT ports

Note: NPT threads seal on the taper — apply thread sealant and avoid overtightening into aluminum housings. Not compatible with PTFE (Teflon) hose. Select your size combination from the dropdown.
