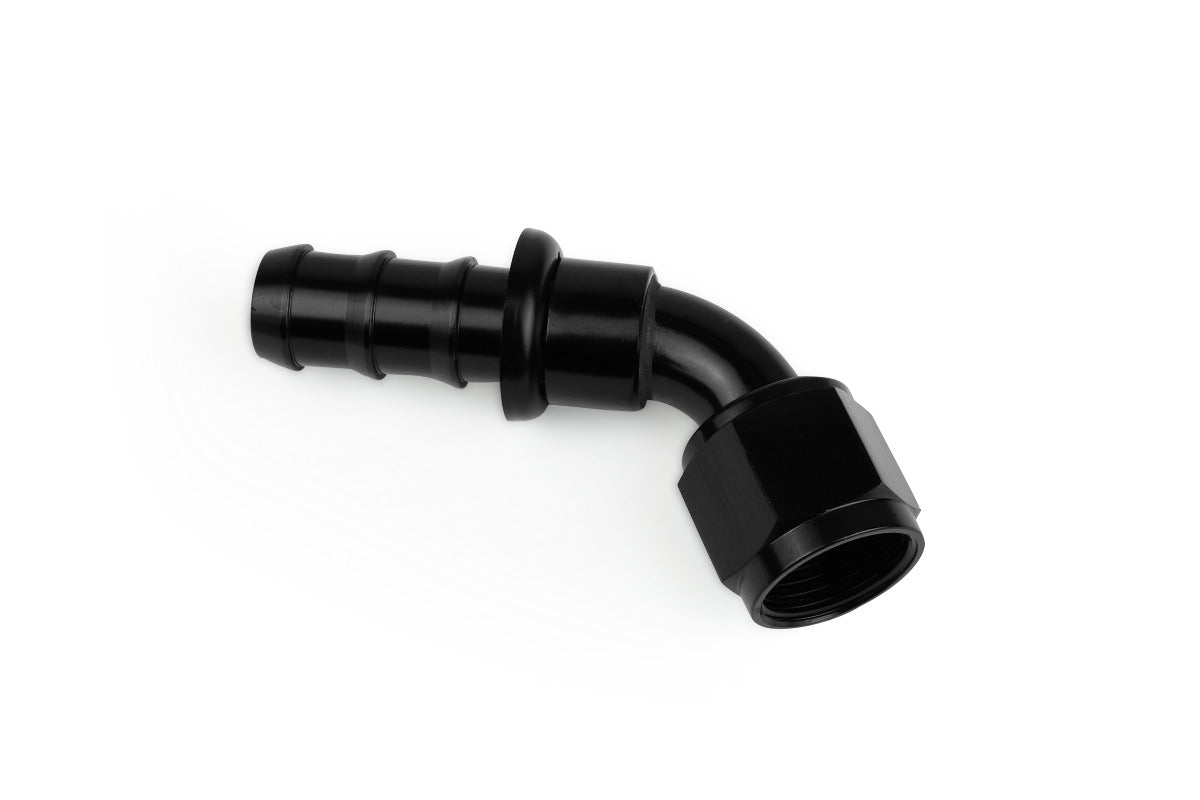

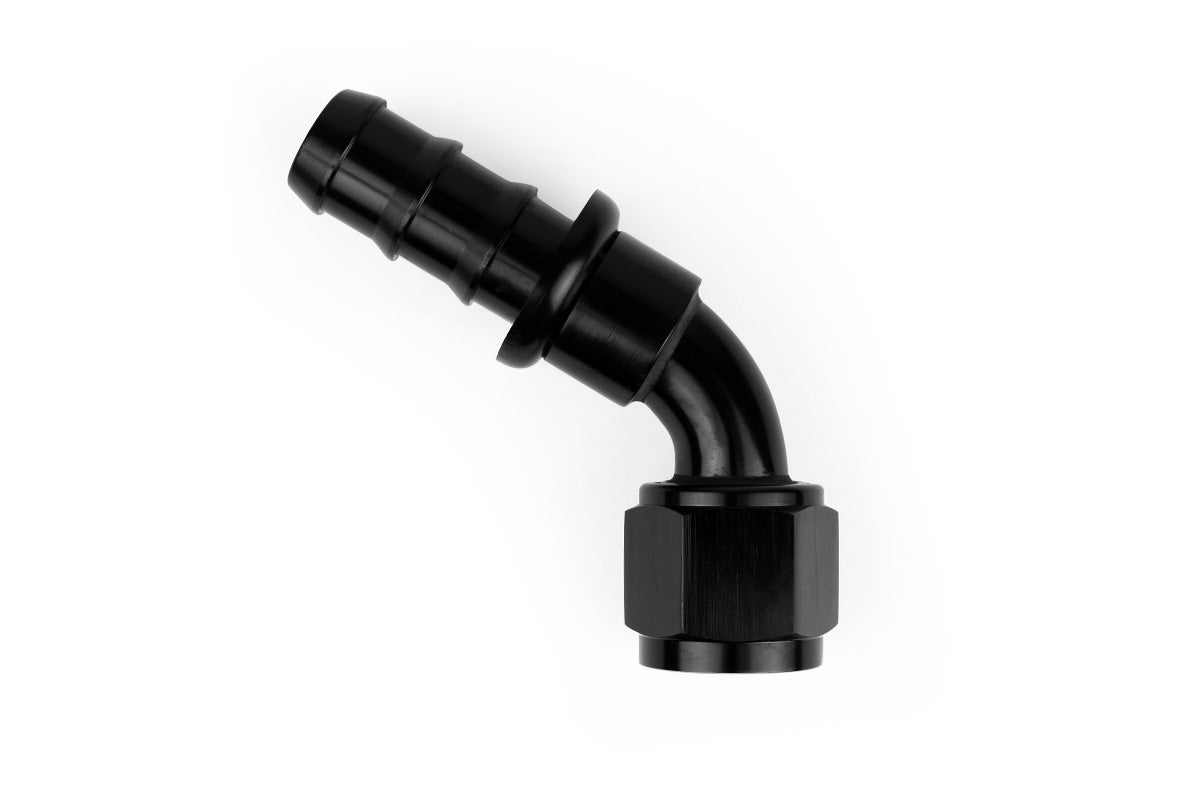

RaceFlux 60-Degree Push-Lock Hose End Fitting, 5/8" Barb to -10AN Female
RaceFlux 60-Degree Push-Lock Hose End Fitting, 5/8" Barb to -10AN Female
For -10AN push-lock lines that need more bend than a 45 but less than a 90, this 60-degree hose end fits 5/8" ID soft rubber or socketless hose and terminates in a -10AN female flare. Installation is tool-free — warm the hose, add a little lubricant, push it onto the barb, and it locks in place.
Machined from black anodized aluminum, it's 36% lighter than traditional screw-type line fittings.
Key Features
- 60-degree push-lock hose end — 5/8" barb to -10AN female flare
- Splits the difference between a 45 and a 90 for cleaner routing
- Tool-free installation: hose pushes on with heat and lubricant, then locks in place
- 36% lighter than traditional screw-type line fittings
- Lightweight black anodized aluminum construction
Specifications
| Material | Black anodized aluminum |
| Fitting Angle | 60° |
| Connection | 5/8" push-lock barb to -10AN female flare (37° JIC) |
| Max Temperature (assembled) | 300°F with RaceFlux PH-series hose |
| Max Pressure (assembled) | 150–300 psi depending on hose size |
Fitment & Compatibility
- For use with 5/8" ID RaceFlux PH-series push-lock hose and other soft rubber fuel, transmission, and PCV hose
- Common uses: transmission cooler lines, oil drain and breather plumbing, larger fuel return lines
Note: Use a hose clamp on any line running 10 psi or higher to ensure the hose cannot back off the barb. Not for use with braided AN hose or PTFE hose.
