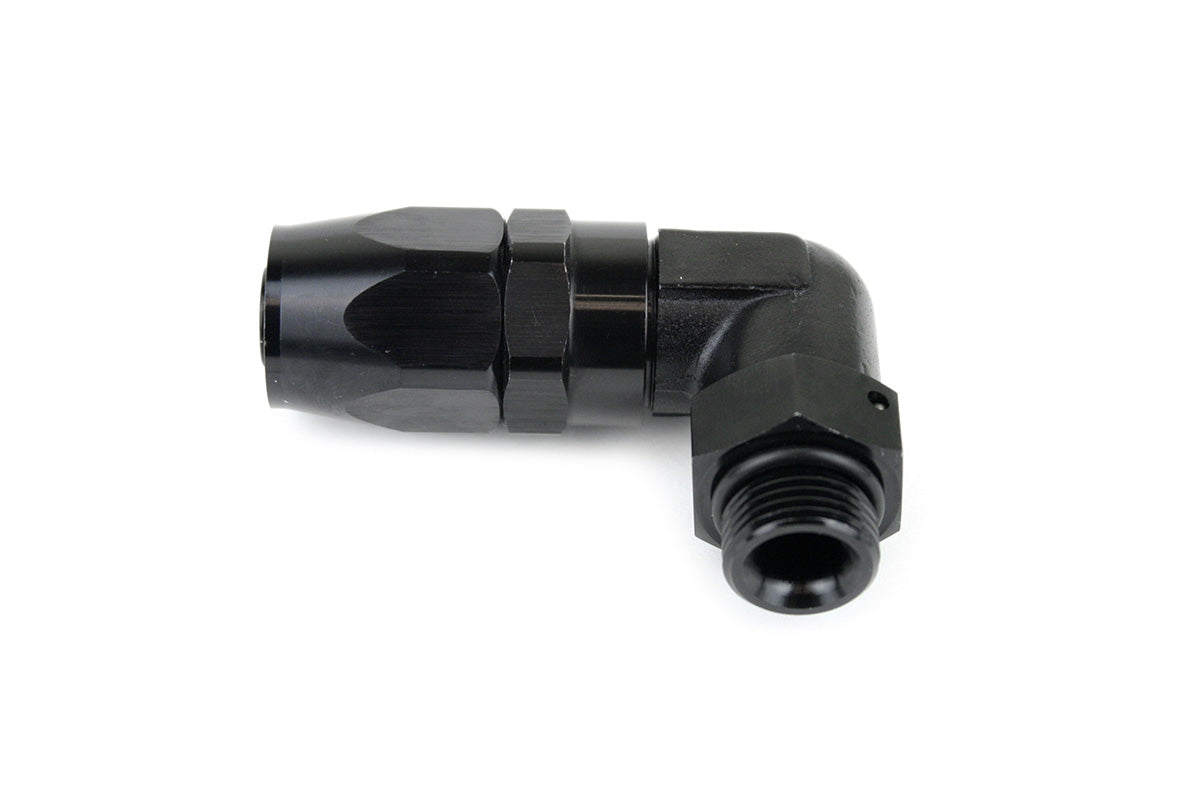

RaceFlux 90-Degree AN Hose End to AN Male O-Ring Fitting

The tightest package for an ORB connection: this hose end turns 90 degrees and terminates directly in a male O-ring boss thread, so braided hose can drop straight down (or route flat across) into oil coolers, thermostats, and pumps mounted in cramped quarters — with no adapter fitting adding stack height.

The ORB end seals on a Viton O-ring against the port face — no thread sealant, and it reseals reliably every time the line comes off. Like all RaceFlux D-series hose ends, it swivels for easy installation and clocking, uses a left-hand threaded socket that keeps the hose from backing out during assembly, and is machined from a single piece of 6061-T6 aluminum with zero welds or brazes.

Key Features

• 90-degree hose end with integrated male ORB output — minimal stack height at the port
• Viton O-ring seal on the ORB end — no sealant needed, reseals reliably
• Swivel design for easy installation and re-clocking of finished lines
• Left-hand threaded socket retains the hose while tightening
• One-piece machined 6061-T6 aluminum — no welds or brazes
• MilSpec Type II black anodized; reusable
• Lifetime manufacturer's warranty

Specifications

Fitment & Compatibility

• For use with any standard braided AN rubber hose, including RaceFlux RH1 and RH2 lightweight braided racing hose
• Compatible with gasoline, E85 and ethanol blends, diesel and biodiesel, methanol, racing fuels, engine oil, gear oil, transmission fluid, coolant, water, air, and vacuum
• Common uses: low-clearance ORB connections on oil coolers, remote filter mounts, thermostats, and fuel system components

Note: Not compatible with PTFE (Teflon) hose — use RaceFlux TF-series hose ends for PTFE lines. Select your size combination from the dropdown.
