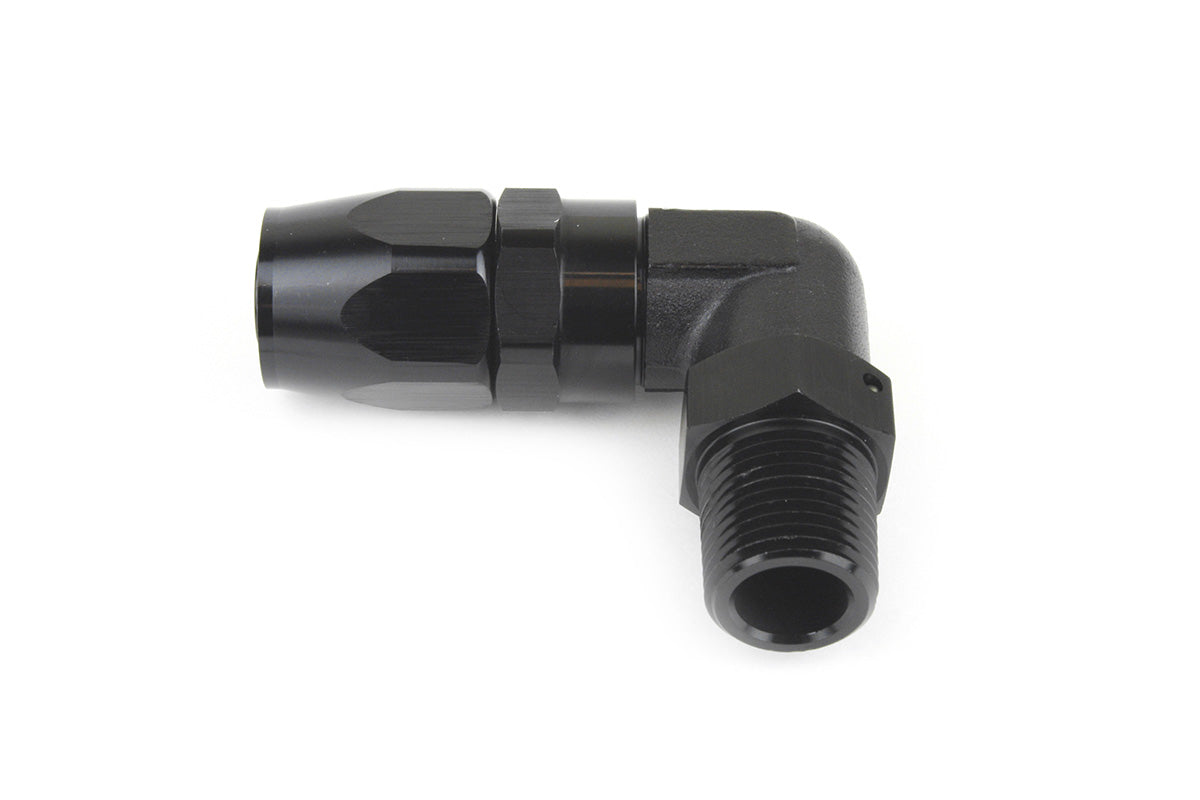

RaceFlux 90-Degree AN Hose End to Male NPT Fitting

The low-clearance pipe-thread connection: this hose end turns 90 degrees and terminates directly in a male NPT thread, letting braided hose route flat across a block, turbo, or accessory instead of standing tall off the port — with no adapter fitting adding stack height.

Like all RaceFlux D-series hose ends, it swivels for easy installation and clocking, uses a left-hand threaded socket that keeps the hose from backing out during assembly, and is machined from a single piece of 6061-T6 aluminum with zero welds or brazes.

Key Features

• 90-degree hose end with integrated male NPT output — minimal stack height at the port
• Swivel design for easy installation and re-clocking of finished lines
• Left-hand threaded socket retains the hose while tightening
• One-piece machined 6061-T6 aluminum — no welds or brazes
• MilSpec Type II black anodized; FKM (Viton) seals; reusable
• Lifetime manufacturer's warranty

Specifications

Fitment & Compatibility

• For use with any standard braided AN rubber hose, including RaceFlux RH1 and RH2 lightweight braided racing hose
• Compatible with gasoline, E85 and ethanol blends, diesel and biodiesel, methanol, racing fuels, engine oil, gear oil, transmission fluid, coolant, water, air, and vacuum
• Common uses: turbo oil feed and drain lines, tight-quarters gauge lines, coolant plumbing into NPT ports behind accessories

Note: NPT threads seal on the taper — apply thread sealant and avoid overtightening into aluminum housings. Not compatible with PTFE (Teflon) hose. Select your size combination from the dropdown.
