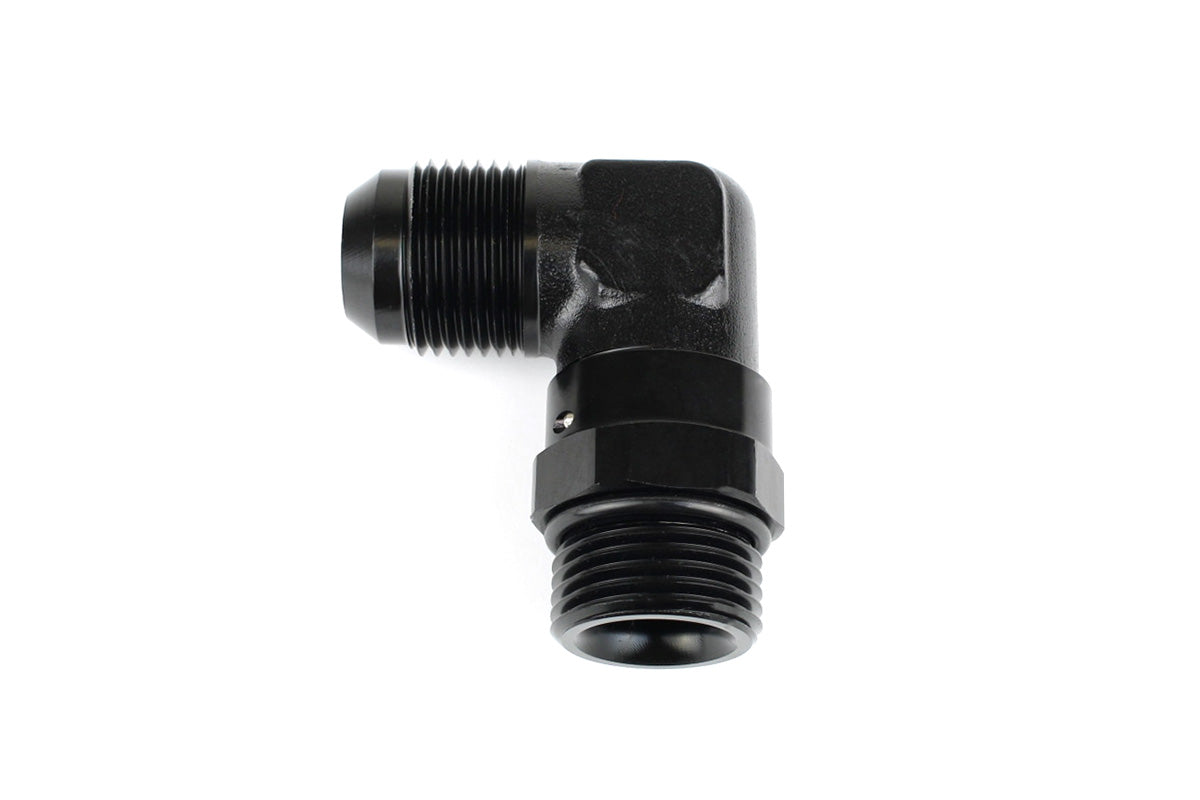

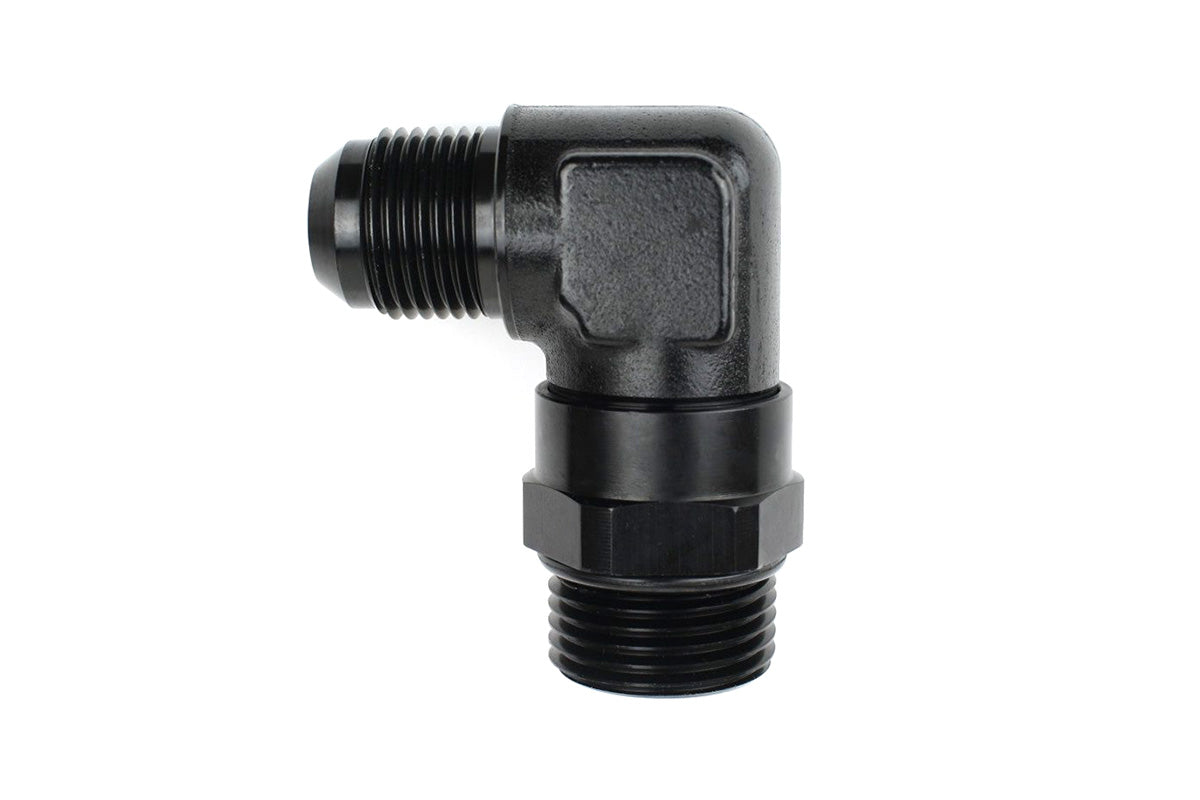

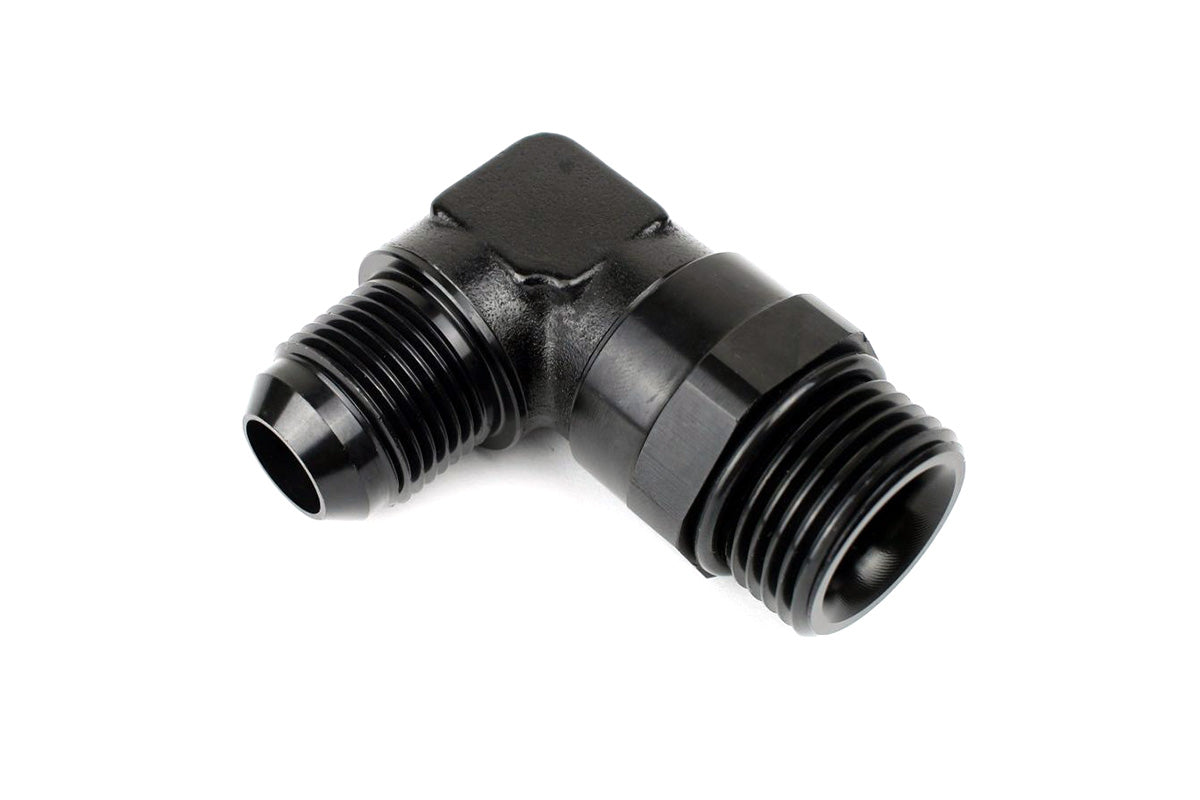

RaceFlux 90-degree AN O-Ring Boss to AN Male Flare Adapter Fitting

When a straight ORB adapter won't clear a frame rail, brake booster, or intake tract, this 90-degree RaceFlux adapter routes your line exactly where it needs to go. The O-ring boss side threads into your port and seals with a Viton O-ring, while the base swivels during installation so you can aim the AN flare side before torquing everything down. The ORB side is machined shorter than a standard straight-thread fitting, buying you extra clearance in cramped engine bays.

Like the rest of the RaceFlux line, it's cut from lightweight aluminum with a Type II black anodized finish for a cleaner, stealthier look than traditional red and blue hardware, and it's fully reusable.

Key Features

• 90-degree male O-Ring Boss (ORB) to male AN/JIC 37-degree flare adapter
• Viton (FKM) O-ring seals reliably in fuel, oil, and coolant systems
• Base swivels during installation for precise routing before final torque
• Shortened ORB side maximizes clearance in tight spaces
• Compliant with SAE J1926-1/MS16142 and SAE AS5202/MS33649
• Reusable lightweight black anodized aluminum construction

Specifications

Fitment & Compatibility

• Universal fit for any ORB-ported component: oil coolers, fuel pressure regulators, catch cans, pumps, and blocks
• Compatible with engine oil, gear oil, transmission fluid, coolant, gasoline, E85 and ethanol blends, methanol, racing fuels, power steering fluid, air, and vacuum
• Suited for fuel lines (in-tank and external), breather and vent lines, gauge and sensor lines, and low-pressure hydraulic return lines

Note: Backed by a 1-year manufacturer's warranty against defects in materials and workmanship. Select both sizes from the dropdowns to match your port and line.
