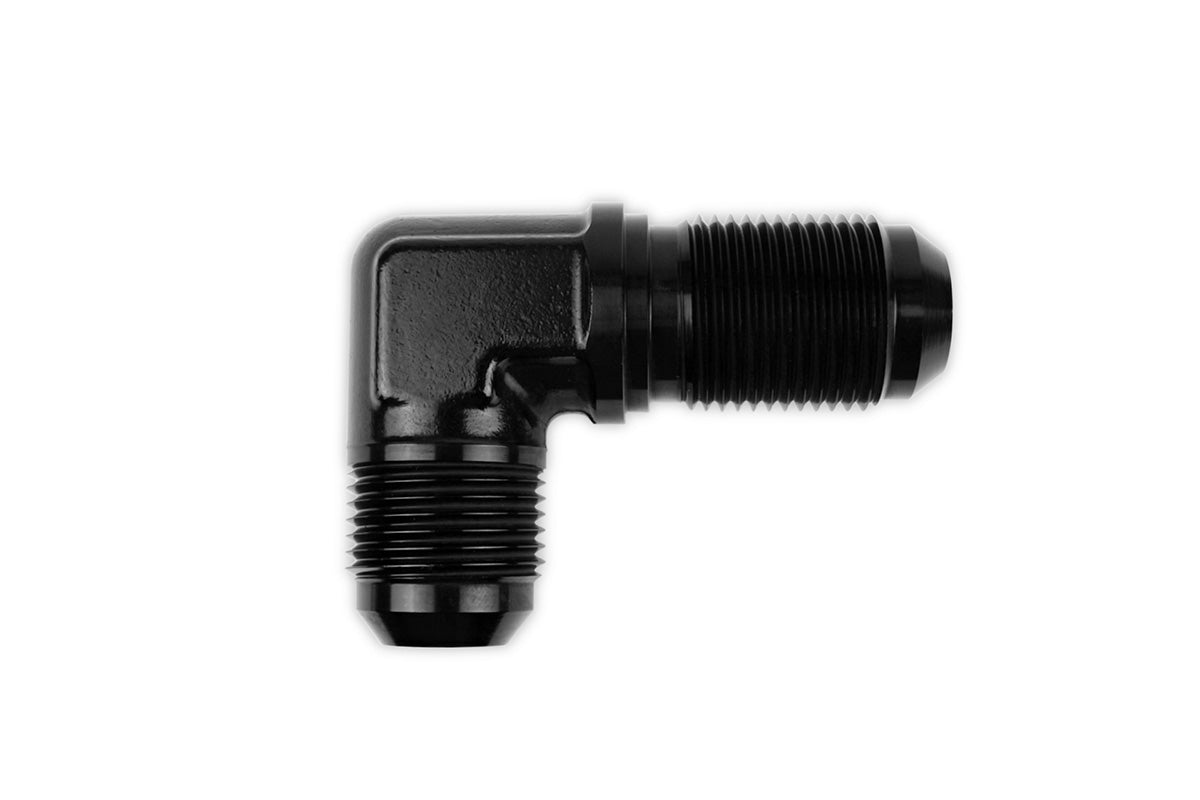

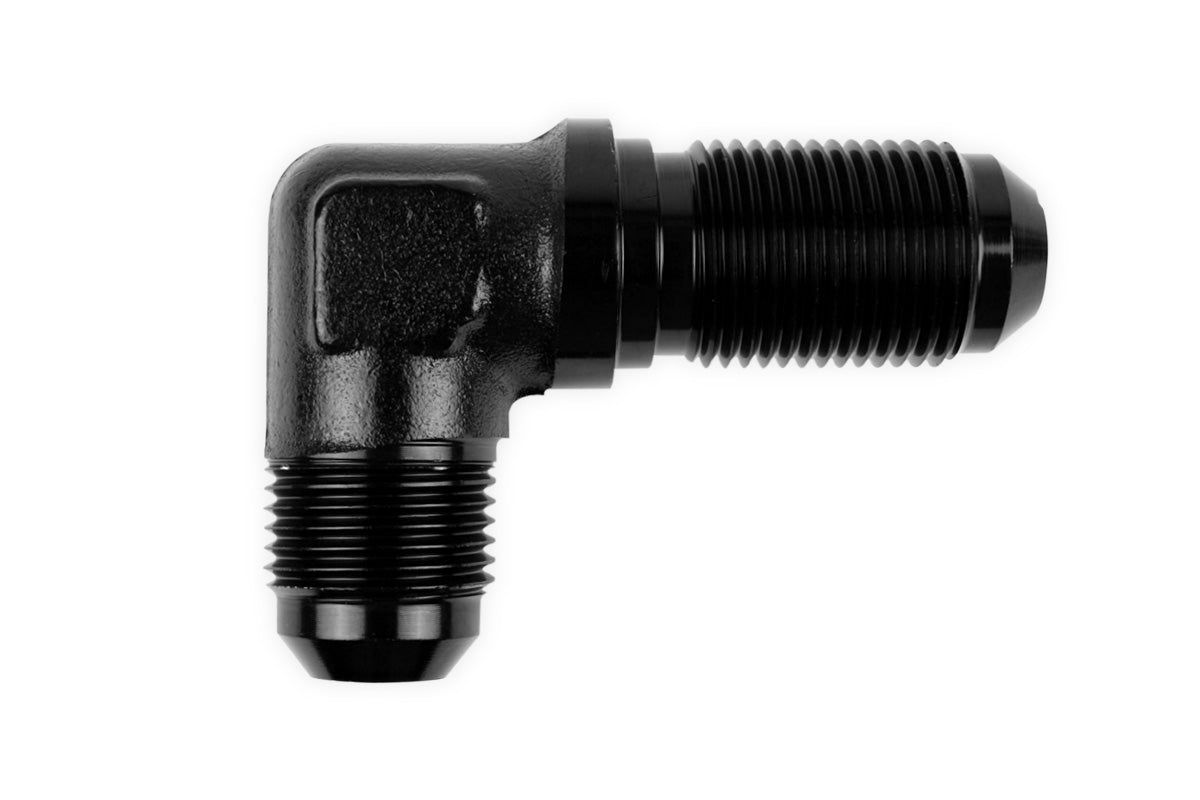

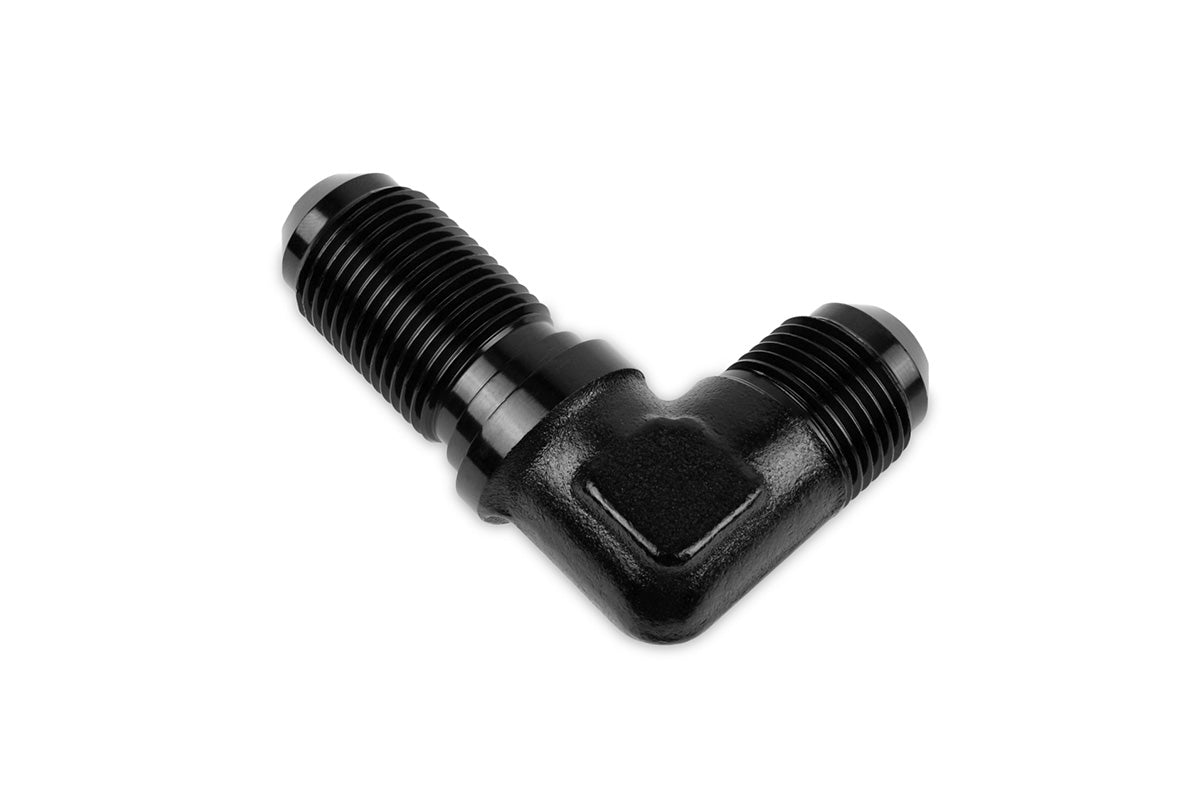

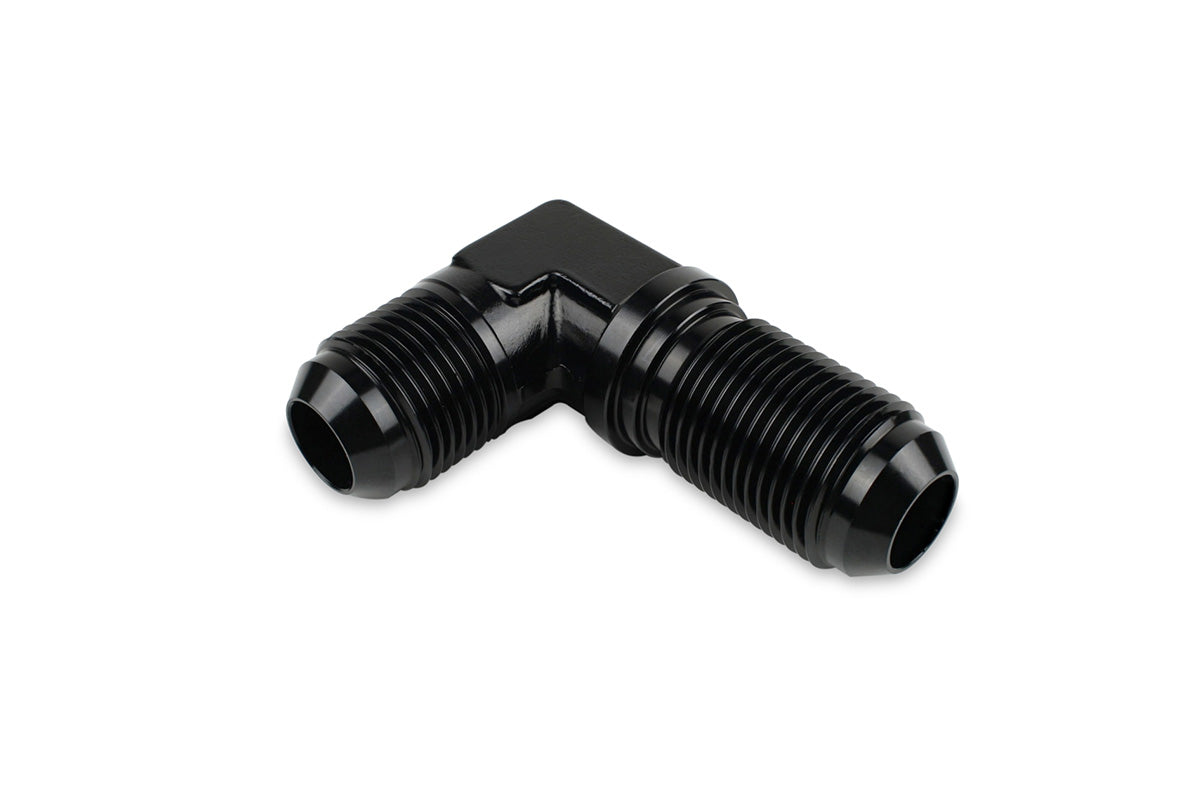

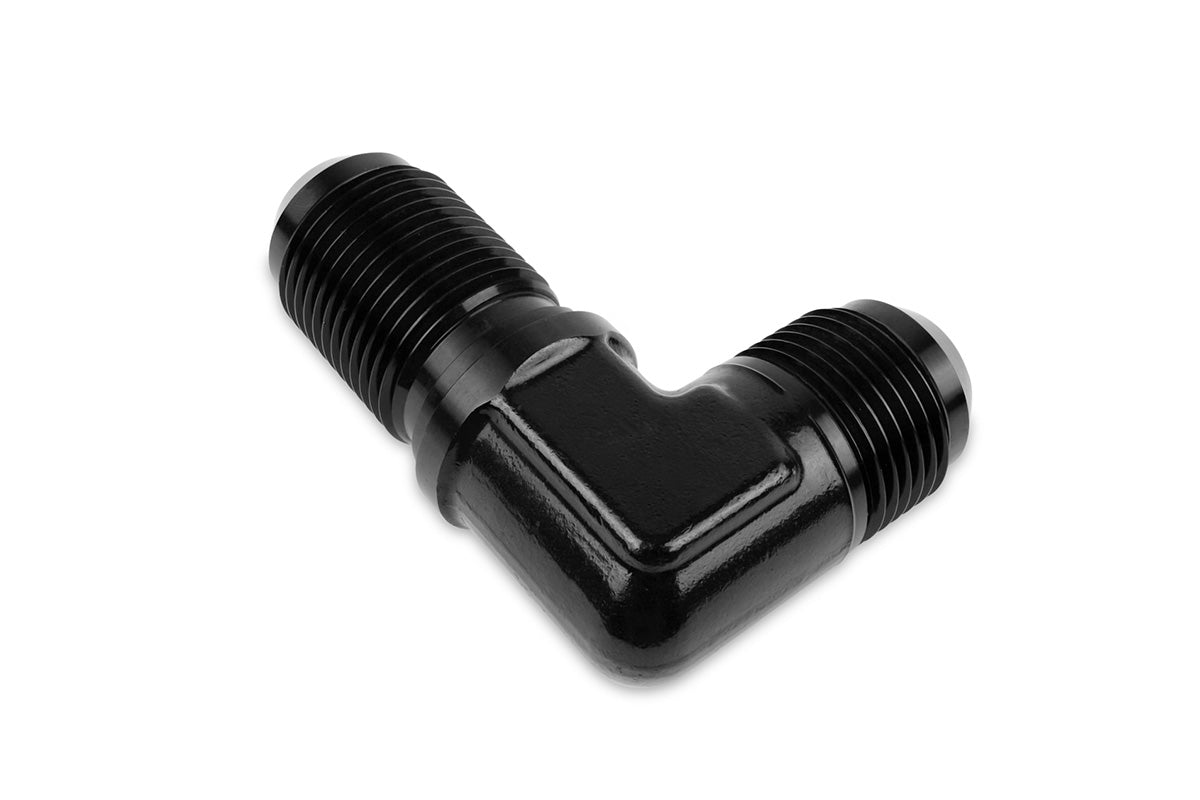

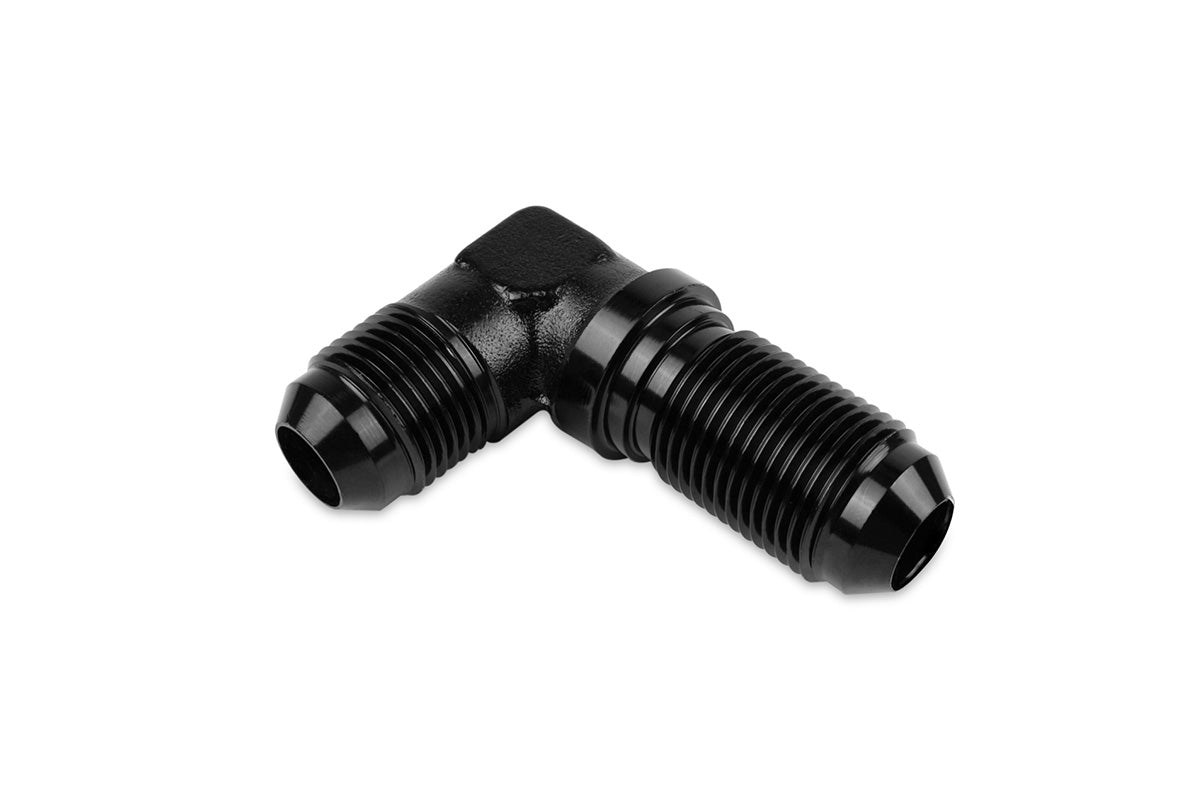

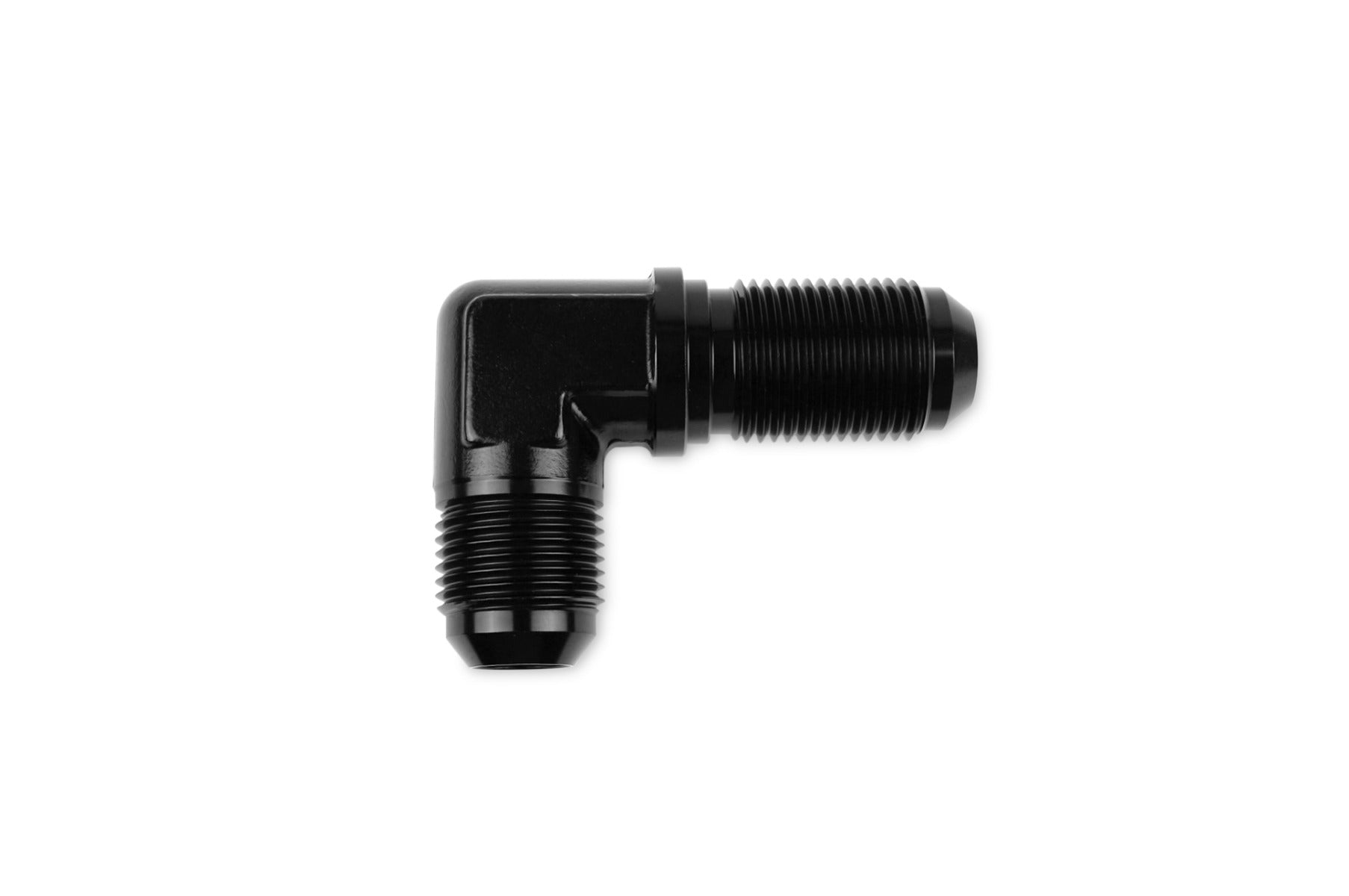

RaceFlux 90-degree Bulkhead Adapter Fitting

When a line needs to turn immediately after passing through a panel — a trunk-mounted fuel system feeding forward, or a firewall pass-through that has to hug the panel — this 90-degree RaceFlux bulkhead adapter makes the turn at the panel itself instead of forcing a tight hose bend on the other side. Male 37-degree AN flares on both sides accept a hose end on each face.

CNC-machined from 6061-T6 aluminum with a Type II black anodized finish, it protects the line from chafing while keeping the routing tight and clean.

Key Features

• 90-degree male-to-male AN flare bulkhead adapter for firewalls and body panels
• Turns the line at the panel — no tight hose bends after the pass-through
• Protects lines from chafing at panel pass-throughs
• CNC-machined 6061-T6 aluminum, Type II black anodized
• Industry-standard 37-degree JIC sealing surfaces

Specifications

Fitment & Compatibility

• Universal fit for any firewall, trunk floor, or body panel pass-through where the line turns at the panel
• Compatible with engine oil, gear oil, transmission fluid, brake fluid, coolant, gasoline, E85 and ethanol blends, methanol, racing fuels, power steering fluid, air, and vacuum
• Common uses: trunk-mounted fuel cells and surge tanks, firewall fuel and oil pass-throughs, catch can routing

Note: Each bulkhead fitting requires one RaceFlux AN bulkhead nut, sold separately. Optional PTFE washers (also sold separately) create a water-tight seal and protect painted panels. Select your AN size from the dropdown.
