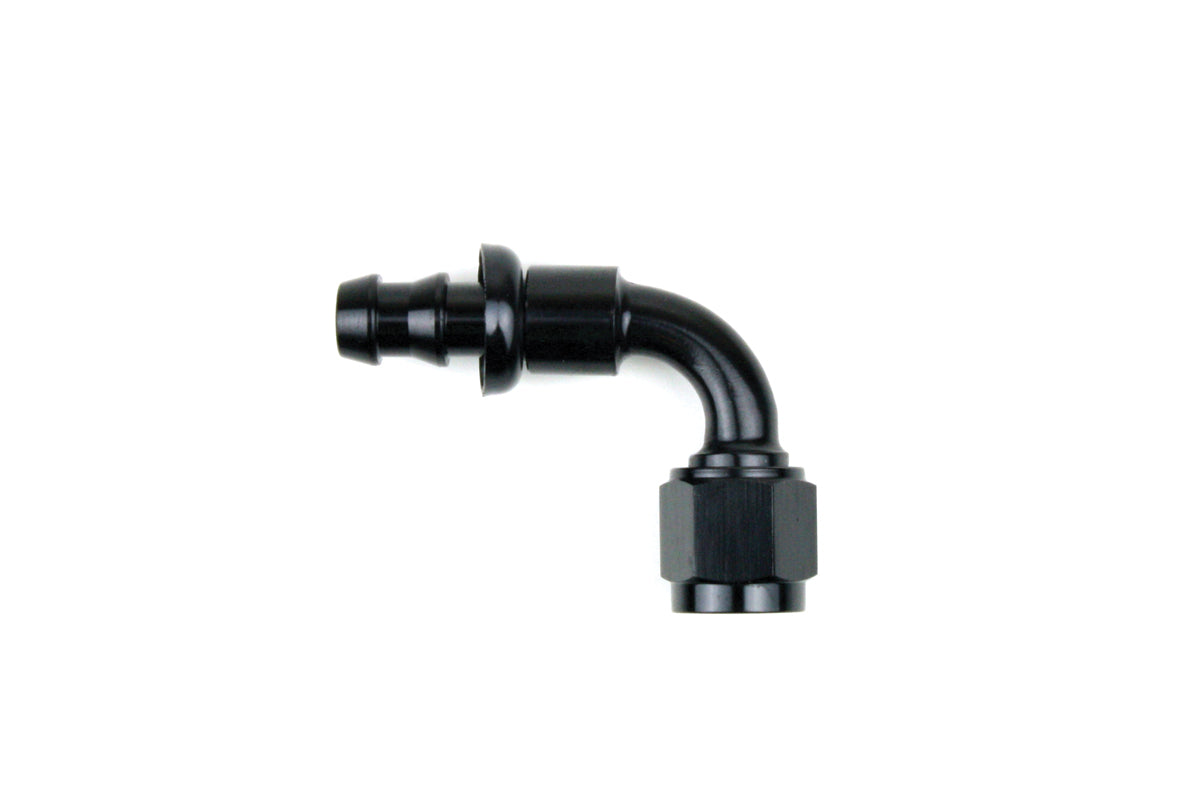

RaceFlux 90-Degree Push-Lock Hose End Fitting, Barb to AN Female
RaceFlux 90-Degree Push-Lock Hose End Fitting, Barb to AN Female
The hard corner for push-lock lines: this 90-degree hose end lets soft rubber or socketless hose turn immediately at the connection — off a catch can port, out of a transmission cooler, or over a chassis rail — without the kink a straight fitting would force. Installation is tool-free: warm the hose, add a little lubricant, push it onto the barb, and it locks in place.
Machined from black anodized aluminum, it's 36% lighter than traditional screw-type line fittings.
Key Features
- 90-degree push-lock hose end — barb to female AN flare
- Turns the line at the connection to prevent kinks in tight routing
- Tool-free installation: hose pushes on with heat and lubricant, then locks in place
- 36% lighter than traditional screw-type line fittings
- Lightweight black anodized aluminum construction
Specifications
| Material | Black anodized aluminum |
| Fitting Angle | 90° |
| Connection | Push-lock barb to female AN flare (37° JIC) |
| Max Temperature (assembled) | 300°F with RaceFlux PH-series hose |
| Max Pressure (assembled) | 150–300 psi depending on hose size |
Fitment & Compatibility
- For use with RaceFlux PH-series push-lock hose and other soft rubber fuel, transmission, and PCV hose
- Common uses: fuel feed and return lines, transmission cooler lines, PCV and breather plumbing, catch can lines
- Select your barb and AN size combination from the dropdown
Note: Use a hose clamp on any line running 10 psi or higher to ensure the hose cannot back off the barb. Not for use with braided AN hose or PTFE hose — those need DF-series or TF-series hose ends respectively.
