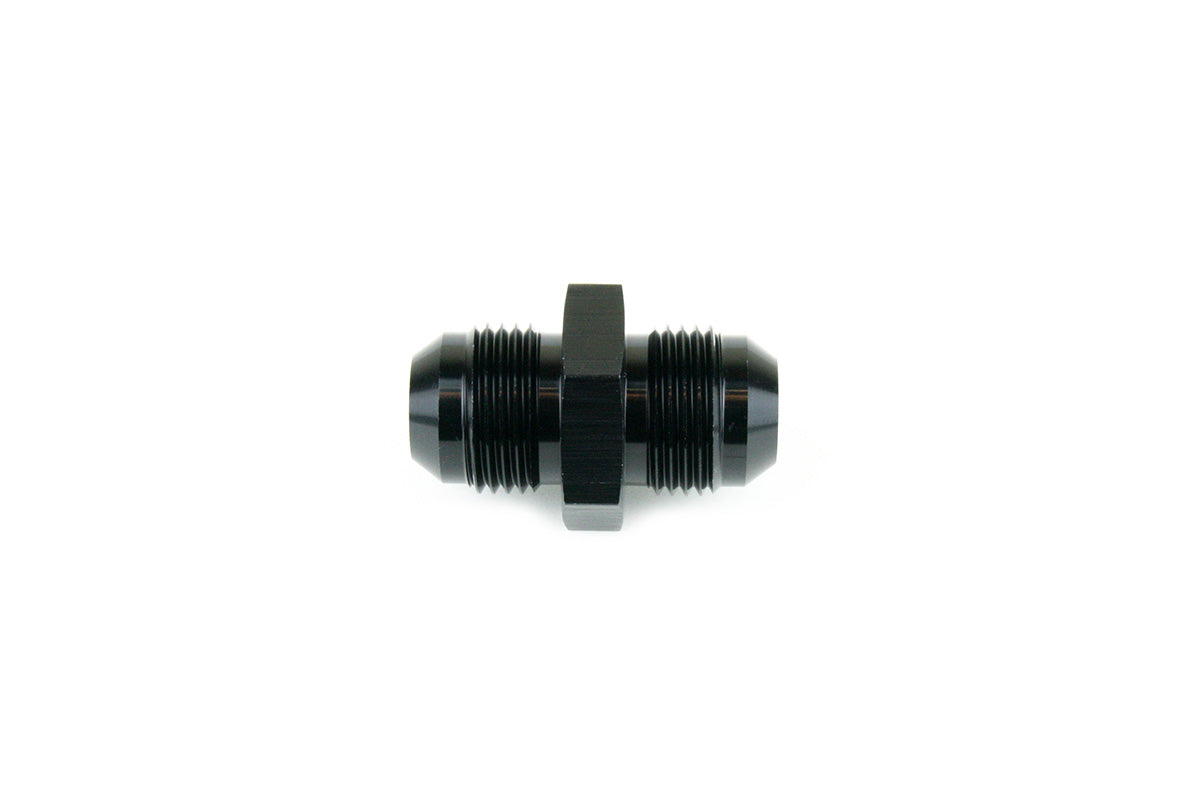

RaceFlux AN Male Flare Union
RaceFlux AN Male Flare Union
The RaceFlux AN male flare union joins two female AN hose ends or fittings in a straight line — the simplest way to extend a run, splice two finished lines, or connect a hose to an inline component. The connection seals metal-to-metal on the 37-degree flares, so there are no O-rings to age, swell, or blow out.
That solid one-piece construction is why this union carries a 3,000 psi rating — triple what sealed swivel fittings handle — machined from 6061-T6 aluminum with a Type II black anodized finish.
Key Features
- Straight union, male AN / JIC 37-degree flare on both ends
- Solid one-piece construction rated to 3,000 psi
- Machined from lightweight 6061-T6 aluminum, Type II black anodized
- AN threads and 37° flares per SAE AS4395; anodizing per ISO 7599
- Fully reusable
- 1-year manufacturer's warranty
Specifications
| Connection | Male AN / JIC 37° flare to male AN / JIC 37° flare |
| Fitting Angle | Straight |
| Body Material | 6061-T6 aluminum, Type II black anodized |
| Seals | None — metal-to-metal 37° flare seal |
| Max Operating Pressure | 3,000 psi (206.8 bar) |
| Operating Temperature | -40°F to 302°F (-40°C to 150°C) |
| Standards | SAE AS4395 (AN threads & 37° flares), ISO 7599 (anodizing) |
Fitment & Compatibility
- Joins any two standard female AN / JIC 37° flare connections of matching size
- Compatible with gasoline, racing fuels, E85+ and ethanol blends, methanol, nitromethane, alcohol, brake fluid, engine oil, gear oil, transmission fluid, power steering fluid, coolant, water, nitrous oxide, air, and vacuum
- Suitable for fuel lines (in-tank or external), breather and vent lines, gauge and sensor lines, low-pressure hydraulic return lines, coolant lines, high-temperature applications, and vacuum lines
