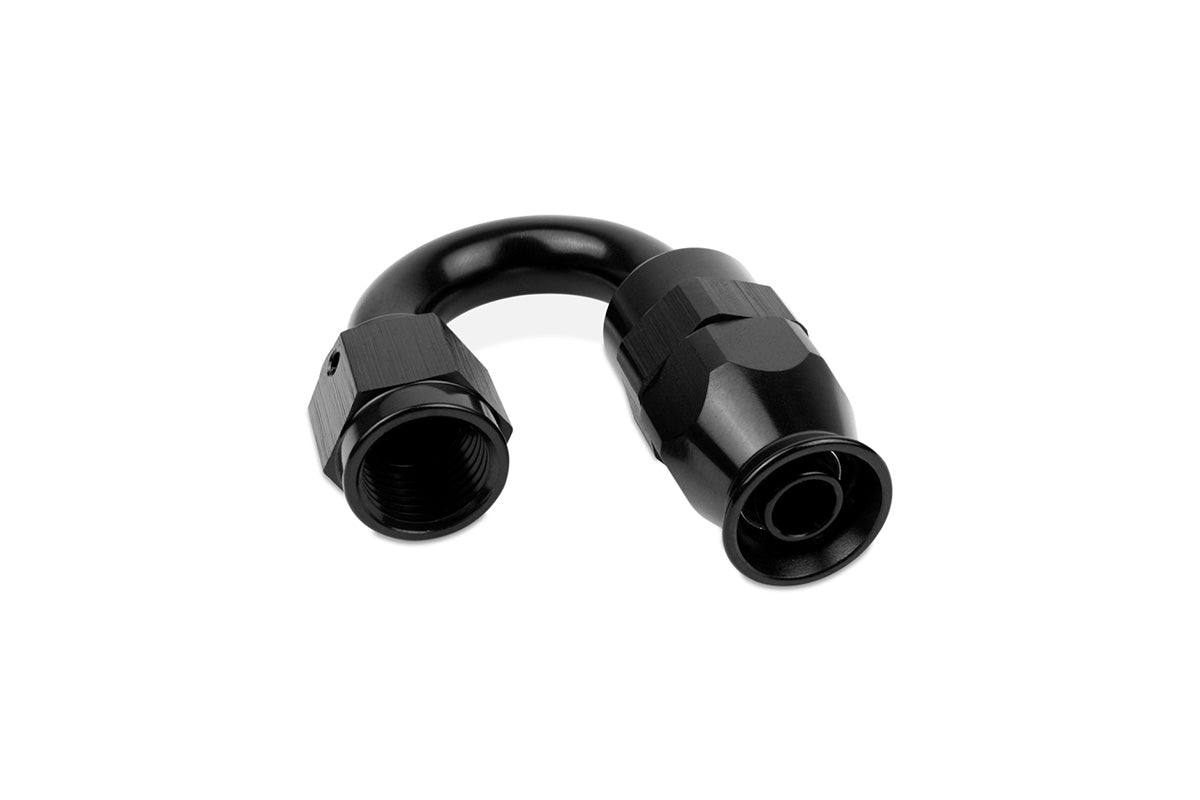

RaceFlux PTFE 180-Degree Hose End Fitting, Aluminum

For PTFE lines that need to double back completely — fuel rail crossovers, tight reservoir returns, and U-turn routing — this 180-degree aluminum hose end makes the turn without kinking the hose. Anodized aluminum construction keeps the weight down versus steel T-series fittings, while the compression ferrule design bites the PTFE liner for a secure, leak-free termination. The output side is a standard female 37-degree JIC swivel nut, so it threads onto any male AN fitting.

PTFE lines are the right call where rubber hose falls short — fuel systems where permeation matters and anywhere chemical resistance is critical — and these fittings are fully reusable when it's time to rebuild a line.

Key Features

• 180-degree hose end for smooth-bore PTFE braided hose
• Lightweight anodized aluminum construction

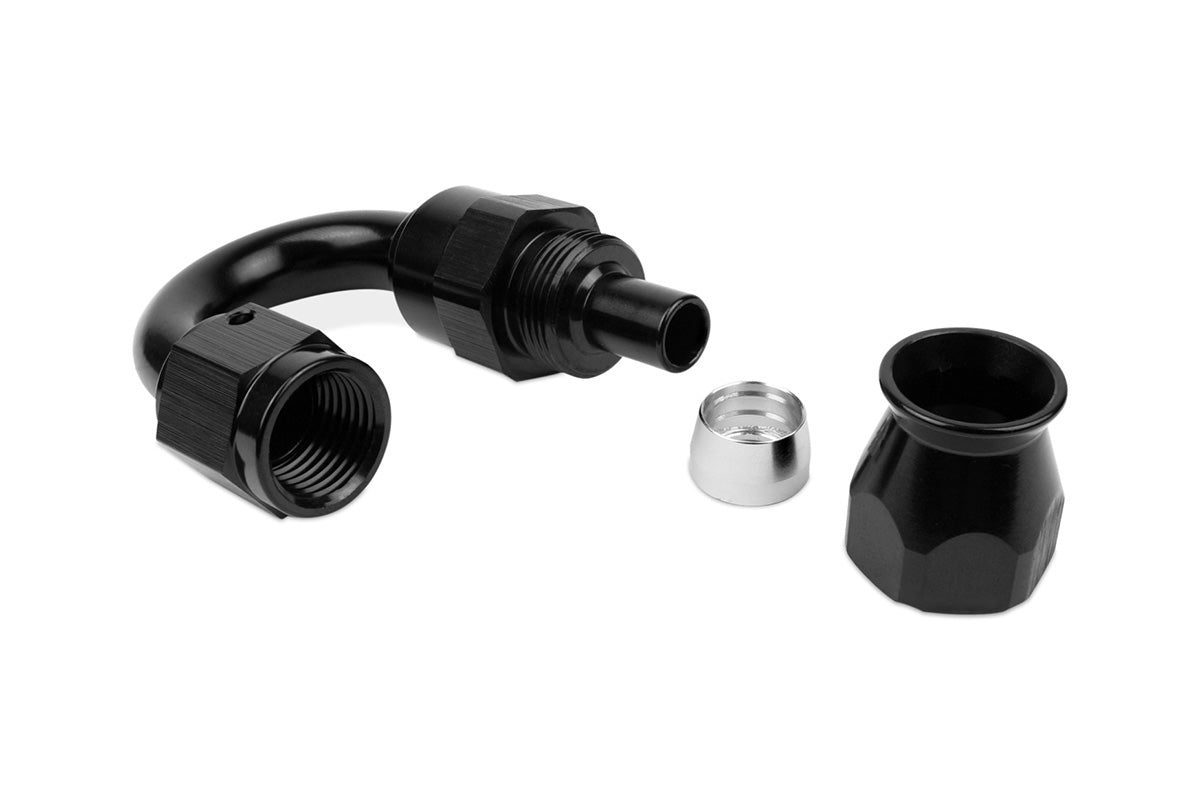

• Compression sleeve/ferrule grips the PTFE liner for a leak-free seal
• Female 37-degree JIC swivel nut output threads onto any male AN fitting
• Reusable and easy to assemble
• Lifetime manufacturer's warranty

Specifications

Fitment & Compatibility

• For use with RaceFlux TH-series smooth-bore PTFE hose and any industry-standard PTFE-lined stainless braided hose
• Compatible with gasoline, E85 and ethanol blends, methanol, nitromethane, racing fuels, engine oil, gear oil, transmission fluid, coolant, air, and vacuum
• Suited for fuel lines (in-tank and external), breather and vent lines, gauge and sensor lines, and weight-sensitive builds

Note: For standard braided rubber hose, use RaceFlux DF-series hose ends instead — PTFE and rubber hose ends are not interchangeable. Select your AN size from the dropdown.
