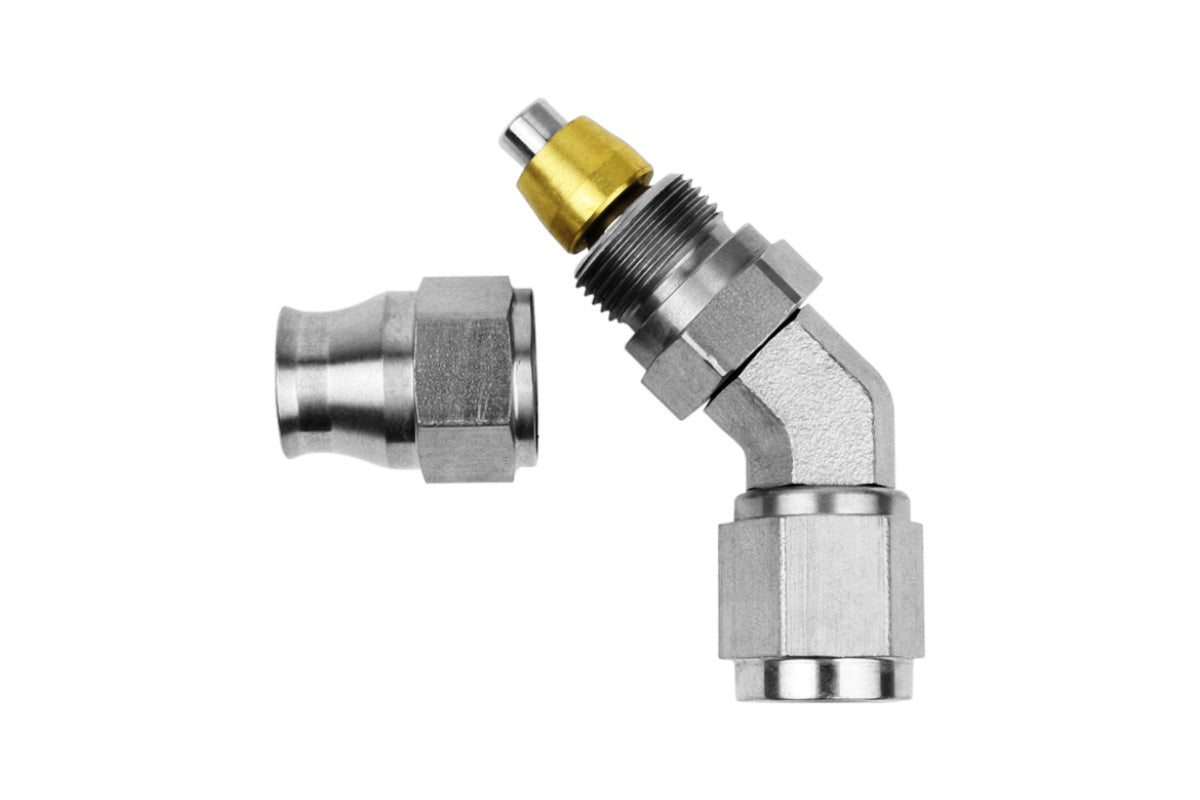

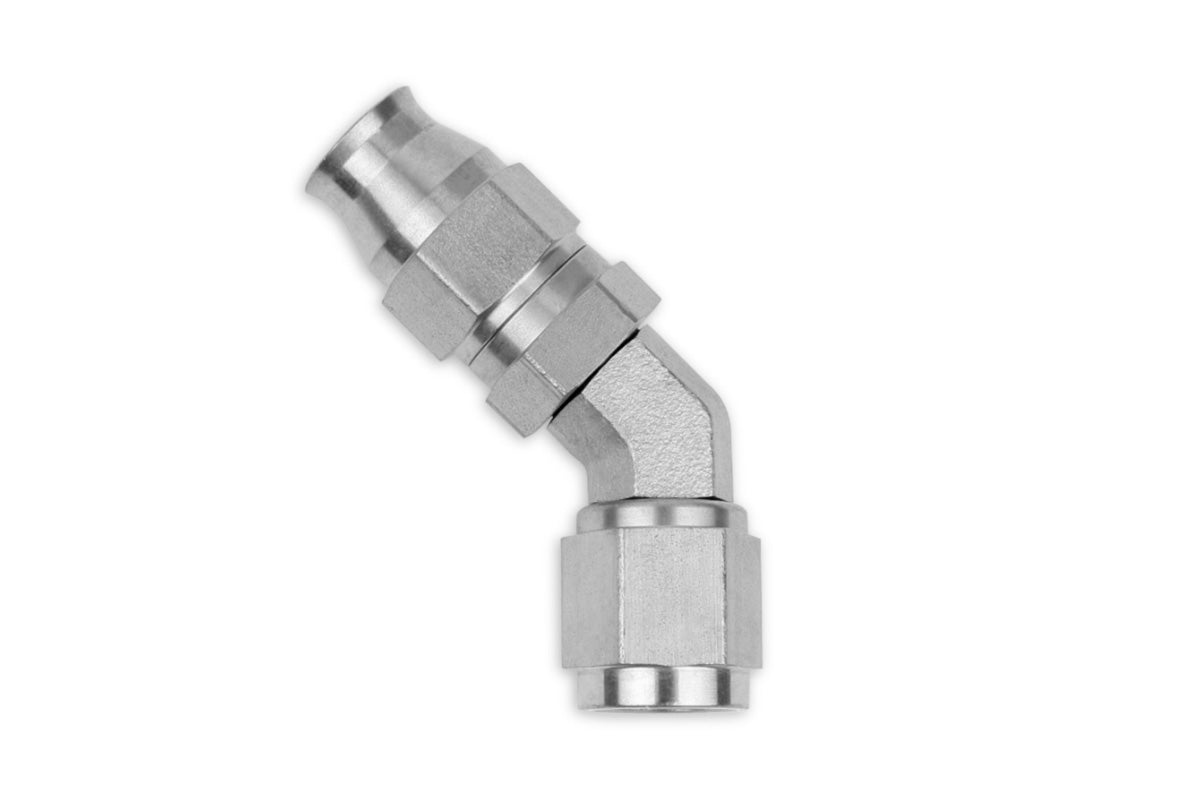

RaceFlux PTFE 45-Degree Double Swivel Hose End Fitting, Stainless Steel

The corrosion-proof way to clock a PTFE bend: this 45-degree double swivel hose end in full stainless steel swivels even after the line is assembled, so you can aim the bend exactly where it needs to go instead of fighting the hose's natural twist. The compression ferrule design delivers a secure, leak-free termination on smooth-bore PTFE braided hose, and the female 37-degree JIC swivel nut output threads onto any male AN fitting.

Stainless is the pick for exposed routing, marine and off-road builds, and brake or clutch lines that see weather. Fully reusable, so rebuilding a line down the road doesn't mean new fittings.

Key Features

• 45-degree double swivel hose end for smooth-bore PTFE braided hose
• Swivels after assembly for precise clocking of finished lines
• Stainless steel construction for maximum corrosion resistance
• Compression sleeve/ferrule grips the PTFE liner for a leak-free seal
• Female 37-degree JIC swivel nut output threads onto any male AN fitting
• Lifetime manufacturer's warranty

Specifications

Fitment & Compatibility

• For use with RaceFlux TH-series smooth-bore PTFE hose and any industry-standard PTFE-lined stainless braided hose
• Compatible with gasoline, E85 and ethanol blends, methanol, nitromethane, racing fuels, engine oil, gear oil, transmission fluid, coolant, air, and vacuum
• Suited for fuel lines, brake and clutch lines, breather and vent lines, and exposed or corrosion-prone routing

Note: For standard braided rubber hose, use RaceFlux DF-series hose ends instead — PTFE and rubber hose ends are not interchangeable. Select your AN size from the dropdown.
