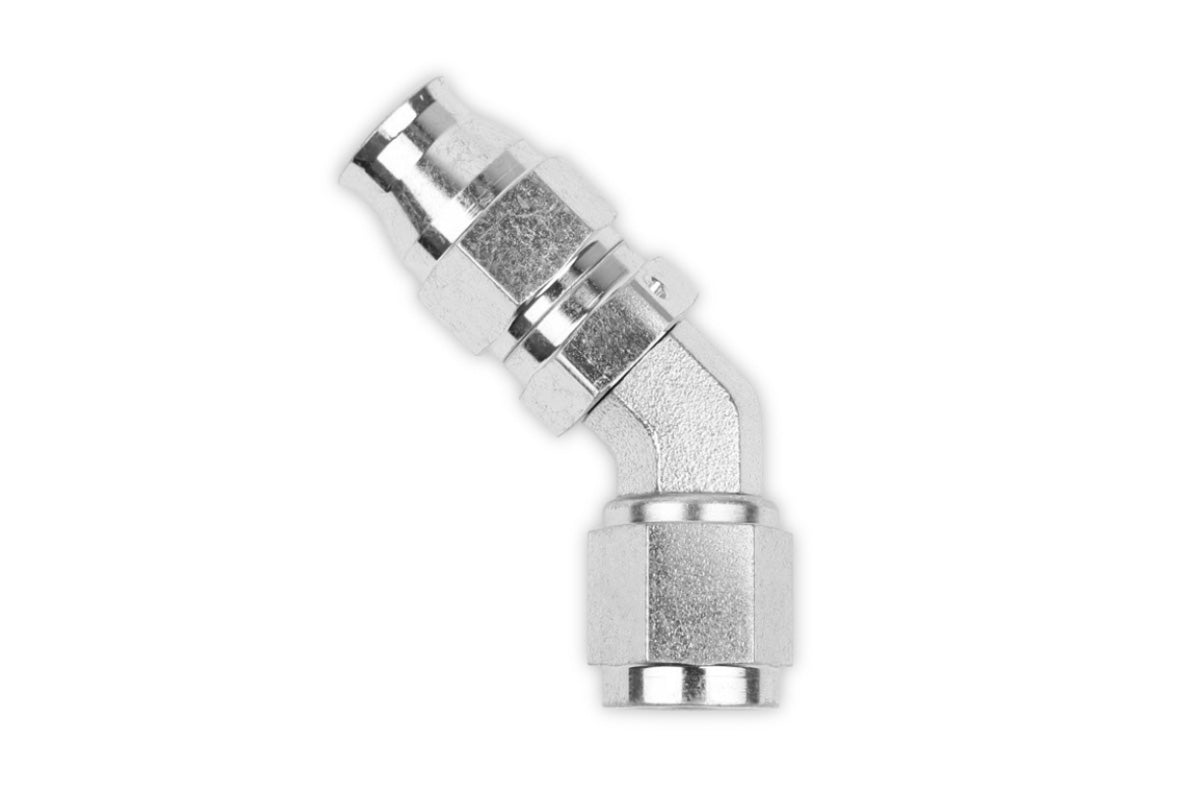

RaceFlux PTFE 45-Degree Double Swivel Hose End Fitting, Steel

The hardest part of building PTFE lines is getting angled fittings clocked right — and this 45-degree double swivel hose end solves it. The fitting swivels even after the line is assembled, so you can aim the bend exactly where it needs to go instead of fighting the hose's natural twist. Zinc-plated steel construction with a compression ferrule design delivers a secure, leak-free termination on smooth-bore PTFE braided hose, and the female 37-degree JIC swivel nut output threads onto any male AN fitting.

Fully reusable, so rebuilding or re-routing a line down the road doesn't mean new fittings.

Key Features

• 45-degree double swivel hose end for smooth-bore PTFE braided hose
• Swivels after assembly for precise clocking of finished lines

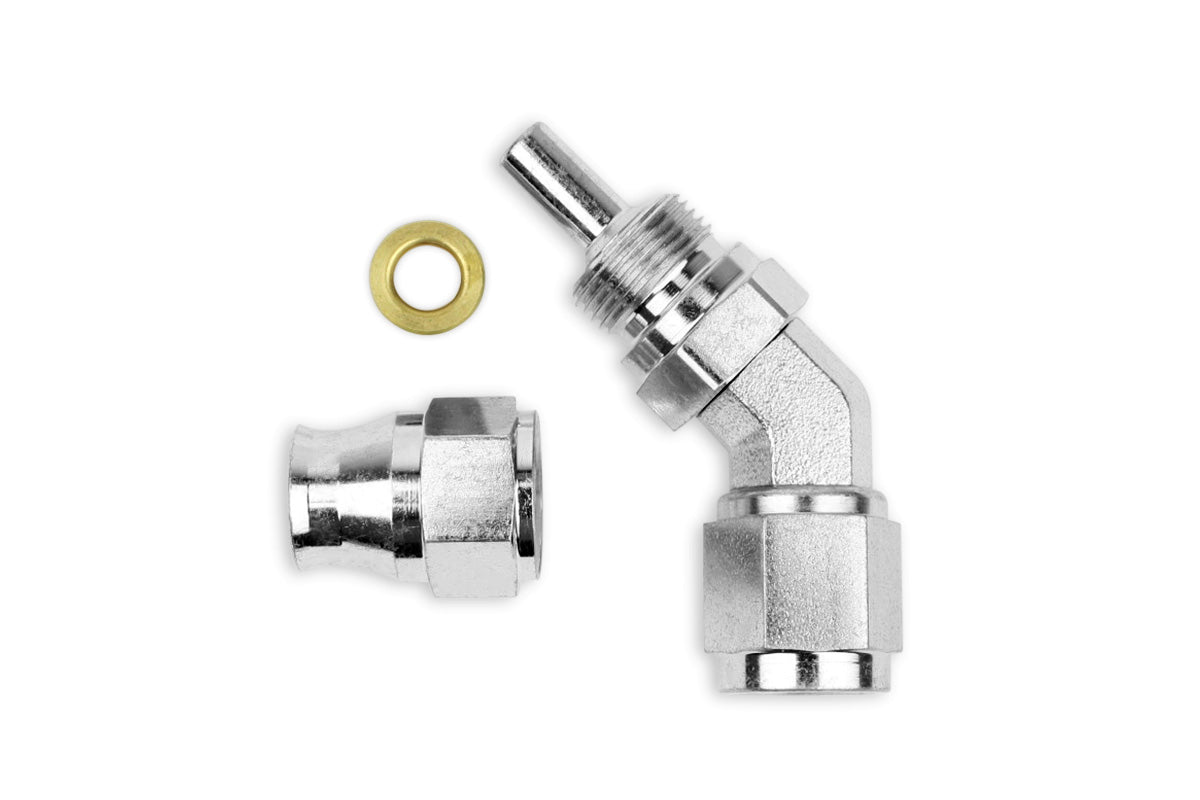

• Compression sleeve/ferrule grips the PTFE liner for a leak-free seal
• Female 37-degree JIC swivel nut output threads onto any male AN fitting
• Zinc-plated steel construction; reusable and easy to assemble
• Lifetime manufacturer's warranty

Specifications

Fitment & Compatibility

• For use with RaceFlux TH-series smooth-bore PTFE hose and any industry-standard PTFE-lined stainless braided hose
• Compatible with gasoline, E85 and ethanol blends, methanol, nitromethane, racing fuels, engine oil, gear oil, transmission fluid, coolant, air, and vacuum
• Suited for fuel lines (in-tank and external), breather and vent lines, gauge and sensor lines, and low-pressure hydraulic returns

Note: For standard braided rubber hose, use RaceFlux DF-series hose ends instead — PTFE and rubber hose ends are not interchangeable. Select your AN size from the dropdown.
