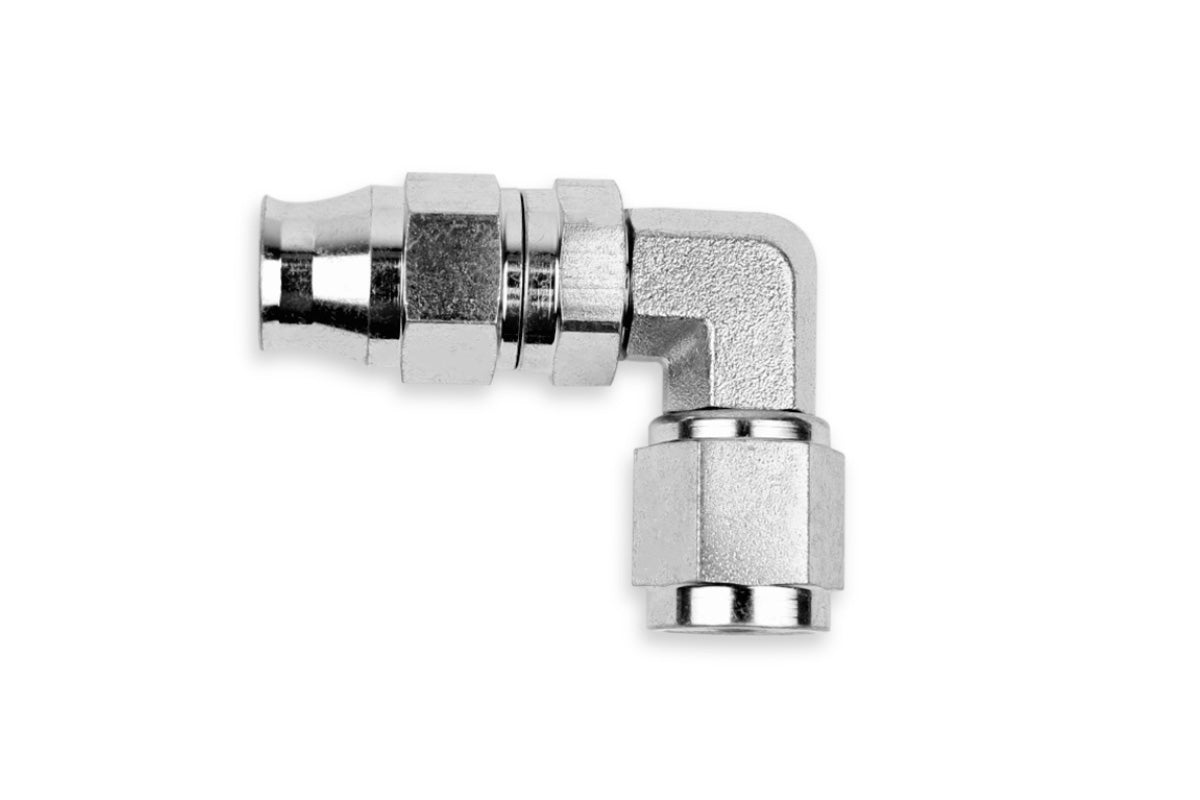

RaceFlux PTFE 90-Degree Double Swivel Hose End Fitting, Steel

Hard corners in PTFE lines demand a fitting that can be aimed after assembly, and this 90-degree double swivel hose end delivers exactly that: torque the line together, then rotate the fitting to point the corner where the routing needs it. Zinc-plated steel construction with a compression ferrule design delivers a secure, leak-free termination on smooth-bore PTFE braided hose, and the female 37-degree JIC swivel nut output threads onto any male AN fitting.

Fully reusable, so rebuilding or re-routing a line down the road doesn't mean new fittings.

Key Features

• 90-degree double swivel hose end for smooth-bore PTFE braided hose
• Swivels after assembly for precise clocking of finished lines

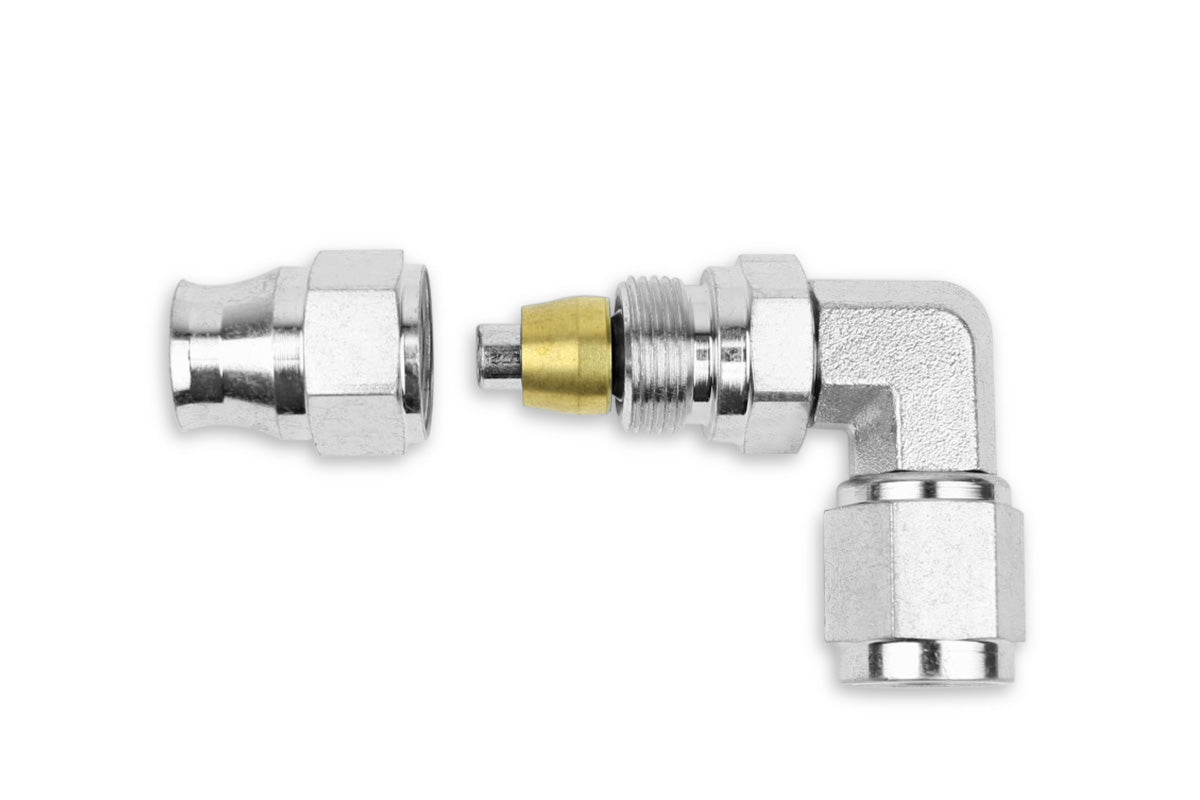

• Compression sleeve/ferrule grips the PTFE liner for a leak-free seal
• Female 37-degree JIC swivel nut output threads onto any male AN fitting
• Zinc-plated steel construction; reusable and easy to assemble
• Lifetime manufacturer's warranty

Specifications

Fitment & Compatibility

• For use with RaceFlux TH-series smooth-bore PTFE hose and any industry-standard PTFE-lined stainless braided hose
• Compatible with gasoline, E85 and ethanol blends, methanol, nitromethane, racing fuels, engine oil, gear oil, transmission fluid, coolant, air, and vacuum
• Suited for fuel lines (in-tank and external), breather and vent lines, gauge and sensor lines, and low-pressure hydraulic returns

Note: For standard braided rubber hose, use RaceFlux DF-series hose ends instead — PTFE and rubber hose ends are not interchangeable. Select your AN size from the dropdown.
