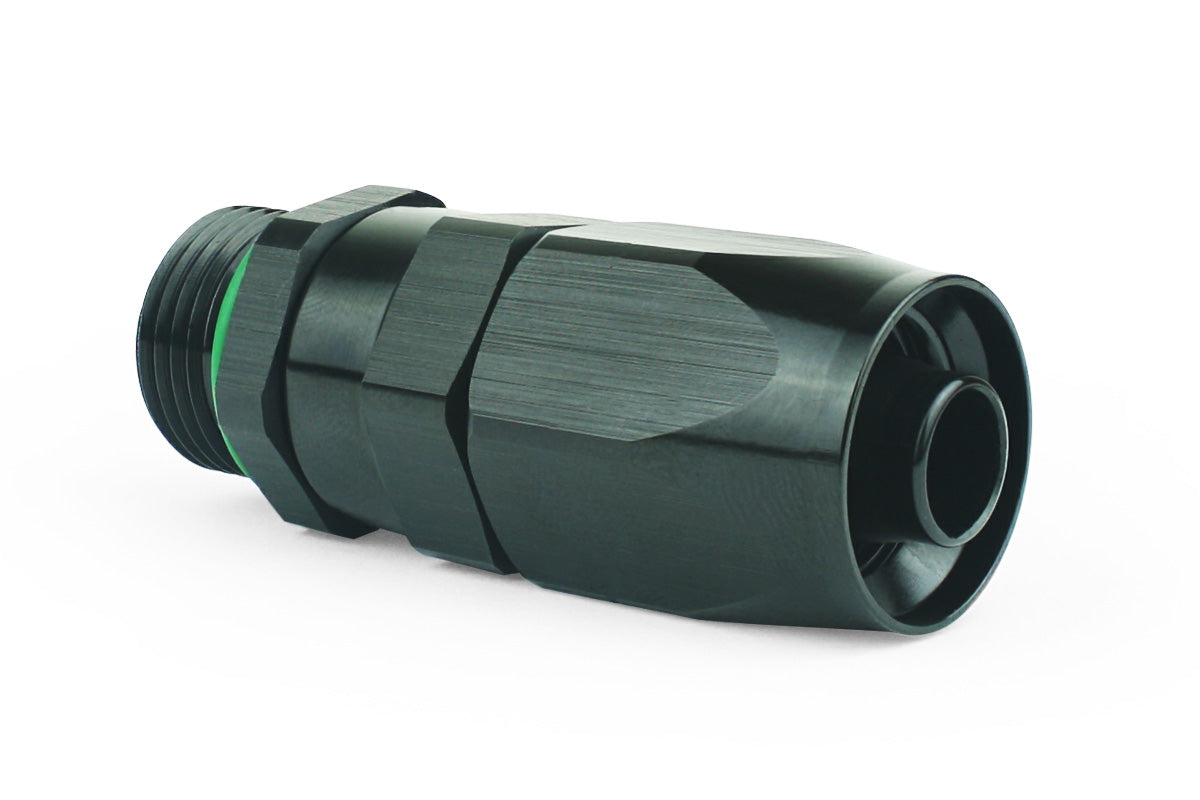

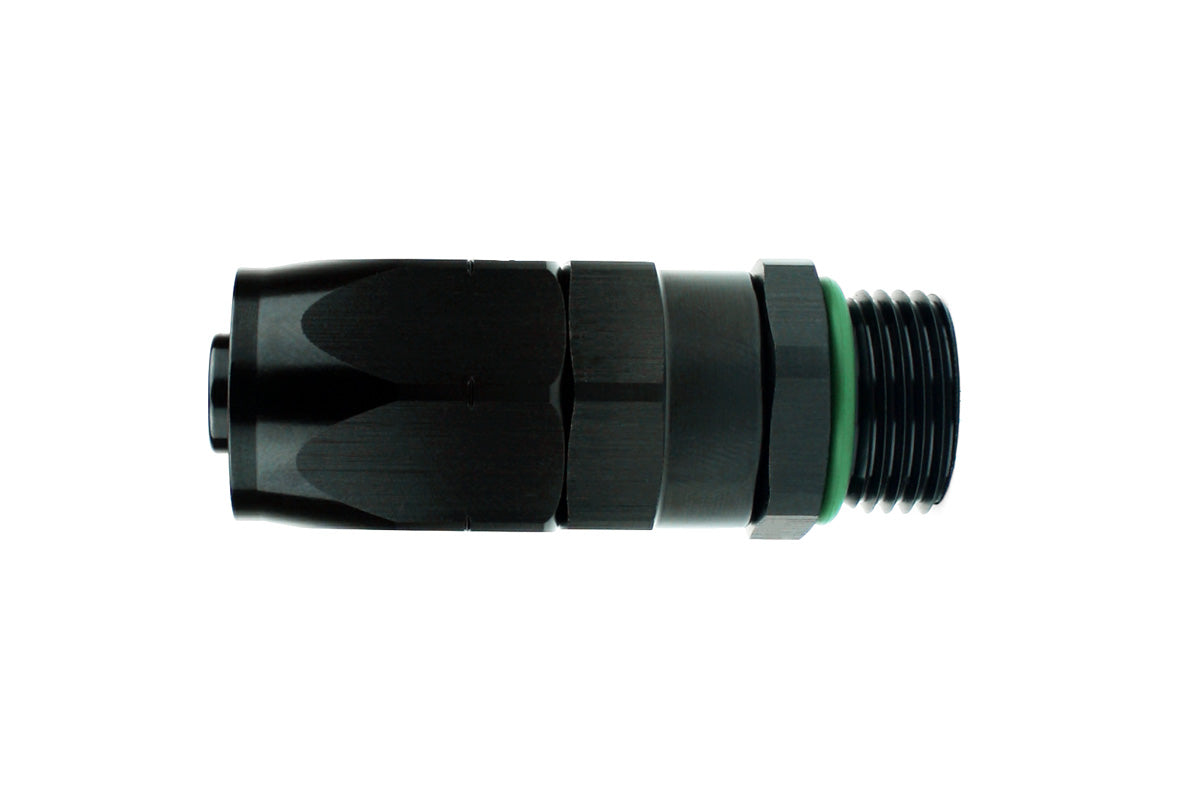

RaceFlux Straight AN Hose End to AN Male O-Ring Boss Fitting

The cleanest way to run braided hose into an ORB port: this hose end terminates directly in a male O-ring boss thread, so the line threads straight into oil coolers, thermostats, fuel logs, and pumps with no adapter fitting in between. One less connection means one less leak point, less weight, and more clearance.

The ORB end seals on a Viton O-ring against the port face — no thread sealant, no flare to gall, and it reseals reliably every time the line comes off. Like all RaceFlux D-series hose ends, it swivels for easy installation, uses a left-hand threaded socket that keeps the hose from backing out during assembly, and is machined from a single piece of 6061-T6 aluminum with zero welds or brazes.

Key Features

• Hose end with integrated male ORB output — threads directly into O-ring boss ports
• Viton O-ring seal on the ORB end — no sealant needed, reseals reliably
• Swivel design for easy installation and re-clocking of finished lines
• Left-hand threaded socket retains the hose while tightening
• One-piece machined 6061-T6 aluminum — no welds or brazes
• MilSpec Type II black anodized; reusable
• Lifetime manufacturer's warranty

Specifications

Fitment & Compatibility

• For use with any standard braided AN rubber hose, including RaceFlux RH1 and RH2 lightweight braided racing hose
• Compatible with gasoline, E85 and ethanol blends, diesel and biodiesel, methanol, racing fuels, engine oil, gear oil, transmission fluid, coolant, water, air, and vacuum
• Common uses: direct connections to ORB ports on oil coolers, remote filter mounts, thermostats, fuel pumps, and catch cans

Note: Not compatible with PTFE (Teflon) hose — use RaceFlux TF-series hose ends for PTFE lines. Select your size combination from the dropdown.
