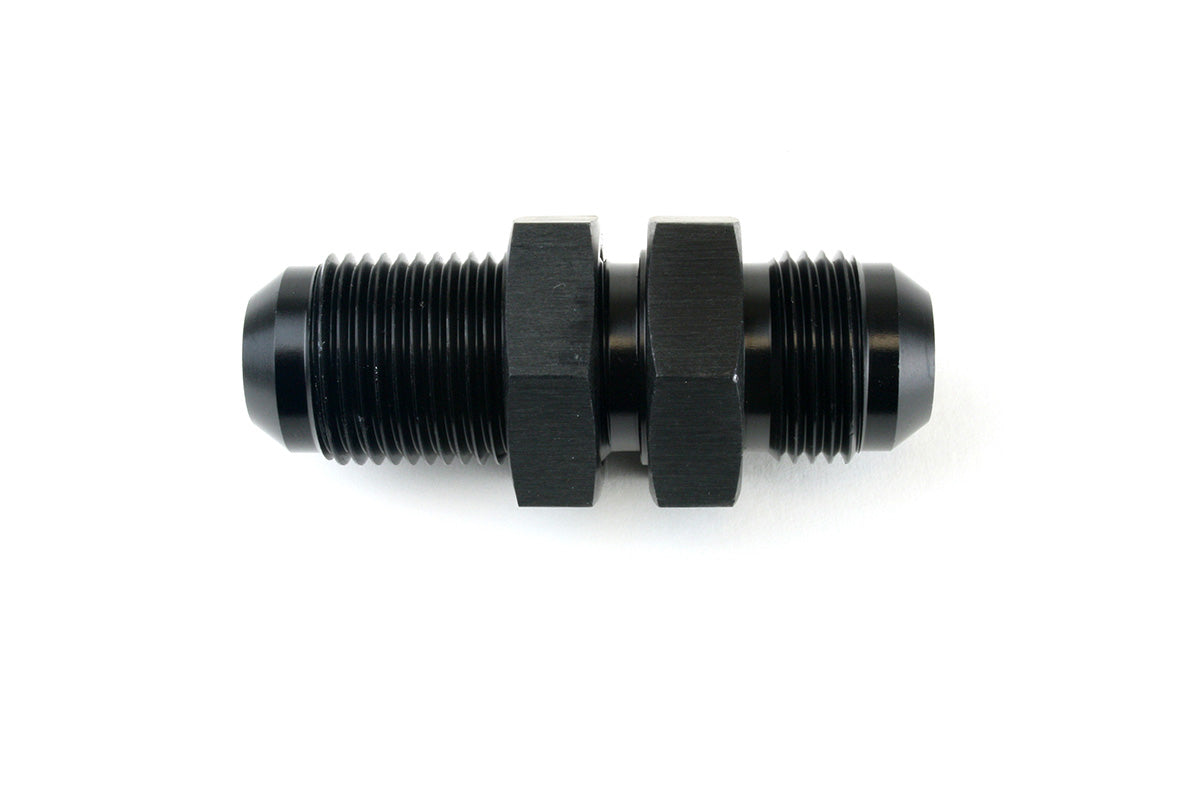

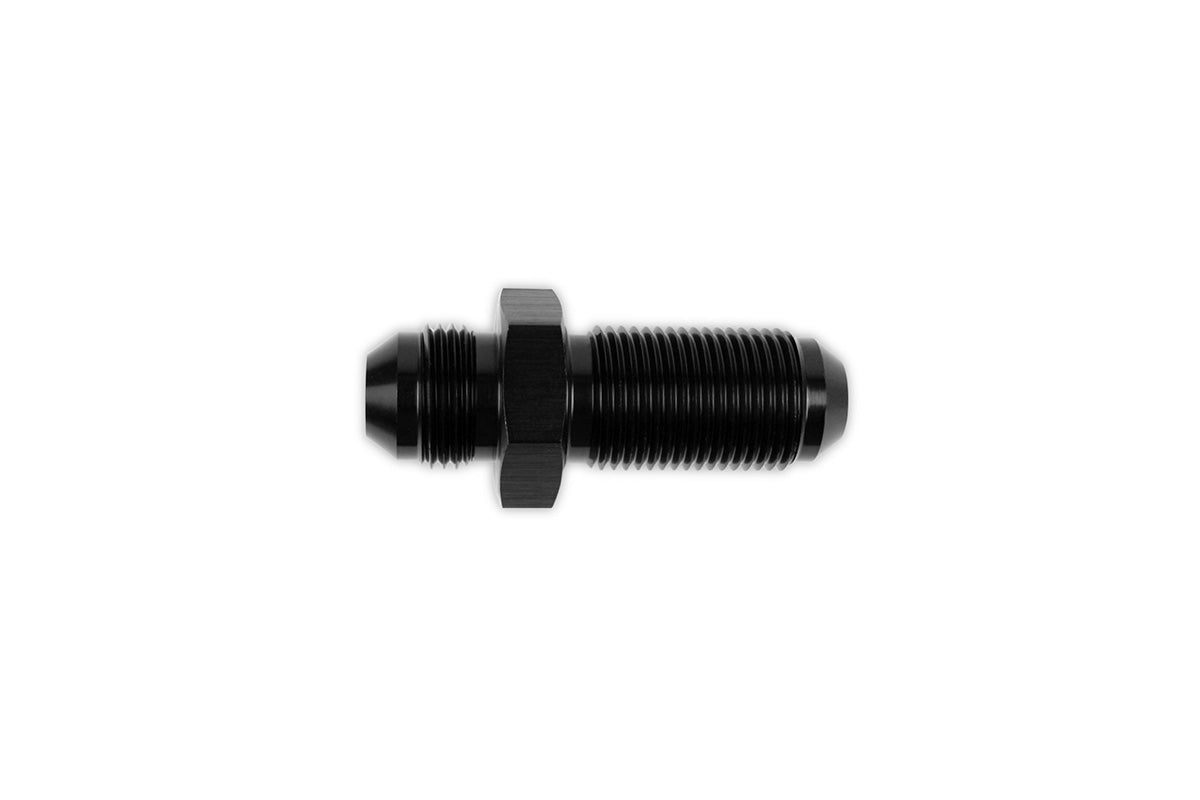

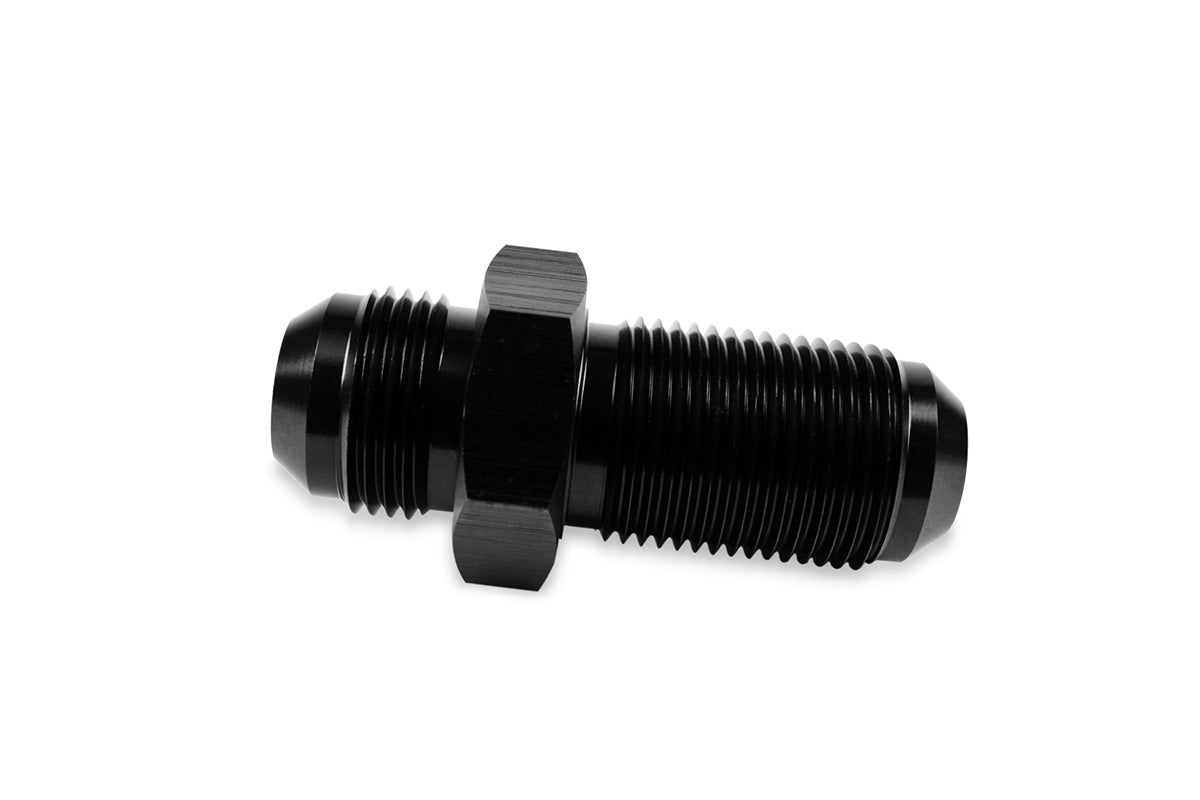

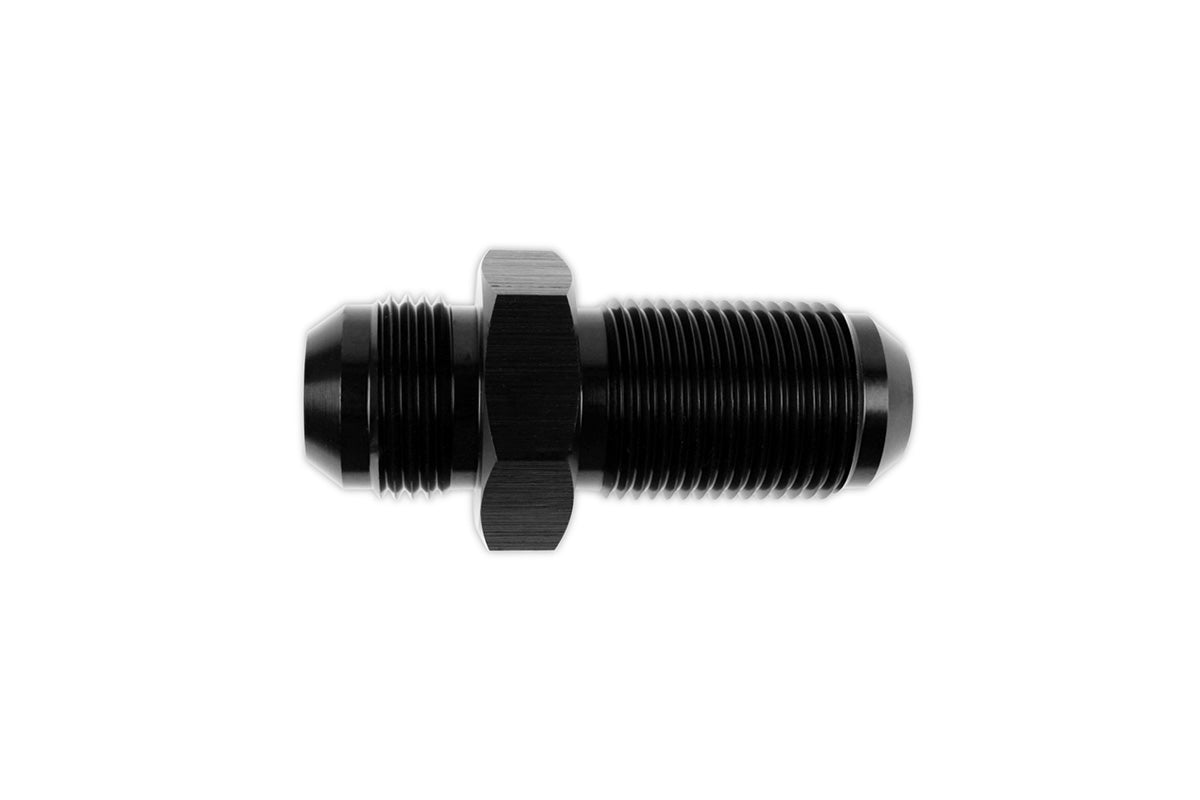

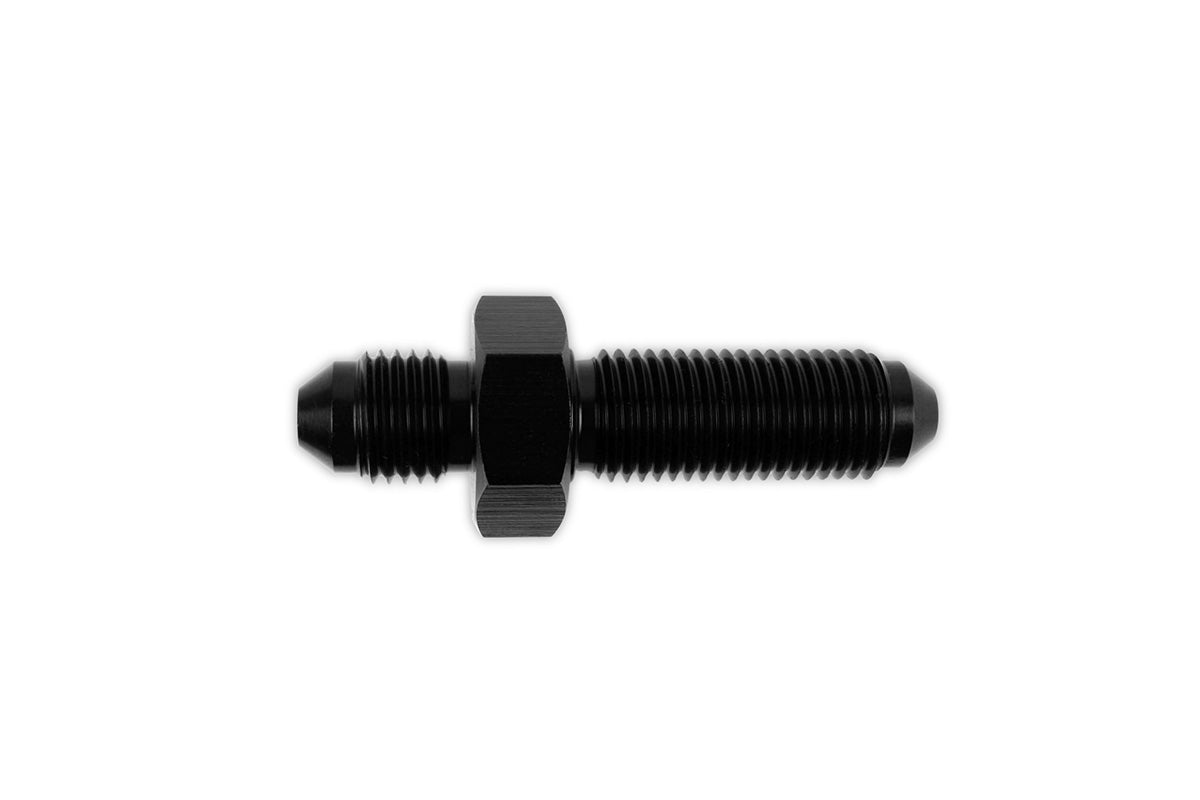

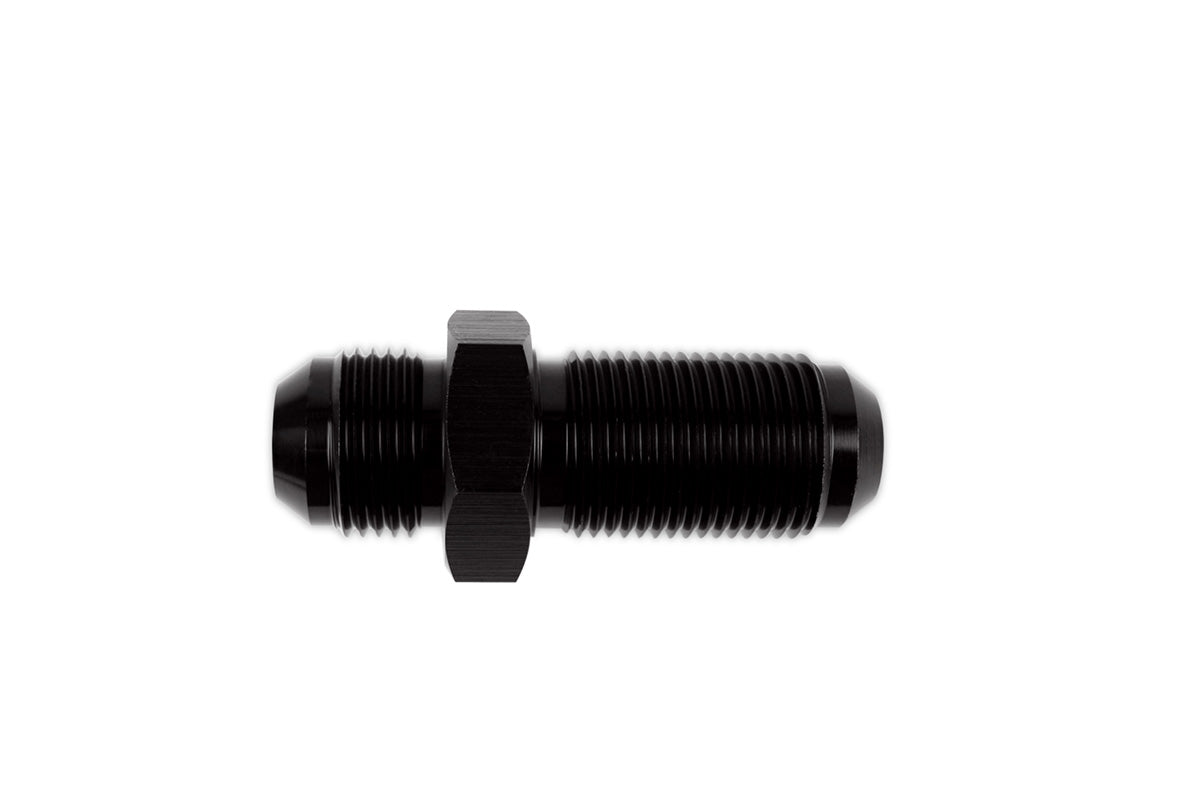

RaceFlux Straight Bulkhead Adapter Fitting

Running a line through a firewall, trunk floor, or body panel without a bulkhead fitting is asking for chafed hose and leaks. This RaceFlux straight bulkhead adapter passes the connection cleanly through the panel with a male 37-degree AN flare on each side, so you terminate a hose end on either face of the panel and the fitting takes the abuse instead of the line.

CNC-machined from 6061-T6 aluminum with a Type II black anodized finish and rated to 500°F, it handles everything from fuel system pass-throughs to hot-side oil plumbing.

Key Features

• Straight male-to-male AN flare bulkhead adapter for firewalls and body panels
• Protects lines from chafing at panel pass-throughs
• 500°F rating suits fuel, oil, and high-temperature plumbing
• CNC-machined 6061-T6 aluminum, Type II black anodized
• Industry-standard 37-degree JIC sealing surfaces

Specifications

Fitment & Compatibility

• Panel hole sizes: -3AN needs a 3/8" hole, -4AN 7/16", -6AN 9/16", -8AN 3/4", -10AN 7/8", -12AN 1-1/16"
• Compatible with engine oil, gear oil, transmission fluid, brake fluid, coolant, gasoline, E85 and ethanol blends, methanol, racing fuels, power steering fluid, air, and vacuum
• Common uses: fuel lines through trunk floors and firewalls, catch can and breather routing, gauge and sensor lines

Note: Each bulkhead fitting requires one RaceFlux AN bulkhead nut, sold separately. Optional PTFE washers (also sold separately) create a water-tight seal and protect painted panels. Select your AN size from the dropdown.
