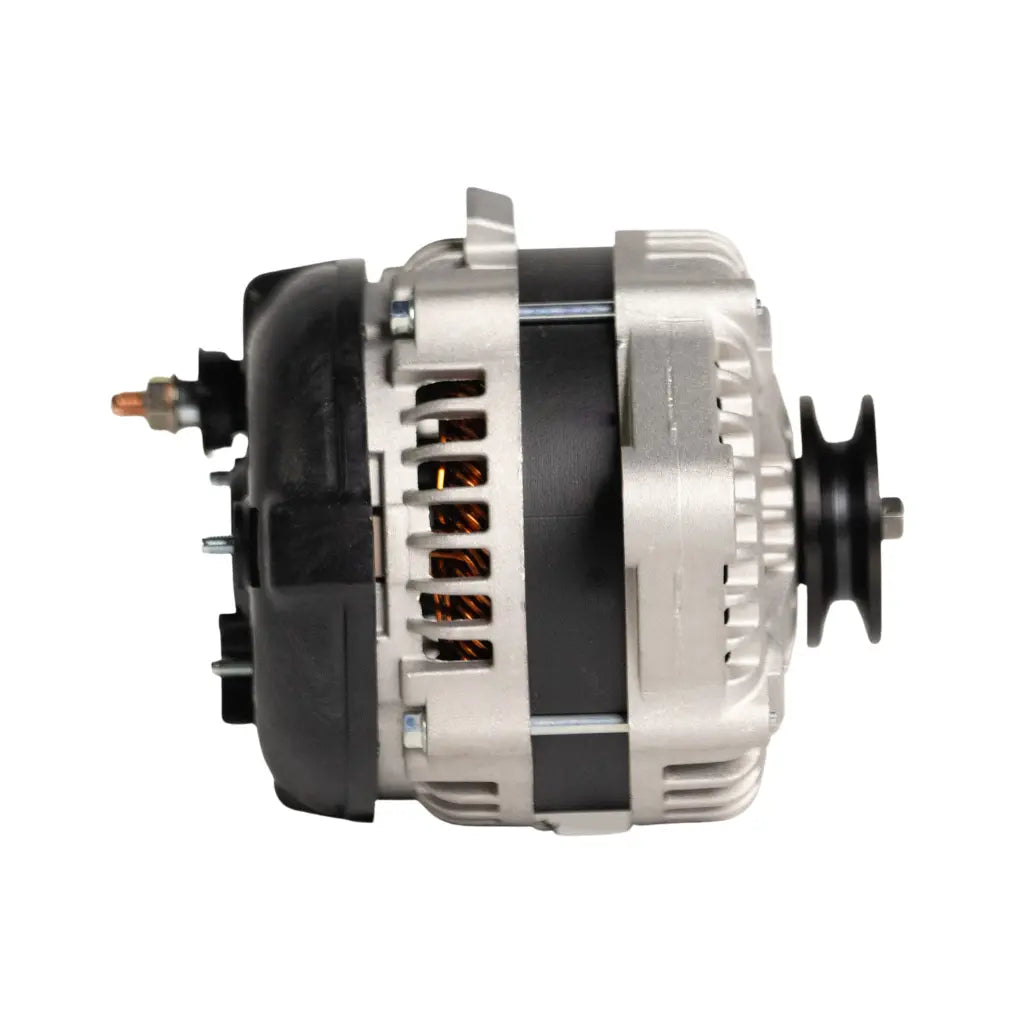

    Universal Fit High Output Alternator

    Upgrade your Universal Fit with a high-output alternator from JS Alternators. Built with hairpin (6-phase) technology for higher idle output and improved efficiency over conventional alternators.

    Key Features

    • Hairpin (6-Phase) Design — More output at idle, more efficient than conventional alternators
    • Premium Bearings — Built to withstand high engine RPM
    • Dual Plate Rectifier — 12 heavy-duty diodes for improved cooling

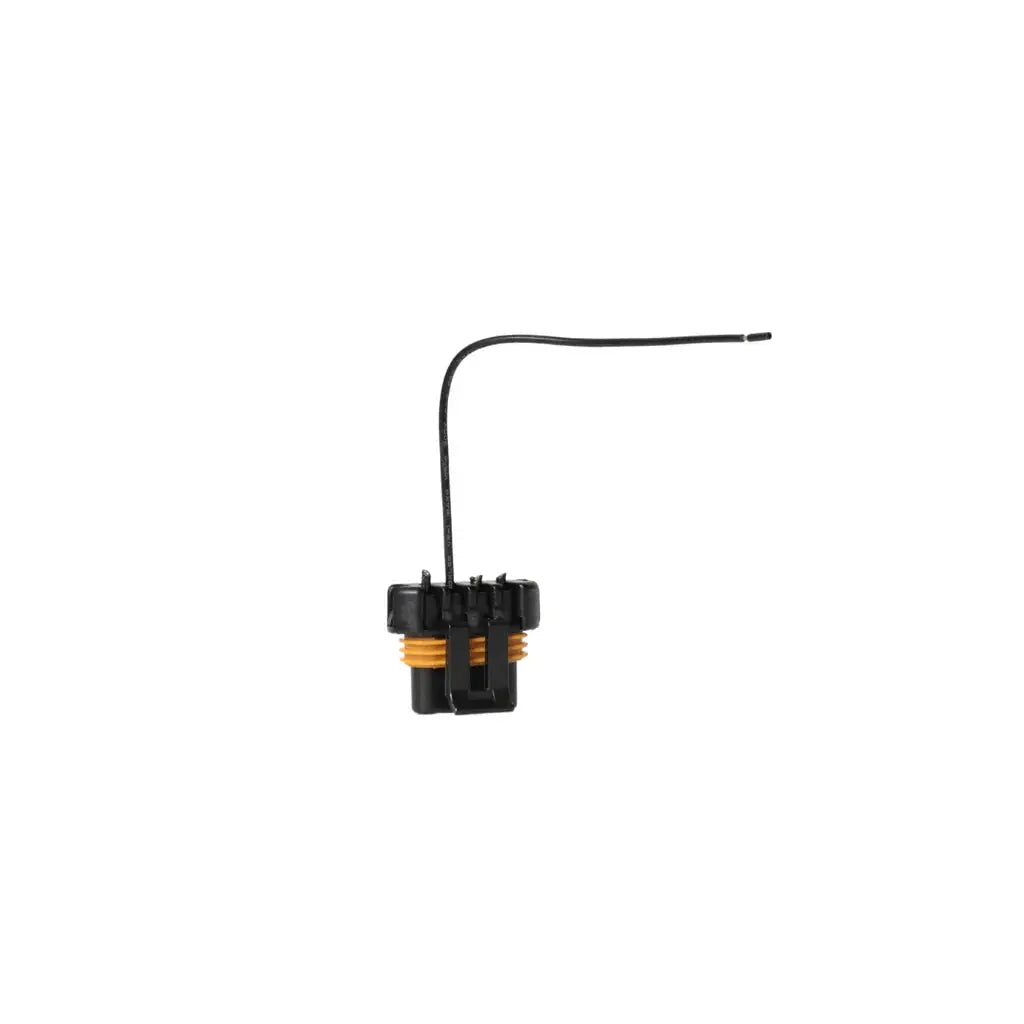

    • One Wire Connection — Connect to any ignition-switched 12V+ source to activate
    • High-Output Performance — Built for car audio, marine, racing, and high-demand electrical systems

    Fitment

    • Universal Fit

    Notes

    • This alternator uses a one wire connection — it is not plug-and-play with your factory harness

    Pro Tip: Always upgrade your ground and charge wires when installing a high-output alternator to get the full benefit of the increased amperage.

    JS ALTERNATORS OUTPUT CHART
    Model Idle Output Peak Output
    250 Amp 170–190 amps 250–270 amps
    320 Amp 190–200 amps 320–340 amps
    370 Amp 200–220+ amps 370–390 amps
    400 Amp 200–220+ amps 400–420 amps
    Idle output is rated at 800+ rpm for larger amperages; the 250 amp unit performs at lower idle speeds. Output is load dependent. Available amperages vary by application, see the options above.
